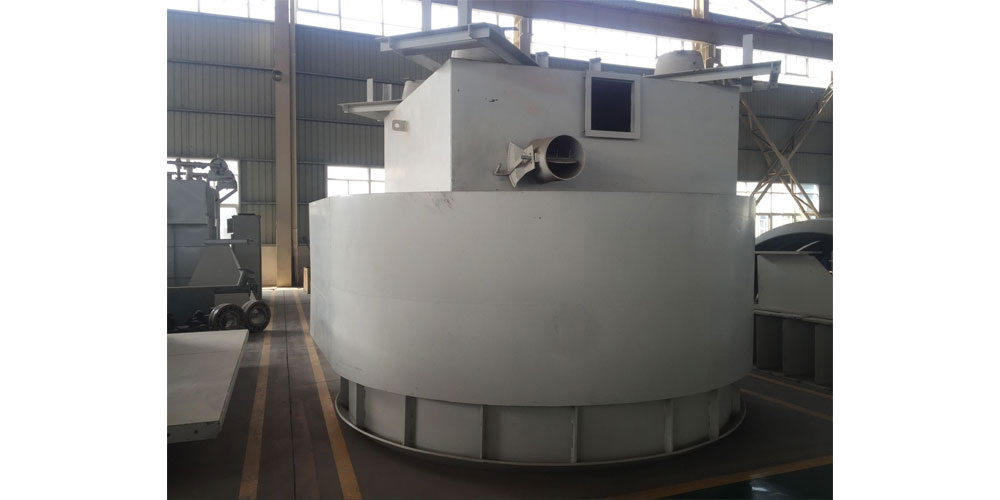

VERTICAL COOLER

OUTPUT

OUR ADVANTAGE

1. Optimum transverse distribution of the material resulting in uniform and efficient cooling of all particle size fractions over the entire width of the cooler,

2. Extremely low overall height, very high thermal efficiency,

3. Robust, low-wear and easy-to-maintain design providing outstanding availability and consistent modular construction.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

Clinker cooler is used for cooling calcined material with high temperature, which is developing based on absorbing foreign advanced technology. It has features such as: high efficiency of heating exchange, less wear out part, no waste gas, flexible placement. It significantly improves the temperature of secondary air inlet kiln and reduce energy consumption. So vertical cooler is widely used in the calcination system of building material, chemical engineering industries.

Model	Effective Size of Main Body	Height of Main Body（m）	Capacity（t/d）	Feeding Size（mm）
LSF-3.7×3.5	3.7×3.7	3.5	200～400	8～45
LSF-4.0×3.5	4.0×4.0	3.5	600～800	8～45

It is consist of kiln head hood, kiln outlet sealing, grate device, dump chute, main body,bottom cooling air chamber, wind cap, vibrating discharge device, discharge funnel.
