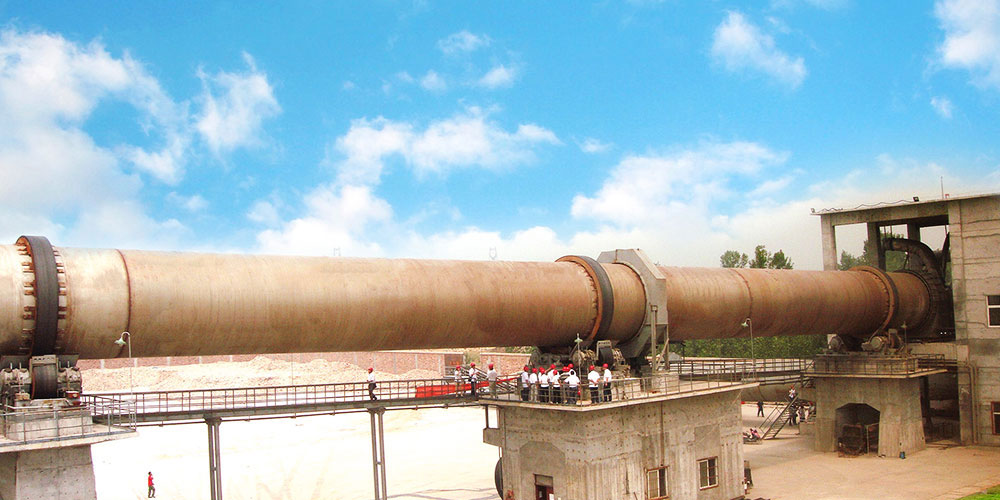

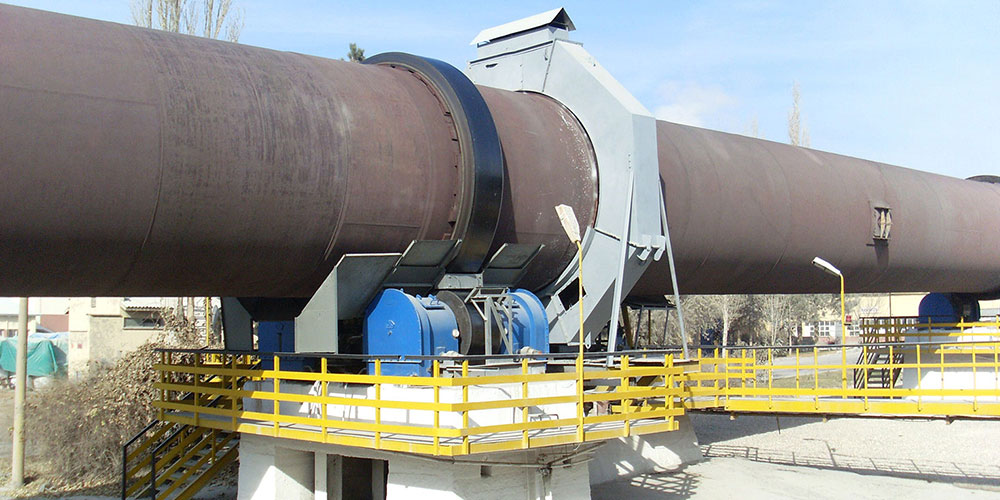

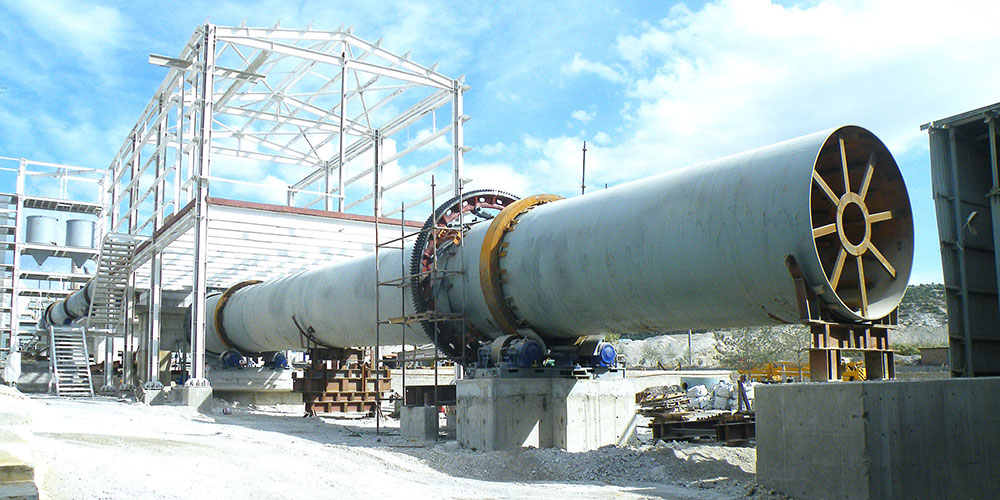

Rotary kiln is a kind of thermal equipment calcines lump, bulk and slurry materials. It is widely used in cement & construction, non-ferrous metals, lime, ferrous metals, refractory materials, industrial chemicals, paper making industries etc.

Model	Capacity （t/h）	Speed (rpm)	Slope (%)	Support No.	Gearbox	Motor model	Power (kw)	Remark
Ø1.6×32m	2	0.58-2.85	4	3 set	ZQ75-50	YCTZ50-4A	18.5
Ø1.6/1.9×36m	2.5~3	0.53-1.59	4	3 set	ZQ110-7	YCTZ50-4B	22
Ø1.9×39m	3~3.5	0.53-1.59	4	3 set	ZQ125-7	YCT315-4A	37
Ø2.2×38m	5~6	0.214-1.64	3.5	3 set	Main ZS125-5-II	Main YCT315-4A	37	★
					Auxiliary ZQ40-40	Auxiliary Y112M-4	4
Ø2.2×45m	4~5	0.214-1.64	3.5	3 set	Main ZS125-5	Main YCT315-4B	45
					Auxiliary ZQ40-40	Auxiliary Y112M-4	4
Ø2.5×40m	6~7	0.62-1.5	3.5	3 set	Main ZS165-5	Main YCT355-4A	55	★
					Auxiliary ZS50-1	Auxiliary Y160M-6	7.5
Ø2.5×50m	5~6	0.62-1.5	3.5	3 set	Main ZS165-5	Main YCT355-4A	55
					Auxiliary ZS50-1	Auxiliary Y160M-6	7.5
Ø2.8×43m	7~8	0.62-1.5	3.5	3 set	Main ZS165-6	Main YCT355-4B	75	★
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø2.8×55m	6~7	0.62-1.5	3.5	3 set	Main ZS165-6	Main YCT355-4B	75
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3×50m	9~10	0.5-1.5	3.5	4 set	Main ZS165-3	Main ZSN-280-11B	125	★
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3×60m	7~8	0.5-1.5	3.5	4 set	Main ZS165-3	Main ZSN-280-11B	125
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3.2×53m	10~12	0.4-1.5	3.5	3 set	Main ZL130-16	Main ZSN4-280-11B	125	★
					Auxiliary ZL50-10	Auxiliary Y180L-4	22
Ø3.2×64m	8~10	0.4-1.5	3.5	3 set	Main NZS995-28VBR	Main ZSN4-280-21B	160
					Auxiliary ZL50-9-2	Auxiliary Y180L-6	15
Ø3.5×70m	12~14	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSN-315-072	250
					Auxiliary ZSY180-31.5	Auxiliary Y180L-4	22
Ø3.6×55m	14~16	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSYN-315-072	250	★
					Auxiliary ZL65-16	Auxiliary Y180L-4	22
Ø3.8×58m	18~20	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSN315-072	250	★
					Auxiliary ZL50-14	Auxiliary Y180L-4	22
Ø4.0×60m	104	0.4-1.5	3.5	3 set	Main ZSY630-35.5	Main ZSN4-355-092	315	★
					Auxiliary ZL65-16	Auxiliary Y200L-4	30

1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2. Catch wheel: including two kinds of mechanical wheel and hydraulic pressure.
3. Gears: single or double. Control the rotating speed by variable motor, DE machine and frequency variable motor. Be reliable, energy saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple. Replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.
6. Kiln head hood: including stationary type and flexible type.
