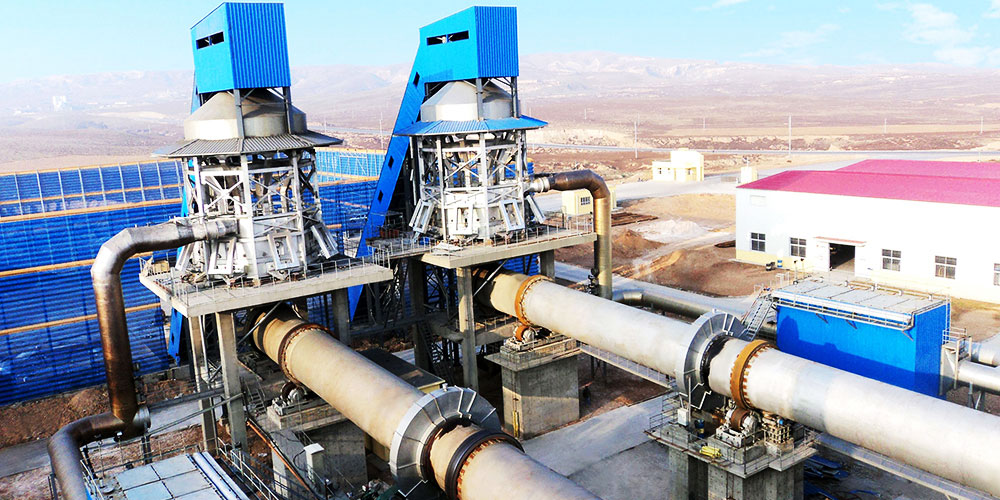

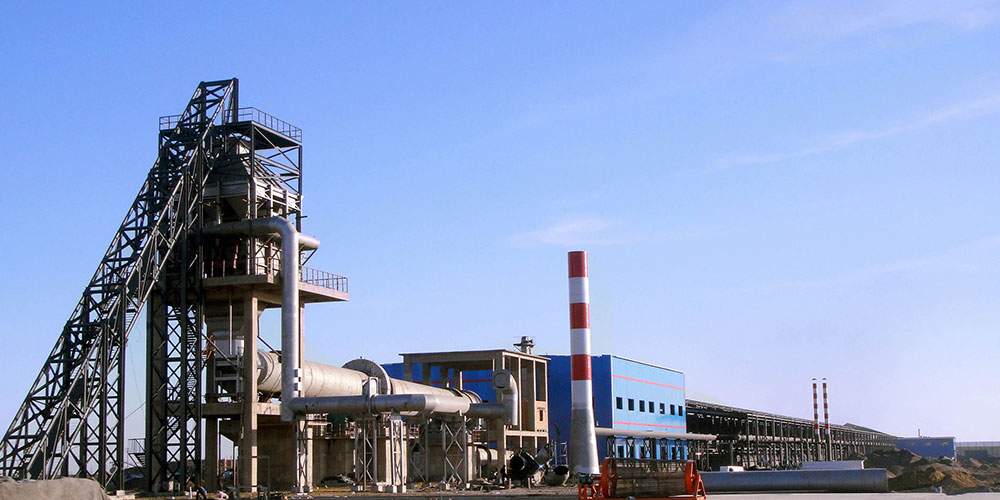

Magnesium rotary kiln is designed according to dolomite calcination characters and Pidgeon process requirement. That is the key equipment in the calciantion process. The dolomite produced by rotary kiln with stable quality, high activity and low ignition loss that can make higher magnesium extraction rate and silicon utilization rate to save running cost. The rotary kiln is the most suitable equipment for produce magnesium. The new type energy-saving rotary kiln designed by ZK Corp. has own patent and formed dolomite calcination standard for magnesium industry in China.

Model	Capacity （t/h）	Speed (rpm)	Slope (%)	Support No.	Gearbox	Motor model	Power (kw)	Remark
Ø1.6×32m	2	0.58-2.85	4	3 set	ZQ75-50	YCTZ50-4A	18.5
Ø1.6/1.9×36m	2.5~3	0.53-1.59	4	3 set	ZQ110-7	YCTZ50-4B	22
Ø1.9×39m	3~3.5	0.53-1.59	4	3 set	ZQ125-7	YCT315-4A	37
Ø2.2×38m	5~6	0.214-1.64	3.5	3 set	Main ZS125-5-II	Main YCT315-4A	37	★
					Auxiliary ZQ40-40	Auxiliary Y112M-4	4
Ø2.2×45m	4~5	0.214-1.64	3.5	3 set	Main ZS125-5	Main YCT315-4B	45
					Auxiliary ZQ40-40	Auxiliary Y112M-4	4
Ø2.5×40m	6~7	0.62-1.5	3.5	3 set	Main ZS165-5	Main YCT355-4A	55	★
					Auxiliary ZS50-1	Auxiliary Y160M-6	7.5
Ø2.5×50m	5~6	0.62-1.5	3.5	3 set	Main ZS165-5	Main YCT355-4A	55
					Auxiliary ZS50-1	Auxiliary Y160M-6	7.5
Ø2.8×43m	7~8	0.62-1.5	3.5	3 set	Main ZS165-6	Main YCT355-4B	75	★
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø2.8×55m	6~7	0.62-1.5	3.5	3 set	Main ZS165-6	Main YCT355-4B	75
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3×50m	9~10	0.5-1.5	3.5	4 set	Main ZS165-3	Main ZSN-280-11B	125	★
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3×60m	7~8	0.5-1.5	3.5	4 set	Main ZS165-3	Main ZSN-280-11B	125
					Auxiliary ZS50-1	Auxiliary Y160L-6	11
Ø3.2×53m	10~12	0.4-1.5	3.5	3 set	Main ZL130-16	Main ZSN4-280-11B	125	★
					Auxiliary ZL50-10	Auxiliary Y180L-4	22
Ø3.2×64m	8~10	0.4-1.5	3.5	3 set	Main NZS995-28VBR	Main ZSN4-280-21B	160
					Auxiliary ZL50-9-2	Auxiliary Y180L-6	15
Ø3.5×70m	12~14	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSN-315-072	250
					Auxiliary ZSY180-31.5	Auxiliary Y180L-4	22
Ø3.6×55m	14~16	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSYN-315-072	250	★
					Auxiliary ZL65-16	Auxiliary Y180L-4	22
Ø3.8×58m	18~20	0.4-1.5	3.5	3 set	Main ZSY500-40	Main ZSN315-072	250	★
					Auxiliary ZL50-14	Auxiliary Y180L-4	22
Ø4.0×60m	104	0.4-1.5	3.5	3 set	Main ZSY630-35.5	Main ZSN4-355-092	315	★
					Auxiliary ZL65-16	Auxiliary Y200L-4	30

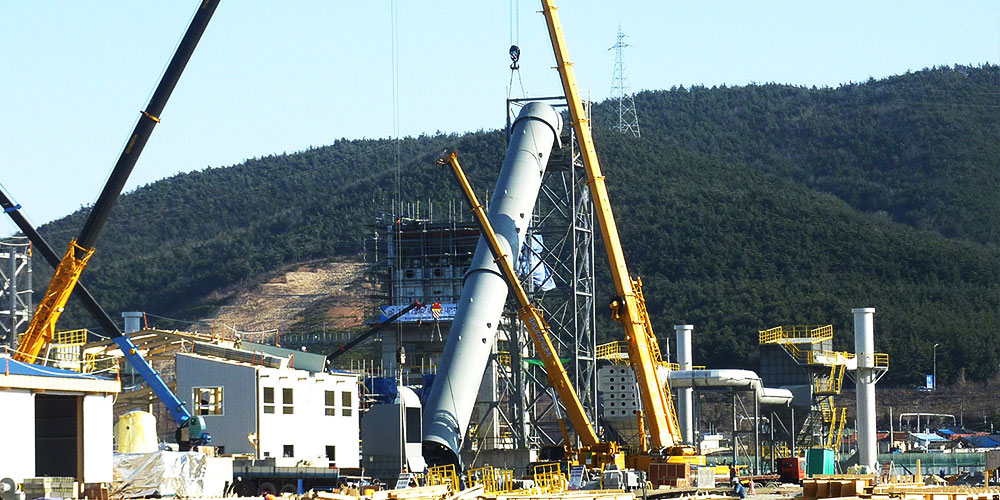

Magnesium rotary kiln is mainly compose of driving device, supporting roller, catching roller, cylinder, kiln inlet, kiln outlet and sealing device.
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.
3. Low speed unloading rotation device is designed for easy installation and commissioning. It also can guarantee unloading rotation operation during maintenance of main driving system or other emergency situation. This design can prevent cylinder from bending and deforming during the temperature is cooling down.
4. Mechanical or hydraulic catching roller is optional according to different type of rotary kiln. Both them have high accuracy and reliability, and also make sure evenly attrition of outer circle of supporting roller and tyre at the direction of complete width.
5. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.
