OUR ADVANTAGE

1. According to the character of limestone and its calcination requirement, the structure of kiln inlet and outlet sections has been optimized. It can resolve the problem of material returning back to kiln inlet and the leakage of dust.

2. Evenly heating for limestone, low rate of less calcination and over calcination. Especially suitable for the high activity lime for steel making.

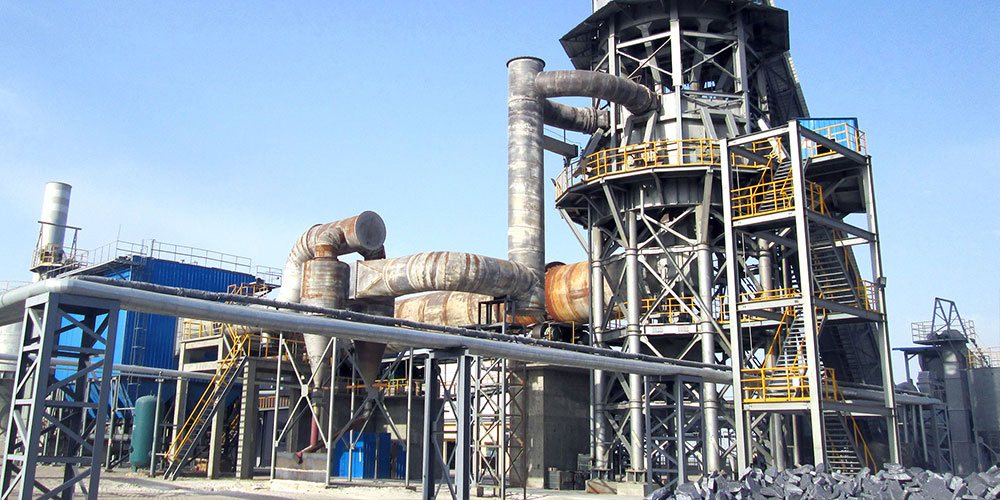

3. Technical configuration is optional: matched vertical preheater can use the high temperature from rotary kiln to preheating the limestone from room temperature to decomposition condition; matched vertical cooler can cooling down the high temperature of lime in the shortest time, and process can increase the activity of lime and also easy for transportation and storage.

Lime rotary kiln is used to produce quicklime through the calcination of limestone (calcium carbonate). Lime rotary kiln is specialized design for production of active lime.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

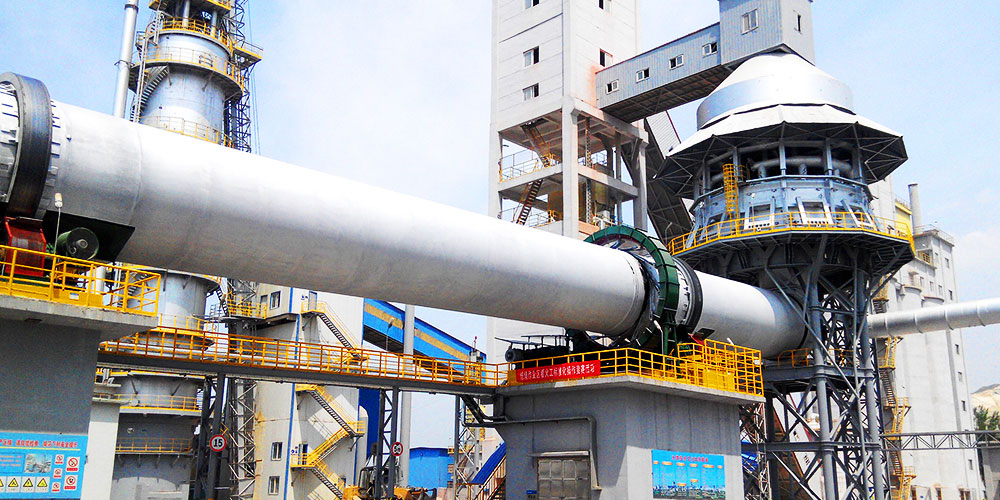

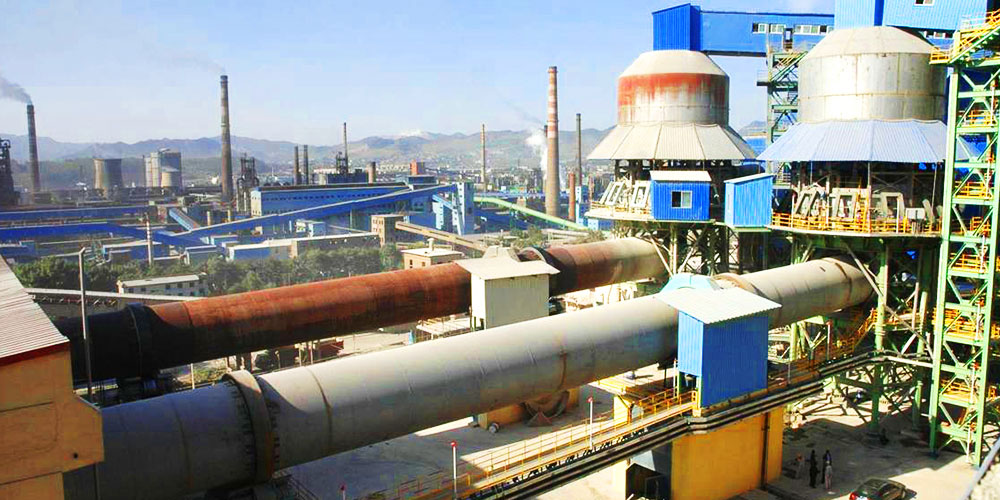

This type of kiln can work with vertical preheater and vertical cooler to achieve the advantages like high use ratio of raw materials, complete calcination, even quality, good quality lime, high capacity output, environmental and energy saving, simple operation and longer working life. This kiln is very suitable for limestone calcination for industries like metallurgy, chemical, construction materials and etc.

Size	Capacity（t/d）	No. of Supporter	Reducer	Motor	Power (kW)
Ø2.2×38m	120	3sets	ZS125-5	YVF₂-225M-4	45
Ø2.5×40m	150	3sets	ZS145-5	YVF₂-250M-4	55
Ø2.8×43m	200	3sets	ZS165-6	YVF₂-280S-4	75
Ø3.0×50m	230	3sets	ZS165-3	YVF₂-280M-4	90
Ø3.2×50m	250	3sets	ZL130-16	YVF₂-315L2-6	132
Ø3.6×55m	400	3sets	ZSY560-63	YVF₂-355M1-6	160
Ø3.8×58m	500	3sets	ZSY560-63	YVF₂-355M2-6	185
Ø4.0×60m	600	3sets	ZSY630-35.5	YVF₂-355M4-6	200
Ø4.3×64m	800	3sets	ZSY630-35.5	YVF₂-355L3-6	250

1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2. Catch wheel: including two kinds of mechanical wheel and hydraulic pressure.
3. Gears: single or double. Control the rotating speed by variable motor, DE machine and frequency variable motor. Be reliable, energy saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple. Replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.
6. Kiln head hood: including stationary type and flexible type.
