Capacity: 6-50 (t/h)
Specification and model: ZKRM1500S - ZKRM2800S
Specific surface area of slag powder: ≥ 420m2/kg
Application: Grinding Ground granulated blast furnace flag
1. High grinding efficiency and low power consumption;
2. Low metal consumption per unit product;
3. The process flow is simple, and the functions of material grinding, drying, and powder selection are completed simultaneously;
4. Small footprint, compact layout, lightweight system equipment, and low investment in civil construction.

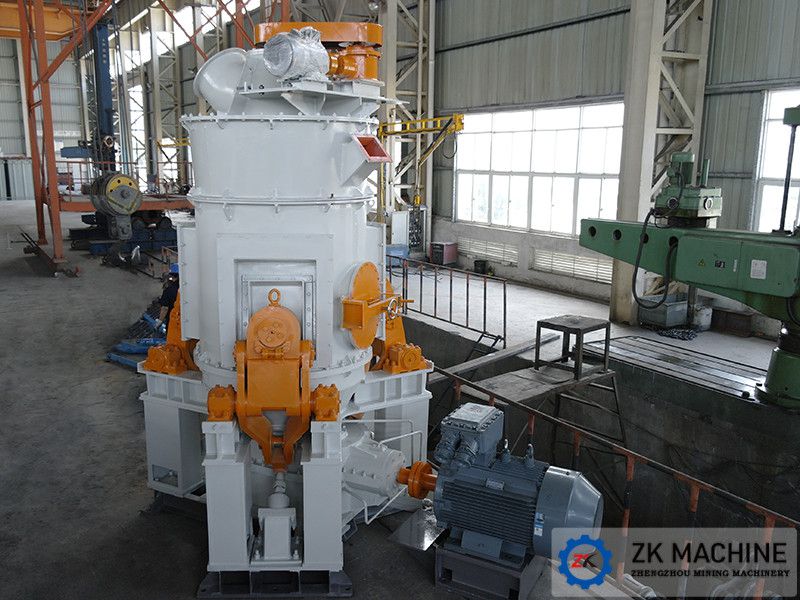

ZKRM Vertical Roller Mill is an energy saving, high efficient, environmental friendly drying and grinding equipment, which has the function of drying, grinding, powder separating and conveying at the same time.Widely used in large-scale material grinding and ultrafine grinding processing in industries such as cement chemical, coal, and power.
Slag micro powder is a ultrafine powder obtained by grinding blast furnace water slag, which has ultra-high activity and is used as a high-quality admixture for cement and concrete. It is a new type of green building material. The slag powder vertical mill is a specialized equipment for preparing slag powder.
|
ZKRM Specification and technical parameter of Slag Vertical Mill |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Model |
Capacity (t/h) |
Annual output (10,000 tons/year) |
Grinding disc geometric diameter (mm) |
Grinding disc track diameter(mm) |
Feeding size (mm) |
Slag moisture (%) |
Product specific surface area (m2/kg) |
Product specific surface area (m2/kg) |
Main motor power (kW) |
|
ZKRM1500S |
6-8 |
5 |
2180 |
1500 |
<50 |
<12 |
≥420 |
<1 |
280 |
|
ZKRM1700S |
10-12 |
8 |
2400 |
1700 |
<50 |
<12 |
≥420 |
<1 |
400 |
|
ZKRM1900S |
15-18 |
10 |
2680 |
1900 |
<50 |
<12 |
≥420 |
<1 |
500 |
|
ZKRM2200S |
25-28 |
15 |
2900 |
2200 |
<50 |
<12 |
≥420 |
<1 |
800 |
|
ZKRM2400S |
35-40 |
20 |
3140 |
2400 |
<50 |
<12 |
≥420 |
<1 |
1250 |
|
ZKRM2800S |
45-50 |
30-35 |
3300 |
2800 |
<50 |
<12 |
≥420 |
<1 |
1600 |
1.The slag sent by the belt conveyor is fed into the vertical mill by the screw feeder, and is squeezed and ground by the grinding roller on the rotating grinding disc.
2.The ground material is then sent to the powder selection machine located at the upper part of the vertical mill by hot air, which rises to carry air, for sorting into coarse powder and fine powder;
3.Fine powder is collected by a bag dust collector and sent to the finished product system through conveying equipment such as a chute and elevator;
4.The coarse powder falls on the grinding disc and is ground again.
5.A portion of the coarse powder is discharged from the vertical mill and sent back to the vertical mill for further grinding through equipment such as belt type iron remover, bucket elevator, and belt conveyor.
6.The exhaust gas is removed by the bag filter and discharged into the atmosphere through the exhaust fan through the chimney.
7.The system drying heat source is provided by a hot air stove.
