Capacity: 6-55 T/H
Applied material: Limestone Powder, Ultra-Fine Powder, Calcium Powder, Desulfurization Powder
Configuration:Jaw crusher, grinding mill, bucket elevator, magnetic vibrating feeder, transmission gear, main engine.
Applied material: Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, phosphate rock, etc.
1. Ultra-fine powder processing,the smallest size can reach 2500 mesh；
2. Safe and reliable operation in grinding cavity；
3. Environmental protecting,less pollution；
4. Electrical system adopts centralized control, milling workshop basic enable unmanned operation. Compared with other milling equipment, through screening rate is 99%.
Powder grinding plant is also called powder making plant, which is widely used for the powder making in mining, power, chemical industry, building materials, metallurgy, refractory materials, desulfurization of power plant, asphalt mixing station and highway industry, and the product size is adjustable in the range of 20 – 3250 meshes.
ZK Machinery can not only provide powder grinding plant with wide selection ranges, reasonable matching, reliable quality and high performance price ratio for customers, but also offer the overall design and construction scheme of grinding operation as well as the turnkey project of the grinding field.
The Configuration of Powder Grinding Plant:

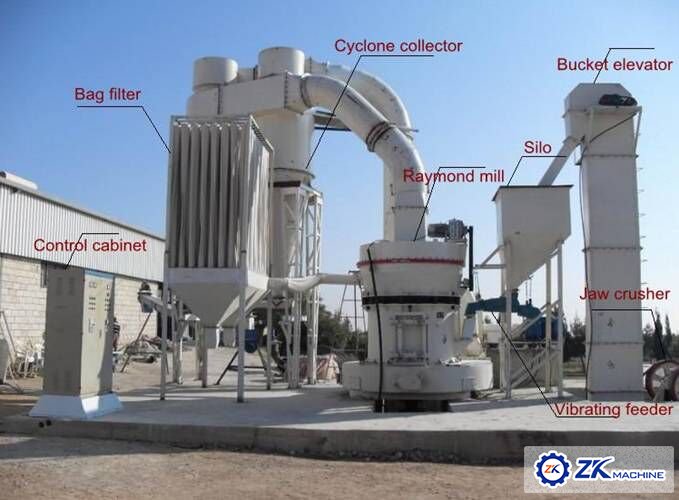

Powder grinding plant is usually composed of jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding machine motor, analysis machine (powder separator), auxiliary equipment, blower, centralized electronic device. It also can be configured with micro powder mill, high pressure grinding mill, ultrafine mill, Raymond mill, tricyclic medium-speed micro powder mill or vertical mill according to the different needs of customers.
Application Ranges of Powder Grinding Plant:
It is often used for the grinding and processing of materials in metallurgical, building materials, chemical industry and mining industry, which is suitable for feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramic, bauxite, manganese ore, phosphate rock, red iron oxide, quartz sand, cement clinker, activated carbon, coal gangue, clay, gypsum, silicon carbide, refractory materials and other non flammable and explosive mineral powder materials with below level 8 Mohs hardness and less than 6% humidity.
Technical Parameter (Limestone Ultra-Fine Powder)
| Model | Capacity (t/h) | Geometric diameter of grinding disc (mm) | Grinding disc track diameter (mm) | Feeding size (mm) | Moisture of input material (%) | Product fineness | Product moisture (%) | main motor power (kW) |
| ZKRM1100L | 6-9 | 1520 | 1100 | ≤20 | <5 |
325 Mesh（44µm） 90% passed |
≤1% | 132 |
| ZKRM1300L | 12-13 | 1870 | 1300 | ≤25 | <5 | ≤1% | 200 | |
| ZKRM1500L | 14-20 | 2180 | 1500 | ≤35 | <5 | ≤1% | 280 | |
| ZKRM1700L | 18-25 | 2400 | 1700 | ≤35 | <5 | ≤1% | 355 | |
| ZKRM1900L | 25-30 | 2680 | 1900 | ≤40 | <5 | ≤1% | 450 | |
| ZKRM2200L | 30-40 | 2900 | 2200 | ≤40 | <5 | ≤1% | 560 | |
| ZKRM2400L | 40-50 | 3140 | 2400 | ≤40 | <5 | ≤1% | 710 | |
| ZKRM2800L | 50-55 | 3300 | 2800 | ≤45 | <5 | ≤1% | 900 |
