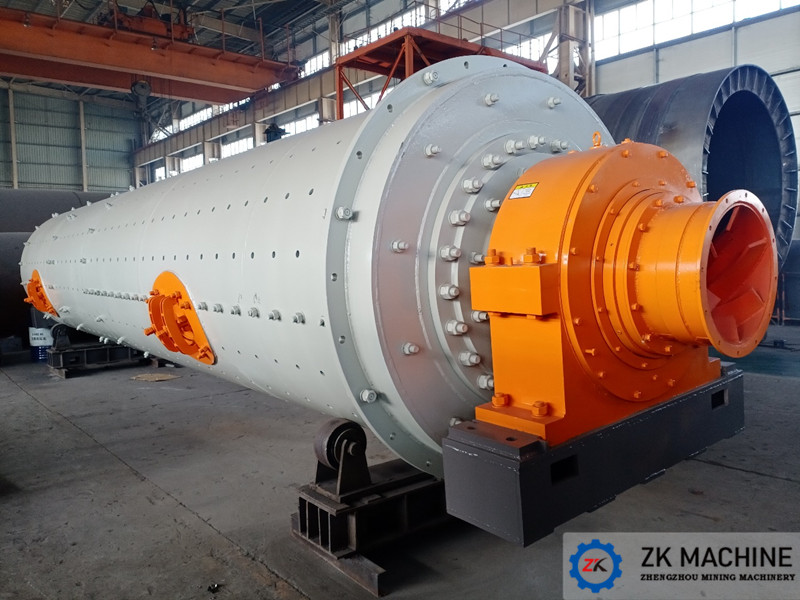

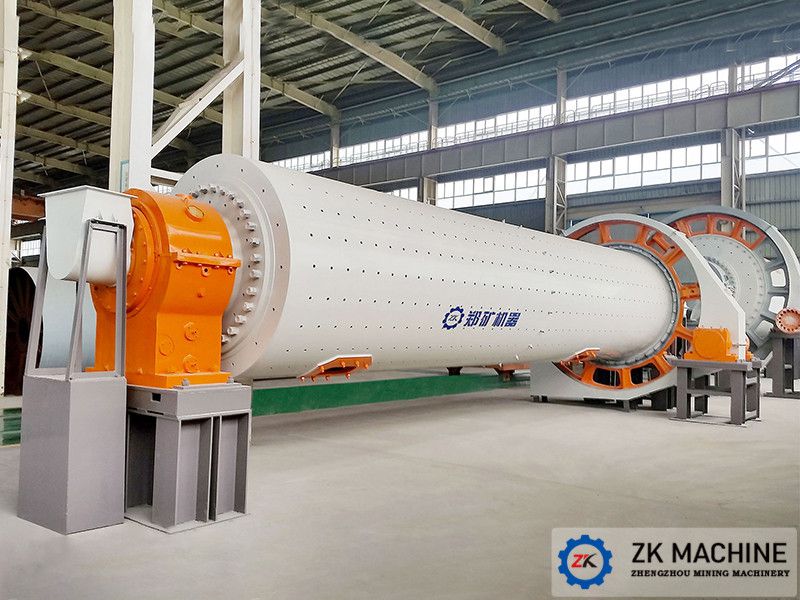

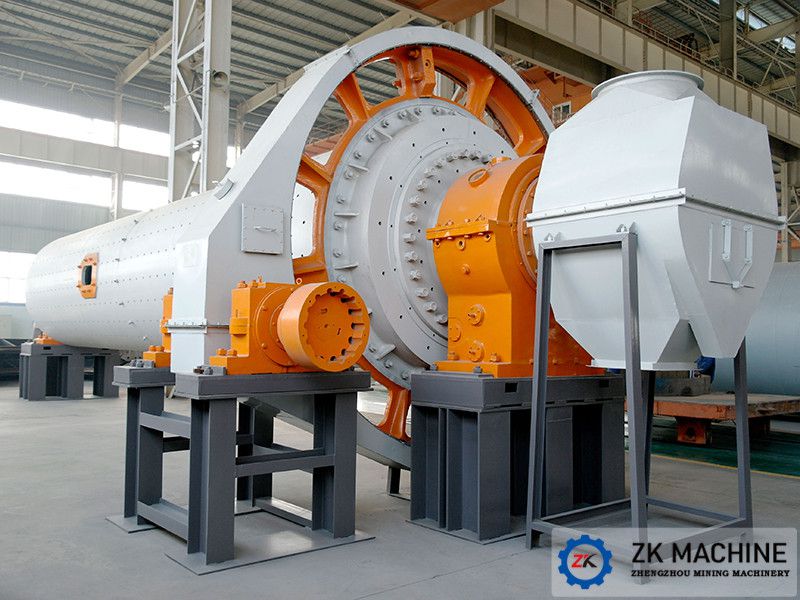

Model: Limestone Ball Mill
Application: Limestone Grinding Plant,Limestone Production Plant
Capacity: 1-40 (t/h)
Output Size: 30-1000 Mesh
1. High purity of CaO;
2. High automation process;
3. This system adopts negative operation to avoid;
4. It can produce lime powder with different fineness by adjusting the system airflow and classifier's rotating speed.
Lime Grinding Mill (Calcium Carbonate Grinding Plant) has a simple process flow, high milling efficiency and stable finished product quality. The whole limestone grinding production line mainly includes crusher, hoist, automatic feeder, grinding host, classifier, power unit, pipeline device, dust removal device, electric control system, storage hopper or discharge valve, etc. It also includes a grinding roller assembly, a plum blossom frame assembly, a grinding roller, a grinding ring, a blade holder, a blade, a cover cylinder, and the like.
|
Specification (m) |
Capacity (t/h) |
Rotating speed (r/min) |
Grinding body (t) |
Motor |
Reducer |
Weight (t) |
||
|---|---|---|---|---|---|---|---|---|
|
Model |
Power (kW) |
Model |
Speed ratio |
|||||
|
Φ1.2x4.5 |
1.4 |
30.3 |
5 |
YR250M-6 |
55 |
ZD30-8 |
4.481 |
13.1 |
|
Φ1.5x5.7 |
3.5 |
26.34 |
11 |
JR127-8 |
130 |
ZD40-7 |
4 |
25 |
|
Φ1.83x6.4 |
6 |
23.9 |
18 |
JR137-8 |
210 |
ZD60-8 |
4.5 |
35.3 |
|
Φ1.83x7 |
6.5 |
24.5 |
20 |
JR138-8 |
245 |
ZD60-8 |
4.5 |
37.2 |
|
Φ2x9 |
9.5-10 |
23.88 |
31 |
JR158-8 |
380 |
ZD70-8 |
4.5 |
58.4 |
|
Φ2.2x6.5 |
11 |
21.4 |
30 |
JRQ158-8/YR630-8 |
380 |
ZD70-9 |
5 |
46.2 |
|
Φ2.2x6.5 |
14 Closed circuit |
21.4 |
30 |
JRQ158-8/YR630-8 |
380 |
ZD70-9 |
5 |
46.2 |
|
Φ2.2x7 |
12 |
21.4 |
30 |
JR158-8 |
380 |
ZD70-9 |
5 |
54 |
|
Φ2.2x7.5 |
13 |
21.4 |
32 |
JR158-8 |
380 |
ZD70-9 |
5 |
63 |
|
Φ2.2x8 |
14 |
21.4 |
37 |
JR158-8 |
380 |
ZD70-9 |
5 |
65 |
|
Φ2.2x9.5 |
14-16 Closed circuit |
21.4 |
43 |
JR1510-8 |
475 |
ZD70-9 |
5 |
70 |
|
Φ2.2x13 |
16 |
20.3 |
55 |
YR630-8/1180/Y100L-8 |
630/11 |
JD630/ZS82.5-7 |
6.3/99.96 |
114.4 |
|
Φ2.4x7 |
14-16 Closed circuit |
20.4 |
36 |
JR1510-8 |
475 |
JDX450 |
5 |
67.9 |
|
Φ2.4x8 |
16-17 Closed circuit |
20.3 |
41 |
JR1512-8/Y180L-8 |
570/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
87.2 |
|
Φ2.4x9 |
17-19 Closed circuit |
20.3 |
46 |
YR630-8/1180/Y100L-8 |
630/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
93.5 |
|
Φ2.4x10 |
18-19 Open circuit |
20.3 |
50 |
YR630-8/1180/Y100L-8 |
630/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
99.4 |
|
Φ2.4x11 |
19-21 Open circuit |
20.3 |
60 |
YR630-8/1180/Y100L-8 |
630/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
99.4 |
|
Φ2.4x12 |
25-27 Closed circuit |
20.3 |
61 |
YR800-8/1180/Y100L-8 |
800/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
112.7 |
|
Φ2.4x13 |
25-27 High fine open circuit |
20.3 |
66 |
YR800-8/1180/Y100L-8 |
800/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
131.1 |
|
Φ2.4x13 |
21-23 Open circuit |
20.3 |
66 |
YR1000-8/1180/Y160M-4 |
1000/11 |
JD630/ZS82.5-7 |
6.333/99.96 |
130.4 |
|
Φ2.6x10 |
25-27 Closed circuit |
20.3 |
60 |
YR800-8/1250 |
800 |
JD800 |
5.5 |
150.5 |
|
Φ2.6x13 |
27-29 |
19.1 |
80 |
YR1000-8/1180/Y160M-4 |
1000/11 |
|
5.5/280 |
169 |
|
Φ3x9 |
33-34 Closed circuit |
19.6 |
79 |
YR1000-8/1180/Y160M-4 |
1000/11 |
NAL108/8/ZS110-19 |
8/280 |
156.5 |
|
Φ3x11 |
35-40 Closed circuit |
18.3 |
97 |
YR1250-8/1430/YR160M-4 |
1250/11 |
YNL1210 |
6.3 |
178 |
|
Φ3x11 |
47 Closed circuit |
17.7 |
97 |
YR118/74-8 |
1250 |
ZI314 |
42.39 |
169 |
|
Φ3x12 |
38-40 Closed circuit |
18.1 |
90 |
YR1250-8/1430 |
1250/11 |
JS1100-00 |
41.27 |
196.26 |
|
Φ3.2x11 |
40 Closed circuit |
18 |
103 |
YR1400-8/1430/Y160M-4 |
1400/11 |
YNL1210/ZS110-19 |
12.35/28 |
186.1 Without motor |
|
Φ3.5x11.5 |
65-70 Closed circuit |
16.5 |
129 |
TYD143/49-8 |
2000 |
ZI370 |
36.239 |
138.3 Without motor |
|
Φ3.5x11.5 |
50 Closed circuit |
17.2 |
126 |
YR1800-8/1430/Y200L2-2 |
1800/37 |
|
43.02/318 |
252.27 |
|
Φ3.8x13 Double slipper |
70-75 Closed circuit |
16.6 |
170 |
YRKK800-8 |
2500 |
JS130/MFY250 |
44.9 |
203 Without motor |
|
Φ3.8x13 |
60-62 |
16.3 |
170 |
YR2500-10/1730 |
2500 |
MFYX250 |
|
286 |
|
Φ4x13 |
65 Closed circuit |
15.95 |
202 |
YRKK900-8 |
2800 |
JS130-8 |
46.7 |
264 |
|
Φ4.2x13 |
85 Closed circuit |
16.3 |
224 |
YRKK900-8 |
3150 |
MFY320 |
47.8 |
250 Without motor |
|
Φ4.2x13 |
85-87 |
16.3 |
224 |
YR1000-8 |
3530 |
JQS3550 |
15.6 |
254 Without motor |
From raw ore to fine powder, in general, Limestone will go through these steps:
1. Picking: removing impurities, improving the quality of raw ore
2. Crushing: Limestone crushing is very important in limestone processing plant, probably crushing to below 30mm
3. Grinding: Limestone grinding is the integral step in limestonestone production process. It produces fine powder for many applications and prepares materials for further processing and beneficiation process, from 80 mesh to 400 mesh according to different demands.
The fine powder that can be adjusted and graded to meet the mesh requirements is collected as a finished product, and the unqualified powder is continuously ground, collected, and packaged.
We offer complete solution for lime grinding plant, clinker grinding plant, bauxite grinding plant, dolomite grinding plant, coal powder grinding plant etc.
