Technical Data

Model: PYB, PYD

Max. feeding size: 50-145 (mm)

Motor power: 30-280 (kW)

Application: iron ore, granite, limestone, quartzite, sandstone, cobblestone, etc.

OUR ADVANTAGE

1. Hydraulic Clearing & Hydraulic Adjustment, high degree of automation to reduce downtime

2. High Productivity & Cost Effective

3. Standard Replacement Parts, Quick & Easy Maintenance

4. The highest crushing force of all the cone crushers, pyramid broken, perfect of product shape;

5. Unbeatable availability and robust design

6. Up to 20% lower power consumption than with other cone crushers

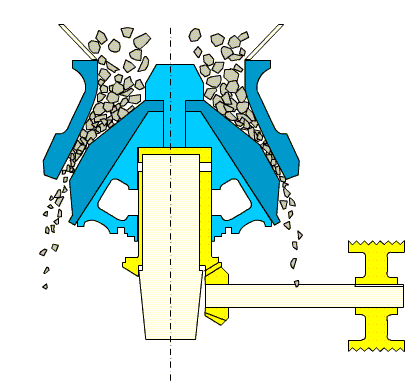

Cone crusher is generally used as a secondary crusher in a crushing circuit. Pre-crushed product (usually 3in minus depending on the cone crusher model) is fed through the top of the cone crusher and flows over the mantle. The vertical cone crusher drive shaft rotates the mantle eccentrically below the concave, or bowl liner, squeezing the product and crushing it between the mantle and concave. Cone crushers are usually run on belt drives driven by an electric motor or diesel engine. Cone crushers are used extensively throughout the aggregate and mineral processing industry.

ZK-Famous cone crusher manufacturer

According to demand on rock cone crushers of customers, it is developed based on laminated crushing principle and conceptual design of “more crushing and less grinding”; thus this new type of cone crusher – Hydraulic cone crusher is integrated with high wobble frequency, optimal cavity shape and reasonable stroke. This series of efficient cone crusher has more reasonable and perfect structure and more advanced technology. As the professional mining machinery manufacturer, Cone crushers are used and welcomed in China cone crusher market and even worldwide.

Model		Diameter of crushing cone(mm)	Max. feeding size (mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Swing frequ-ency of main shaft	Weight (t)	Dimensions (LWH)(mm)
Model		Diameter of crushing cone(mm)	Max. feeding size (mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Swing frequ-ency of main shaft	Weight (t)	Dimensions (LWH)(mm)
PYB	600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD	600	600	35	3-13	12-23	30	356	5.5	2234×1370×1675
PYB	900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ			60	5-20	20-65			11.2	2692×1640×2350
PYD			50	3-13	15-50			11.3	2692×1640×2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ			100	8-25	42-135			25	2790×1878×2844
PYD			50	3-15	18-105			25.3	2790×1878×2844
PYB	1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ			185	10-30	115-320			50.3	3910×2894×3809
PYD			85	5-13	75-230			50.2	3910×2894×3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ			230	10-30	200-580			80	4622×3302×4470
PYD			100	5-15	120-340			81.4	4622×3302×4470

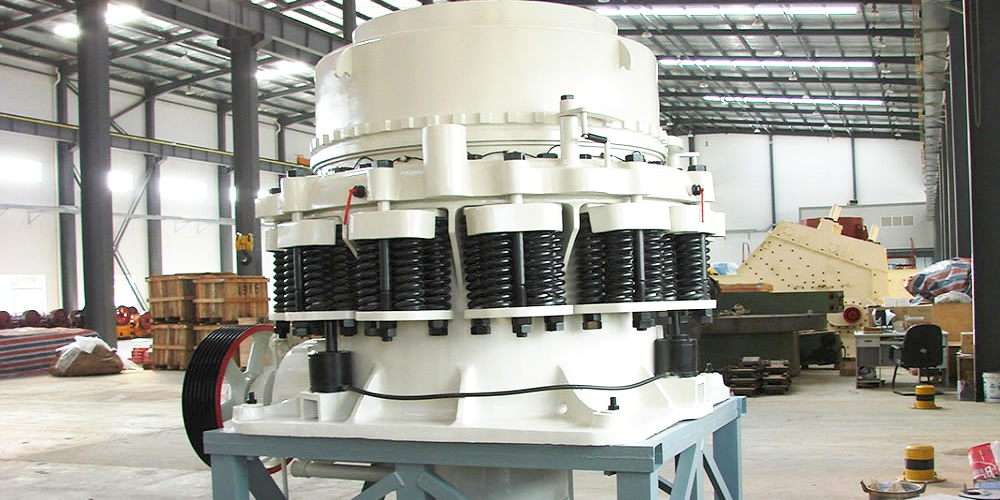

Cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
