Technical Data

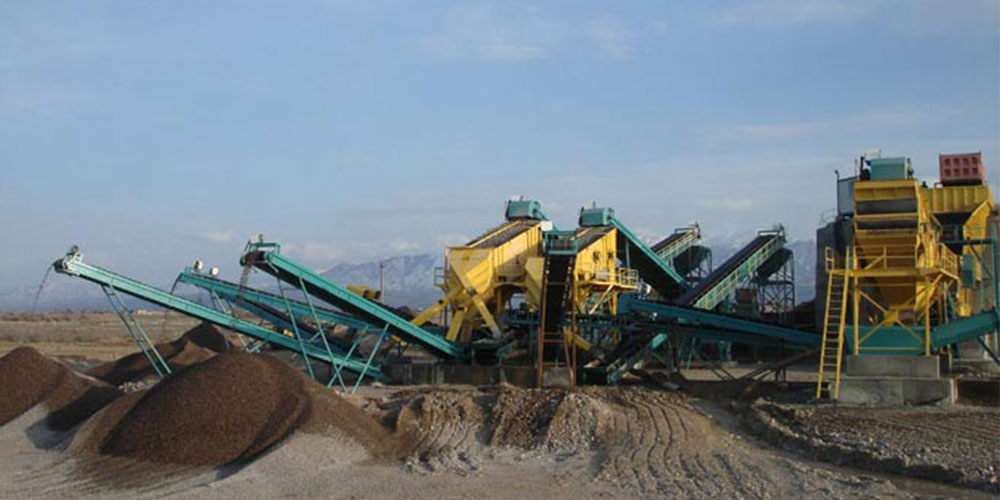

Application: Gold Ore Crushing

Main Equipment: Jaw/Impact/Cone Crusher, Vibrating Screen, Belt Conveyor

Feeding Size: 420mm, 500mm, 600mm

Output Size: 1-50mm

OUR ADVANTAGE

1. Good gravel particle shape, reasonable grade and less grinding power.

2. Equipment investment is 25-50% less than conventional production line, short investment recovery period and significant economic benefit.

3. Automation, high degree of information technology, high production efficiency and less employee;

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

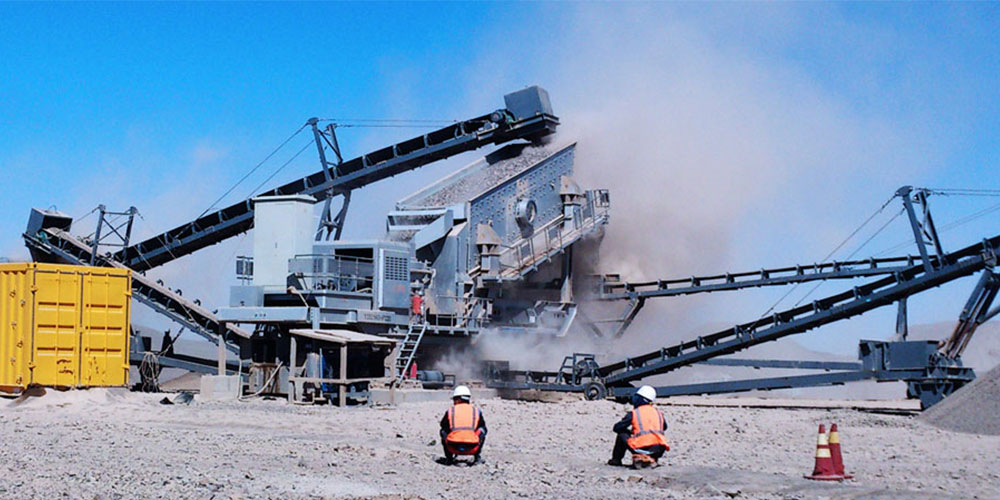

ZK Corp Crusher produces several series ore crushers, of which jaw crusher, impact crusher and mobile crusher fits for processing this ore best. export to South Africa, Zambia, Congo, India, Indonesia, Chile, Argentina and more than 80 countries.

Model	Specification	Inlet size (mm)	Max feeding size (mm)	Capacity (t/h)	Power (kW)	Boundary size (mm)	Weight (t)
Model	Specification	Inlet size (mm)	Max feeding size (mm)	Capacity (t/h)	Power (kW)	Boundary size (mm)	Weight (t)
PF-0807	φ850×700	400×730	300	15～30	30～45	2210×1490×2670	8.1
PF-1007	φ1000×700	400×730	300	30～50	37～55	2400×1558×2670	9.5
PF-1010	φ1000×1050	400×1080	350	50～80	55～75	2400×2250×2820	12.2
PF-1210	φ1250×1050	400×1080	350	70～120	110～132	2690×2338×2890	14.9
PF-1214	φ1250×1400	400×1430	350	130～180	132～160	2690×2688×2890	18.6
PF-1310	φ1300×1050	490×1170	400	80～140	110～160	2780×2478×2855	16.2
PF-1315	φ1320×1500	860×1520	500	160～250	180～260	3096×3273×3067	19.3
PF-1415	φ1450×1500	1145×1520	950	220～450	220～315	3745×3022×3519	27.0
PF-1520	φ1520×2000	830×2050	700	300～550	315～440	3581×3560×3865	36.5

Remarks: The above is only the parameter of PF Series Impact Crusher. If need more information about the screener and conveyors, please view the other columns or contact with us directly.

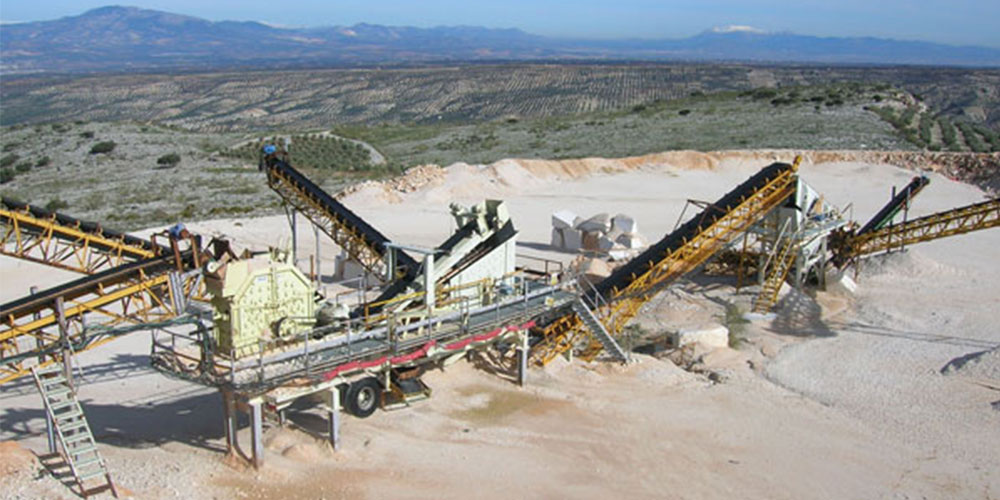

1. Technological Process: Iron ore----- transported by the dump truck ----- Vibrating feeder ----- Jaw crusher (Primary crusher) ----- Spring cone crusher (Secondary crusher) ----- Circular vibrating screen ----- finished product as the customer required
2. Max feeding size: 420mm, 500mm, 600mm
3. Output size: As the clients required (1- 31.5mm)
4. Application: Mining, metallurgy, and chemical industry.
Attention: If the feeding size is smaller than 115mm, 150mm, 200mm, it can be crushed by the spring cone crusher directly, and avoid the primary stage crushing.
