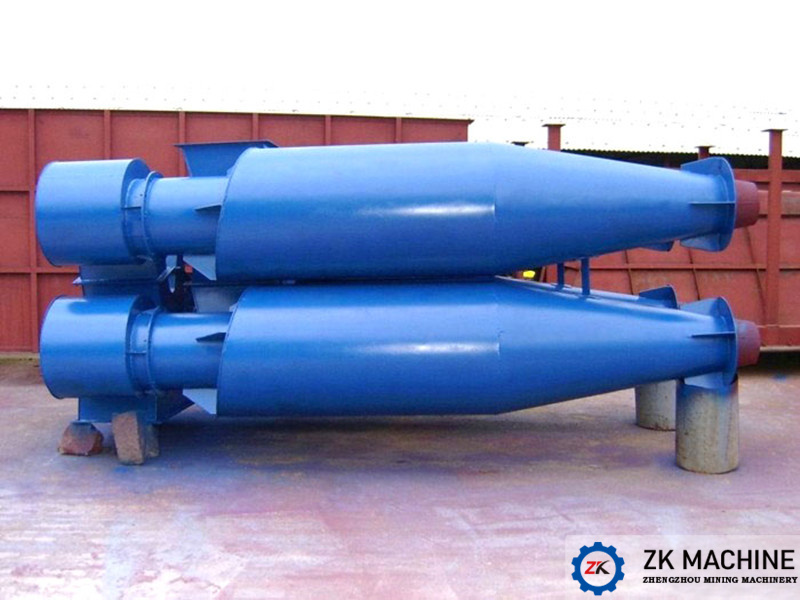

CYCLONE DUST COLLECTOR







Technical Data



Exhaust Gas Volume (m3/h): 1500-105000



Collection efficiency(%): >95



Pressure drop(Pa): <900



Cut diameter: <900



ADVANTAGE

1. Suitable for purification the dust with big density, and particle size above 5 micron; not suitable for purification the dust with strong cohesiveness.



2. No moving parts, easy to management and maintenance.



3. Under the same air volume processing, it small volume, simple structure and low cost.



4. Many set machines work together in parallel with same air volume processing, small volume, simple structure and low cost.



5. It can be resisted 400℃ high temperature, if adopts special high temperature resistance material, it will resist higher temperature than 400℃.



INTRODUCTION

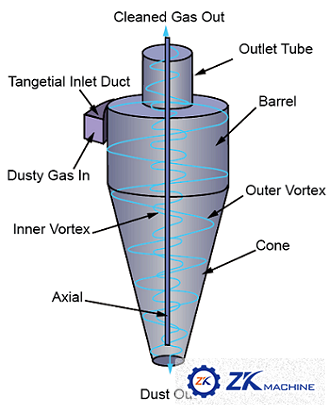

XFCC series cyclone dust collector also called the centrifugal dust collector, it is a dry gas-solid separator device that separates dust powder from air stream by using centrifugal force generated by revolving dust air. It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries, especially suitable for the initial purification for high temperature flue gas.

Cyclone dust collector is easy in structure and manufacturing and low in cost and running cost. It has high filtering efficiency for coarse dust particles that have a diameter more than 5 μm,but it has low filtering efficiency for fine dust particles that have a diameter less than 5 μm(especially fine dust particles with low density). So cyclone dust collector is often used for preliminary treatment on coarse dust powder purification or multi-stage purification.

Application of Cyclone dust collector:
It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries.

SPECIFICATIONS

Specification

XD-Ⅱ-0.5

XD-Ⅱ-1

XD-Ⅱ-2

XD-Ⅱ-4

XD-Ⅱ-6

XD-Ⅱ-10

XD-Ⅱ-20

XD-Ⅱ-35

Boiler(t/h)

0.5

1

2

4

6

10

20

35

Exhaust Gas Volume (m3/h)

1500

3000

6000

12000

18000

30000

60000

105000

Collection efficiency(%)

>95

Pressure drop(Pa)

<900

Cut diameter

3.05

Weight

310

570

960

1900

2910

6100

11750

20300





PROCESS

The high efficientcy clone dust collector is made up of feeding device, classifying device, bottom flow device,over flow device. The feeding device works in way of involute shape. The feedingpipe is rectangle tapered tube, and its extension line transition to feedingbox smoothly. The separate device is made up of cylinder and cone. The heightof cylinder is opted by the proportion, granularity and overflow fineness. The conepart take cone changing technique to guarantee the speed of particles atdeparting point to realize optimizes result. The inner shape of bottom flowdevice is cone and the height of cylinder is extended.





If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8615290898115, or email us at zkeqpt@zkcorp.com.
