1. High production capacity and greatly reducing the comprehensive electricity consumption of powder grinding.
2. Stable performance and easy installation and maintenance.
1
INTRODUCTION
2
SPECIFICATIONS
3
STRUCTURE

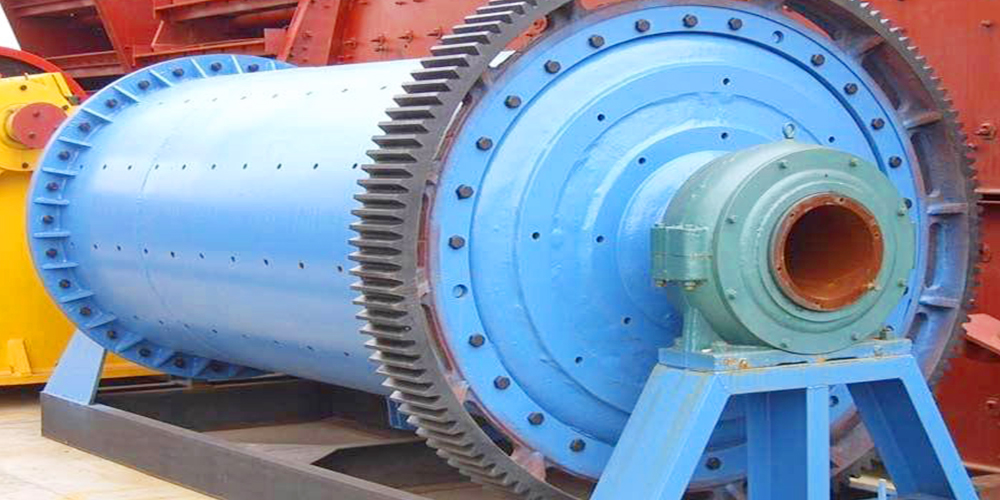

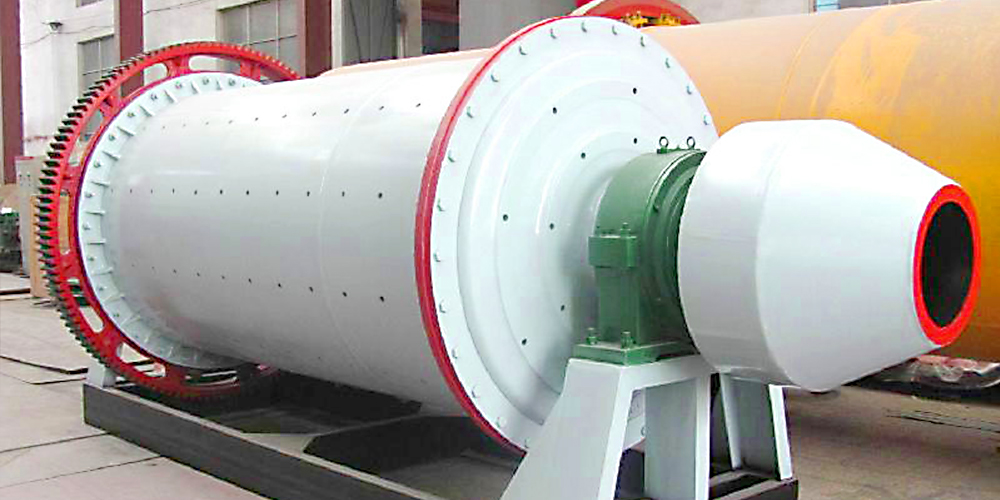

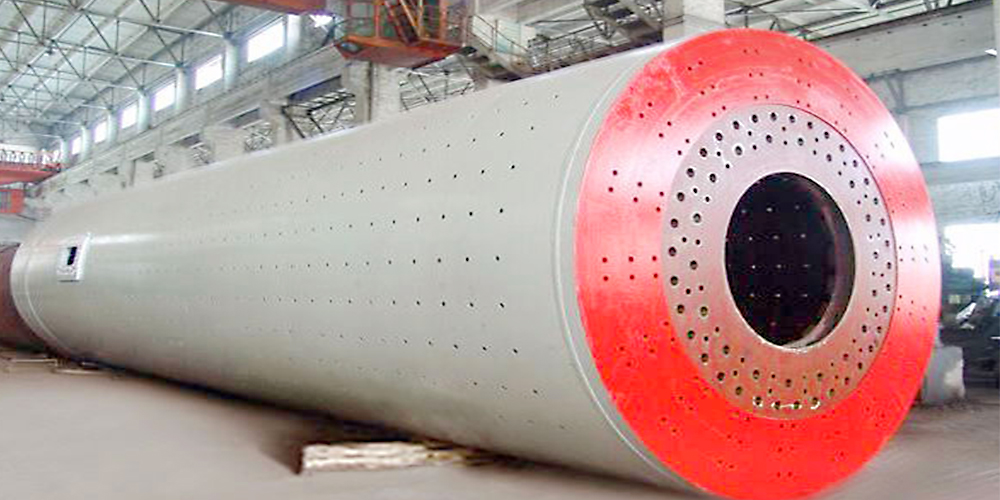

Slag mill adopts high and fine screening and powder grinding technology and there are double-layer partition device, mobile lining board and tailing discharging device with unique structure inside. The inside of the cylinder adopts new type classification lining board and uses micro grinding media for high linearity powder grinding and crushing, thus achieving high production capacity and greatly reducing the comprehensive electricity consumption of powder grinding, and in addition, this equipment has stable performance and easy installation and maintenance.
Number
Specification
(m)
Productivity
(t/h)
Rotating
speed of
cylinder
(r/min)
Rotating
mode
Power
(kw)
Reducer
Weight
(t)
Model
Speed
ratio
1
φ2.2×6.5
18
21.4
Edge
310
ZD70
5
44
2
φ2.4×8
26-28
20.14
Edge
570
ZD80
6.3
90
3
φ2.6×13
11-15
19.7
Edge
1000
JDX800
6.3
137
4
φ2.8×6.5
35
18.65
Edge
630
ZD80
6.3
100
5
φ2.8×10
45-48
18.65
Center
800
MFY80
37.5
160
6
φ3×6.5
37
18.58
Edge
800
JD800
5.6
115
7
φ3×9
40-50
18.58
Edge
1000
JD800B
5.6
132
8
φ3×12
65-75
18
Center
1400
JS110-B-F1
42.22
202
9
φ3.2×13
72-75
17.86
Edge
1400
JDX900
6.3
237
10
φ3.4×7.5
70
16.9
Edge
1000
ZDA-100
6.3
167
11
φ3.5×10
90
16.8
Center
1250
Js110-A
44.1
154
12
φ4.6×7.5+3.5
180
15
Center
2500
---
--
272
13
φ4.6×10.5+3.5
210
---
Center
3550
JQS3550
15.1
360
Slag mill adopts high and fine screening and powder grinding technology and there are double-layer partition device, mobile lining board and tailing discharging device with unique structure inside. The inside of the cylinder adopts new type classification lining board and uses micro grinding media for high linearity powder grinding and crushing, thus achieving high production capacity and greatly reducing the comprehensive electricity consumption of powder grinding, and in addition, this equipment has stable performance and easy installation and maintenance.
