INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

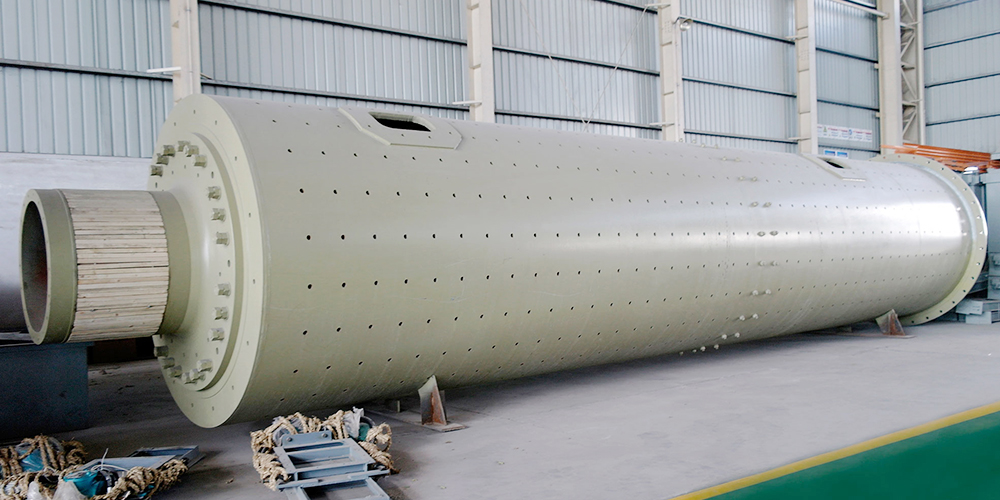

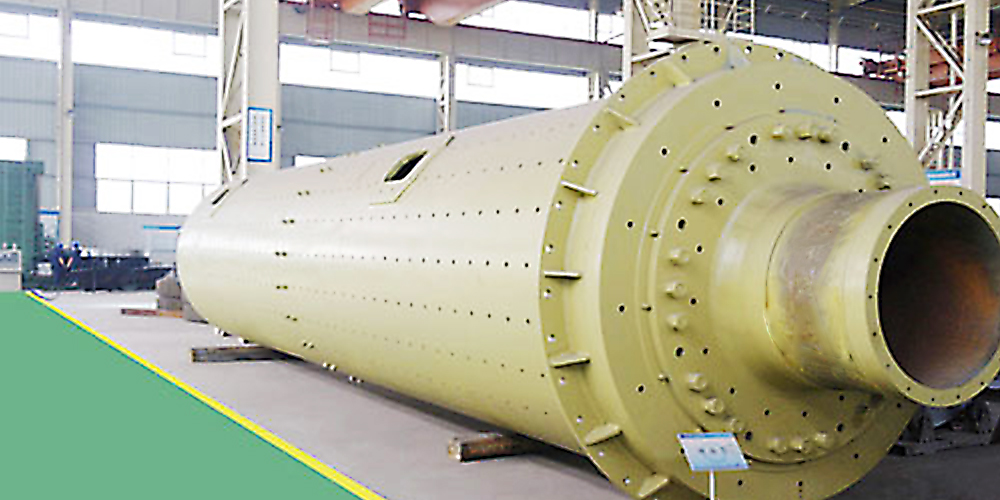

Cement mill is mainly used in grinding of cement finished product and materials, also to the metallurgical, chemical, electricity and other industrial and can be used to open streams, but also to the composition and the separator flow grinding circle. Cement mill has a strong adaptability of materials to production, broken rate large, easy to speed grinding fineness of the product and so on. Ball mill of cement production is capable of dry production and also can be wet. You can simultaneously grinding and drying operation.

Specification	Output (t/h)	Rev (R/min)	Grinding Body(t)	Electromotor		Reducer
				Model	Power(kw)	Model	Ratio of speed
Ф1.2x4.5	1.4	30.3	2	YR250M-6	55	ZD30-8	4.481
Ф1.5x5.7	3.5	26.34	11	JR127-8	130	ZD40-7	4
Ф1.83x6.4	6	23.9	18	JR137-8	210	ZD60-8	4.5
Ф1.83x7	6.5	24.5	20	JR138-8	245	ZD60-8	4.5
Ф2x9	9.5-10	23.88	31	JR158-8	380	ZD70-8	4.5
Ф2.2x6.5	8-9	21.4	30	JRQ158-8/YR630-8	380	ZD70-8	5
Ф2.2x6.5	14	21.4	30	JRQ158-8/YR630-8	380	ZD70-9	5
Ф2.2x7	12	21.4	30	JR158-8	380	ZD70-9	5
Ф2.2x7.5	13	21.4	32	JR158-8	380	ZD70-9	5
Ф2.2x8	11-12	21.4	37	JR158-8	380	ZD70-9	5
Ф2.2x9.5	14-16	21.4	43	JR1510-8	475	ZD70-9	5
Ф2.2x13	16	20.3	55	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.3/99.96
Ф2.4x7	14-16 Closed-circuit	20.4	36	JR1510-8	475	JDx450	5
Ф2.4x8	16-17 Closed-circuit	20.3	41	JR1512-8/Y180L-8	570/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x9	17-1 Closed-circuit	20.3	46	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x10	18-19 Open circuit 20-22 Closed-circuit	20.3	50	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x11	19-21 Open circuit	20.3	60	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x12	25-27Open circuit	20.3	61	YR800-8/1180/Y100L-8	800/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x13	25-27 Open circuit	20.3	66	YR800-8/1180/Y100L-8	800/11	JD630/ZS82.5-7	6.333/99.96
Ф2.4x13	21-23 Open circuit	20.3	66	YR1000-8/1180/Y160M-4	1000/11	JD630/ZS82.5-7	6.333/99.96
Ф2.6x10	25-27 Closed-circuit	20.3	60	YR800-8/1250	800	JD800	5.5
Ф2.6x13	27-29	19.1		YR1000-8/1180/Y160M-4	1000/11		5.5/280
Ф3x9	33-34Open circuit	19.6	79	YR1000-8/1180/Y160M-4	1000/11	NAL108/8/ZS110-19	8/280
Ф3x9	36.5 Open circuit	17.6		YR118/61-8	1000		42.163
Ф3x11	35-40 Open circuit	18.3	97	YR1250-8/1430/YR160M-4	1250/11	YNL1210	6.3
Ф3x11	47Open circuit	17.7		YR118/74-8	1250		42.39
Ф3x12	38-40 Closed-circuit	18.1		YR1250-8/1430	1250/11		41.27
Ф3.2x11	40 Closed-circuit	18	103	YR1400-8/1430/Y160M-4	1400/11	YNL1210/ZS110-19	12.35/28
Ф3.5x11.5	65-70Open circuit	16.5		TYD143/49-8	2-1000		36.239
Ф3.5x11.5	50 Closed-circuit	17.2	126	YR1800-8/1430/Y200L2-2	1800/37	JSX1300A/JMX560	43.02/318
Ф3.8x13Double sliding shoe	70-75 Closed-circuit	16.6		YRKK800-8	2500		44.9
Ф3.8x13	60-62	16.3	170	YR2500-10/1730	2500	MFYX250
Ф4x13	65 Closed-circuit	15.95	202	YRKK900-8	2800	JS130-8	46.7
Ф4.2x13	85 Closed-circuit	16.3	224	YRKK900-8	3150	MFY320	47.8
Ф4.2x13	85-87	16.3	224	YR1000-8	3530	JQS3550	15.6

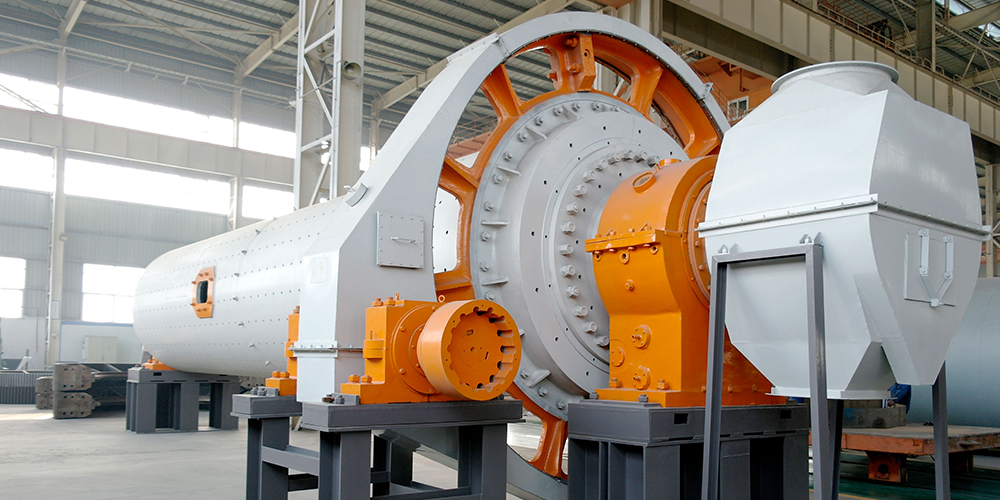

Cement ball mill is mainly consisting of feeding device, big gear, discharge device, cylinder, diaphragm plate, hollow shaft, liner, drive device and other components.
