Batch ball mill is also called intermittent ball mill/ceramic ball mill, intermittent operation of the dry and wet for the fine grinding of feldspar, quartz, clay, ore and other raw materials.

Batch type ball mill (ceramic ball) is mainly used for mixing of the material, grinding, the fineness of the product is uniform, saving power. Both dry grinding, wet grinding can also be. The fineness of the grinding operation, relying on the polishing time control themselves. Motor Auto decompression start to reduce the starting current, and its structure is divided into integral independent.

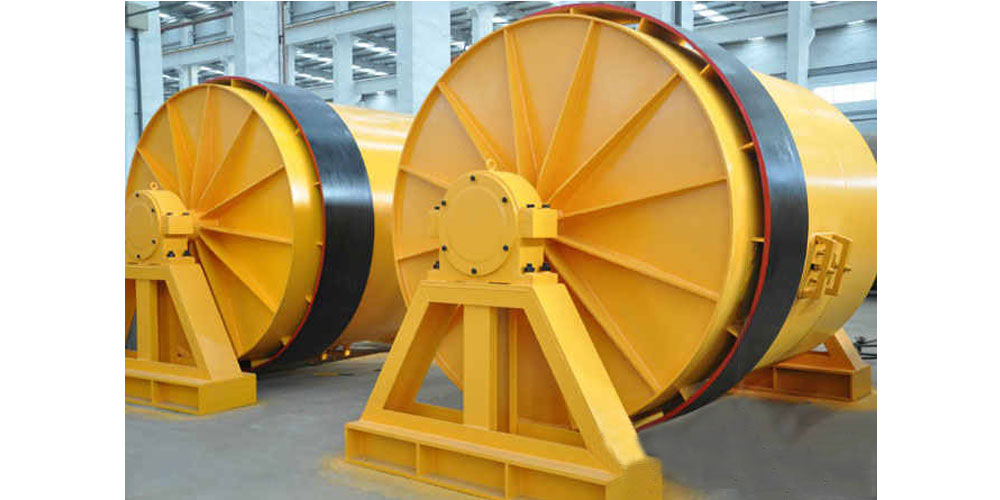

Batch type ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers.

The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.

After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
