OUTPUT

Model: 900*900,1200*2400

Rotary speed (r/min): 40-36

Discharging size(mm): 0.075-0.4

Weight (t): 4.5-12

OUR ADVANTAGE

1. Liner of ball mill is made of high-quality wear resistant material with high strength, wear resistance and long working life.

2. Product fineness is adjustable, uniform and high qualified.

3. Large capacity and crushing ratio, good sealing performance. It can be adapted to different working conditions.

4. High grinding efficiency, low energy consumption

Horizontal Ball Mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, ore dressing of black and nonferrous metals and glass ceramic production industry, for dry and wet powder grinding various ores and other grinding materials.

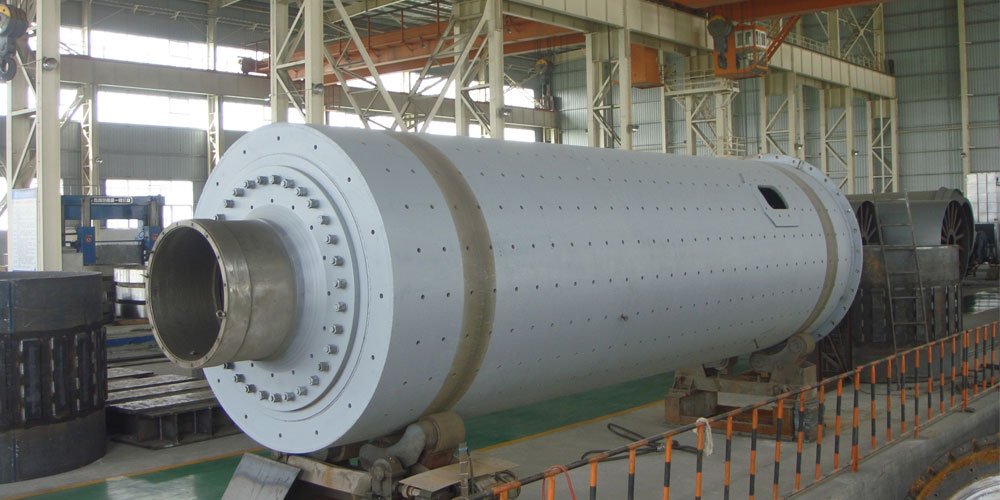

The Ball Mill is a horizontal rotary drum apparatus driven by gears outside. It is a lattice pattern with two storage cells. The raw materials enter into the first cell of the Ball Mill evenly through the quill shaft in charging part. There are step liner palates or wave liner palates in the first cell which have been loaded various steel spheres of different scales. When rotating, the drum causes centrifugal force that brings the steel spheres to a certain height and then the spheres drop to impact and grind the materials. After the rough grinding in the first cell, the qualified partials will enter into the second cell through a single division plate .There are flat palates welded on the inner wall of the second cell, as well as steel spheres. The materials will be further grinded in it and at last the qualified granularities will be discharged through the unload part. Then the whole process is completed.
