OUR ADVANTAGE

1. Suitable for purification the dust with big density, and particle size above 5 micron; not suitable for purification the dust with strong cohesiveness.

2. No moving parts, easy to management and maintenance.

3. Under the same air volume processing, it small volume, simple structure and low cost.

4. Many set machines work together in parallel with same air volume processing, small volume, simple structure and low cost.

5. It can be resisted 400℃ high temperature, if adopts special high temperature resistance material, it will resist higher temperature than 400℃.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

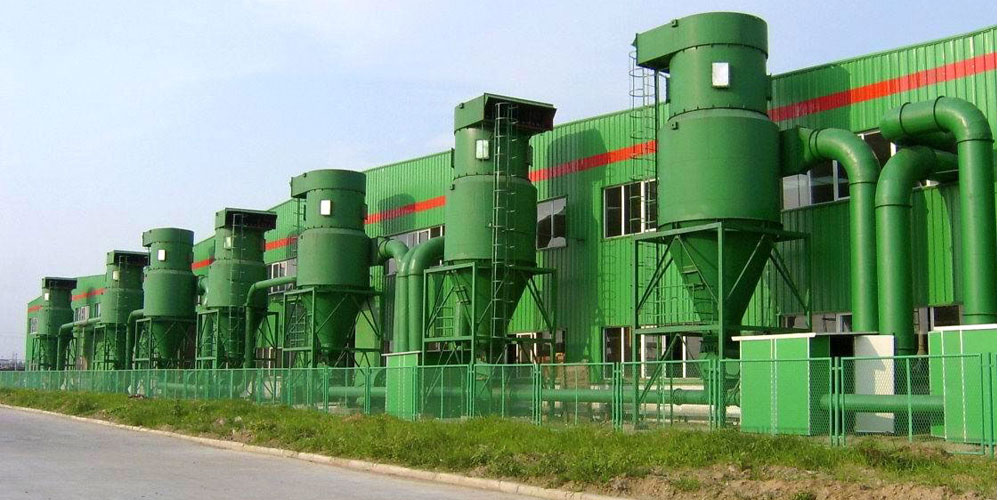

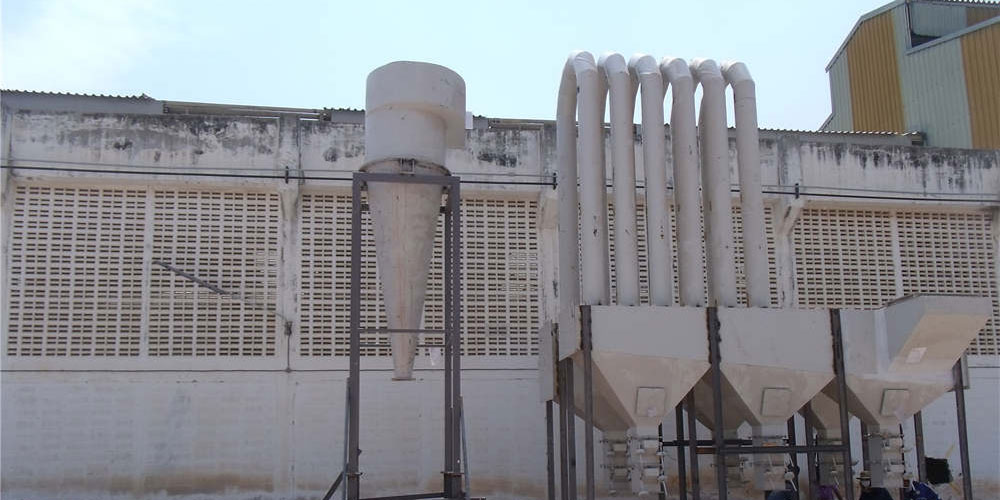

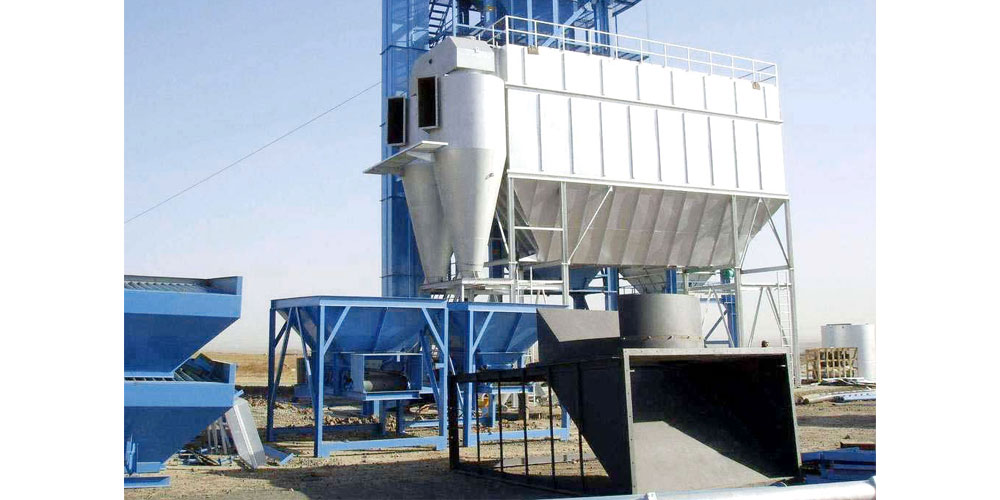

Cyclone dust collector is a kind of ordinary classifier with philosophy of centrifugal sedimentation,which is also called the centrifugal dust collector. Cyclone dust collector is mainly used for removal of the dust of the industrial waste gas with high density non-fabrous and cohesiveness. It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries, especially suitable for the initial purification for high temperature flue gas.

Application:
It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries.

Specification	XD-Ⅱ-0.5	XD-Ⅱ-1	XD-Ⅱ-2	XD-Ⅱ-4	XD-Ⅱ-6	XD-Ⅱ-10	XD-Ⅱ-20	XD-Ⅱ-35
Boiler(t/h)	0.5	1	2	4	6	10	20	35
Exhaust Gas Volume (m3/h)	1500	3000	6000	12000	18000	30000	60000	105000
Collection efficiency(%)	＞95
Pressure drop(Pa)	＜900
Cut diameter	3.05
Weight	310	570	960	1900	2910	6100	11750	20300

The high efficientcy clone dust collector is made up of feeding device, classifying device, bottom flow device,over flow device. The feeding device works in way of involute shape. The feedingpipe is rectangle tapered tube, and its extension line transition to feedingbox smoothly. The separate device is made up of cylinder and cone. The heightof cylinder is opted by the proportion, granularity and overflow fineness. The conepart take cone changing technique to guarantee the speed of particles atdeparting point to realize optimizes result. The inner shape of bottom flowdevice is cone and the height of cylinder is extended.
