BAG FILTER

OUTPUT

OUR ADVANTAGE

1. Reliable design ensures the bag filter stable and long-term operation with the other main equipment and little maintenance.

2. Optimized duct design will be in favor of uniform air distribution.

3. Air leakage prevention design ensures the lowest air leak rate for the bag filter.

4. Steel sub-structure design, which would be easy for transport and installation of the equipment.

5. Low operating costs. Optimized design of process parameters is conducive to efficient and stable operation of the bag filter with low resistance, reducing energy consumption, as well as the loss of the bag.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

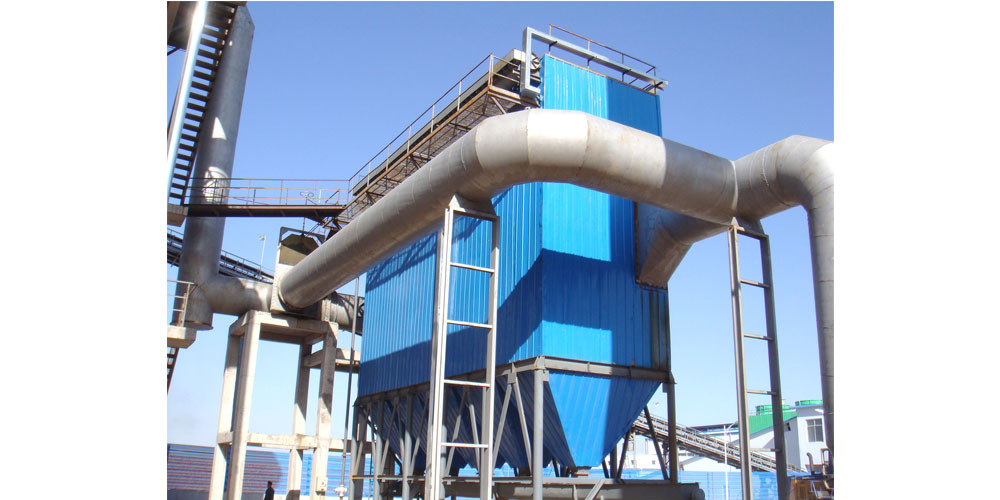

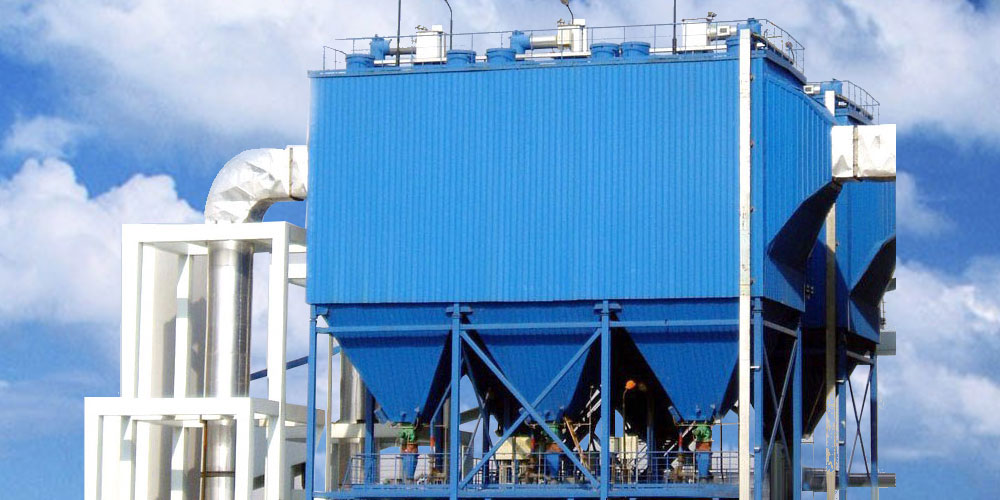

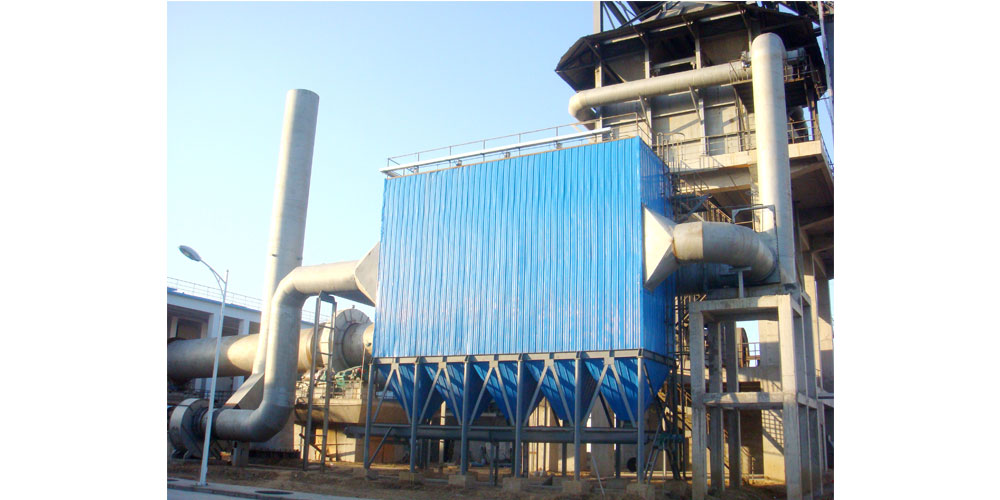

Bag filter is a kind of dry dust filtration device. Our company can provide design, manufacture, and installation one-stop service for bag filter. Our product range mainly include bag filter, single bag filter, pulse bag filter, mechanical reverse air bag filter, wet bag filter and bag filter parts.

Specification	Air volume （m3/h）	Air speed (m/min)	Filter area （m2）	Pressure drop （Pa）	Bag size （mm）	Bag qty （piece）	temperature resistance （℃）	Cleaning mode	Weight （t）
ZM100	6000-7000	1-1.2	100	1200	Ф130	100	＜230℃	on-line ash cleaning	3.6
ZM120	7200-8640	1-1.2	120	1200	Ф130	100	＜230℃	on-line ash cleaning	4.3
ZM150	9000-10800	1-1.2	150	1200	Ф130	100	＜230℃	on-line ash cleaning	5.7
ZM200	12000-14400	1-1.2	200	1200	Ф130	200	＜230℃	on-line ash cleaning	7.3
ZM250	15000-18000	1-1.2	250	1200	Ф130	200	＜230℃	on-line ash cleaning	8.8
ZM300	18000-36000	1-1.5	300	1200	Ф130	200	＜230℃	on-line ash cleaning	11.2
ZM350	21000-42000	1-1.5	350	1200	Ф130	200	＜230℃	on-line ash cleaning	13.3
ZM400	24000-48000	1-1.5	400	1200	Ф130	200	＜230℃	on-line ash cleaning	15.5
ZM450	27000-54000	1-1.5	450	1200	Ф130	200	＜230℃	on-line ash cleaning	18.9

Bag filter is consist of holder, ash bucket, the middle cabinet, the upper part cabinet, bag, frame, jet cleaning device and PLC control procedures and other components. The middle cabinet has sub-chamber structure. Dusty gas goes through collecting tube achieving to each ash bucket.
