GS ROTARY DRUM SCREEN







Technical Data

Model: GTS-3, GTS-15



Output: 1-50 (t/h)



Diameter: Φ1200--Φ1500 (mm)



Length: 3.5-6 (m)

ADVANTAGE

1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site;



2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well;



3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc;



4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption.



INTRODUCTION

GS Series Rotary Drum Screen is a kind of screen equipment to divide the material by particle size, which is usually used for classifying screen of medium size and fine material. It features with stable operation, low consumption, easy maintenace and simple and flexible processing set-up. It is widely used for product grading of mine, construction material, transportation, energy, chemical industry, etc.



GS Series Trommel Screen is the most commonly used classification device for refractory material, coal industry, quarry plant, ore dressing plant etc.



Application of GS Series Rotary Drum Screen:

1. Coal industry: separation of lump coal and pulverized coal.



2. Quarry: separation of sand and gravel.



3. Ore dressing plant: classification of different size stone, separation of stone, rock flour and soil.



4. Chemical industry: classification of different size material, and separation of powder material.



5. Mineral processing industry: classification of different size material, and separation of powder material.



According to different sizing specification, the numbers of hierarchical level could be from one to four. Materials are larger than the screen mesh of the last part will be discharged from the outlet. During the process of operation, its movement is slowly and steady and installation is simple, sometime no need any special foundation and could be placed on smooth ground or floor.

SPECIFICATIONS

Model

Capacity
(t)

Output
(t/h)

Diameter
(mm)

Length
(m)

Powder
(kw)

GTS-3

30000

10.4

Φ1200

3.5

4

GTS-5

50000

13.8

Φ1200

4

5.5

GTS-10

100000

27.8

Φ1400

5

7.5

GTS-15

150000

47.7

Φ1500

6

11





PROCESS

Rotary drum screen structure:

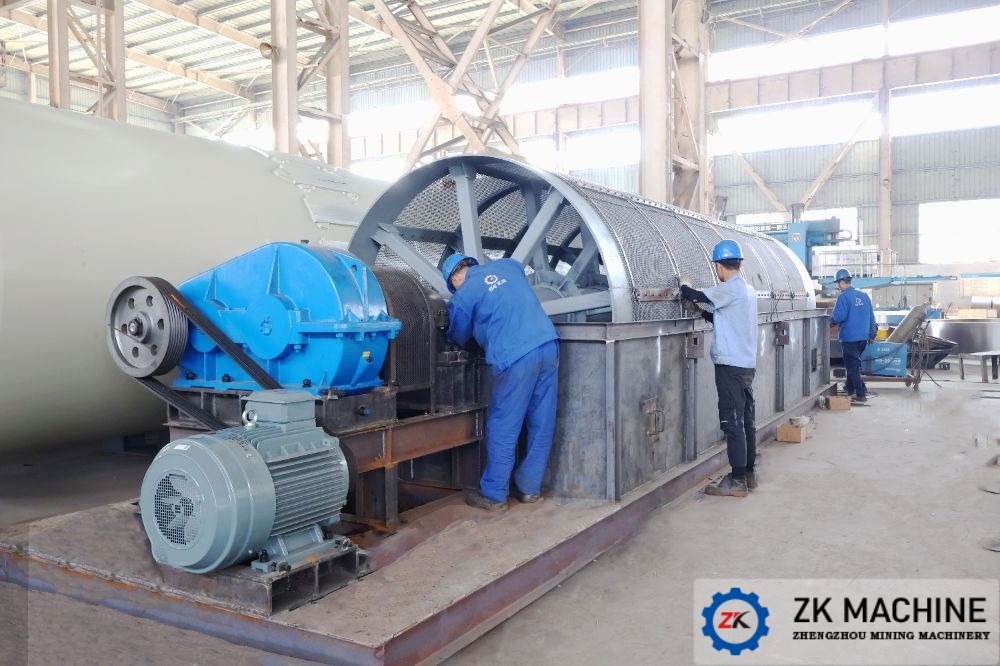

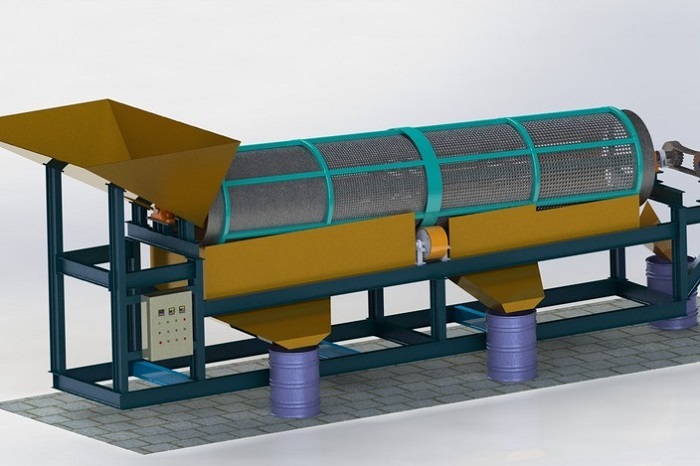

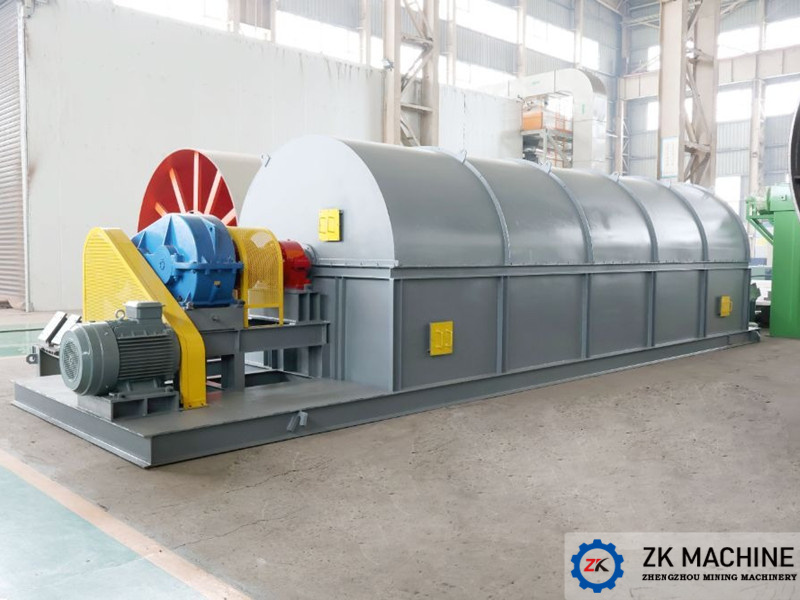

Drum screen consists of circular cylinder, rack, funnel, reducer, motor five parts. Smooth operation, low noise.






If you are interested in our product design, specification, spare parts, quotation etc, please feel free to contact us by WhatsApp +8618037866379, or email us at zkeqpt@zkcorp.com.
