Screen Layer: 1 - 2
Screen area: 7.5 - 14 (㎡)
Capacity: 150 - 1200 (t/h)
Applied material: Stone, Coal, Aggregate, Gravel, Basalt, Quartz, Granite, etc.
1. Motor and vibration exciter use belt drive, stable running and less impact for motor
2. High screening efficiency, large process volume.
3. Screen mesh is Wear Resistance, fatigue resistance, high classification precision.
4. Use steel spiral spring as damping device, reliable performance, long service life.
5. Use axis eccentricity as exciter, strong exciting force, which can make stuck material jump out, avoid mesh block.
6. Angle of screen mesh can be change to control process volume.

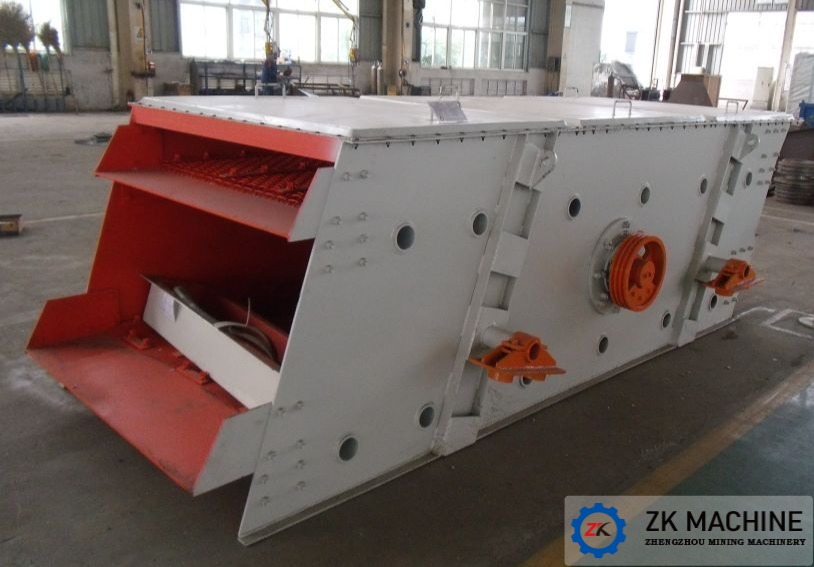

YA series circular vibrating screen used for screening dolomite before it goes into the preheater, and also can also be used for coal preparation, mineral processing, building materials, electricity and chemical industries. Circular vibrating screen is composed of eccentric exciter, screen box, motor, base and supporting device.
Working Principle:
YA Vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.
Application of Vibrating Screen:
It is used for classifying granulate material and small lump material inOre dressing, building material, electricity, chemical engineering.
|
Model |
Screen Mesh |
Feeding Size（mm） |
Capacity（t/h） |
Vibrating Frequency（r.p.m） |
Power（kW） |
Weight（kg） |
||
|
Lay |
area（㎡） |
Mesh Size（mm） |
||||||
|
YA1848 |
1 |
7.5 |
6～50 |
≤200 |
150～525 |
845 |
15 |
6289 |
|
2YA1848 |
2 |
7.5 |
6～50 |
≤200 |
150～525 |
845 |
15 |
6945 |
|
YAH1848 |
1 |
7.5 |
30～150 |
≤50 |
250～1000 |
755 |
13 |
7122 |
|
2YAH1848 |
2 |
7.5 |
30～150 |
≤400 |
250～1000 |
755 |
15 |
7740 |
|
YA2148 |
1 |
10 |
6～50 |
≤210 |
180～630 |
748 |
18.5 |
9287 |
|
2YA2148 |
2 |
10 |
6～50 |
≤210 |
180～630 |
748 |
22 |
10532 |
|
YAH2148 |
1 |
10 |
13～200 |
≤400 |
270～1200 |
708 |
18.5 |
10430 |
|
2YAH2148 |
2 |
10 |
30～150 |
≤400 |
270～1200 |
708 |
22 |
11190 |
|
YA2160 |
1 |
12 |
6～50 |
≤200 |
230～800 |
748 |
18.5 |
9926 |
|
2YA2160 |
2 |
12 |
6～50 |
≤200 |
230～800 |
748 |
22 |
11249 |
|
YAH2160 |
1 |
12 |
30～150 |
≤400 |
350～1500 |
708 |
30 |
12490 |
|
2YAH2160 |
2 |
12 |
30～150 |
≤400 |
350～450 |
708 |
30 |
13858 |
|
YA2448 |
1 |
11 |
6～50 |
≤200 |
200～700 |
748 |
18.5 |
9834 |
|
YAH2448 |
1 |
11 |
6～50 |
≤400 |
310～1300 |
708 |
30 |
11830 |
|
2YAH2448 |
2 |
11 |
30～150 |
≤400 |
310～1300 |
708 |
30 |
13012 |
|
YA2460 |
1 |
14 |
6～50 |
≤200 |
260～780 |
748 |
30 |
12240 |
|
2YA2460 |
2 |
14 |
6～50 |
≤200 |
260～780 |
748 |
30 |
13583 |
|
YAH2460 |
1 |
14 |
30～150 |
≤400 |
400～1700 |
708 |
30 |
13096 |
|
2YAH2460 |
2 |
14 |
30～150 |
≤400 |
400～1700 |
708 |
30 |
14420 |
YA vibrating screen is consist of driving device, screen case, exciter, damper, screen mesh. Feature of structure as below.
1. Driving device
Motor and vibration exciter use belt drive, stable running and less impact for motor
2. Screen case
It use frame structure, side plate is made by cold forming, no welding, high strength. Cross beam connect with high strength bolt. easy maintenance.
3. Damper
Use steel spiral spring as damping device, reliable performance, long service life.
4. Screen mesh
It can use metal wire mesh, rod, cast, welding, punching hole according material property.
