Length of outer cylinder: 1-3.6m
Capacity: b1-40(t/h)
Applied material: Slag,clay,coal
Application: Cement,coal,mine industry
1. Strong Drying Ability
The entire surface of the slag particles are the effective drying area since the material is highly dispersed in the hot gas stream.
2. Large capacity, high thermal efficiency
The thermal efficiency of up to 75% after dried the free water.
3. New process drying methods
Materials and heat flow enter into the slag drying machine from the same side, and the outlet of granulating slag dryer has low temperature and high heat efficiency.
4. Tailored Solution
Tailored Service to meet the needs of different users of the slag dried material, such as particle size and moisture requirements.

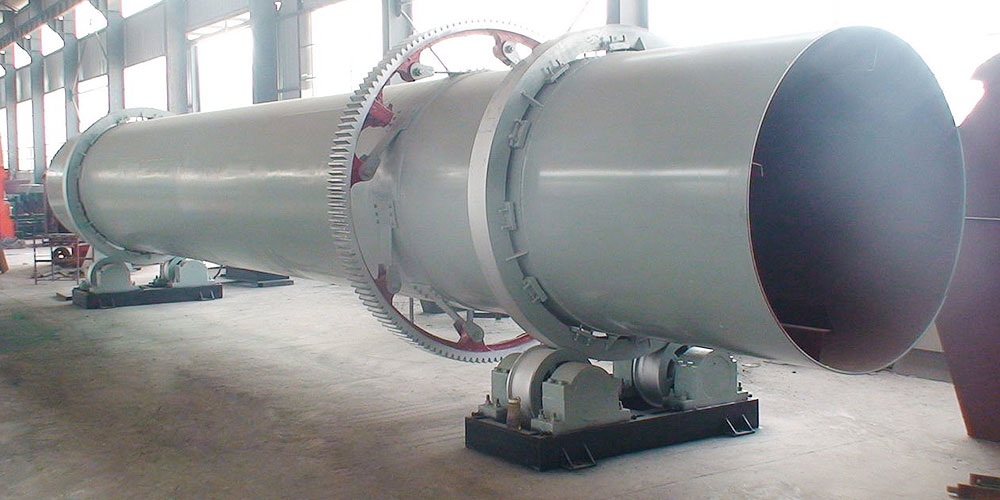

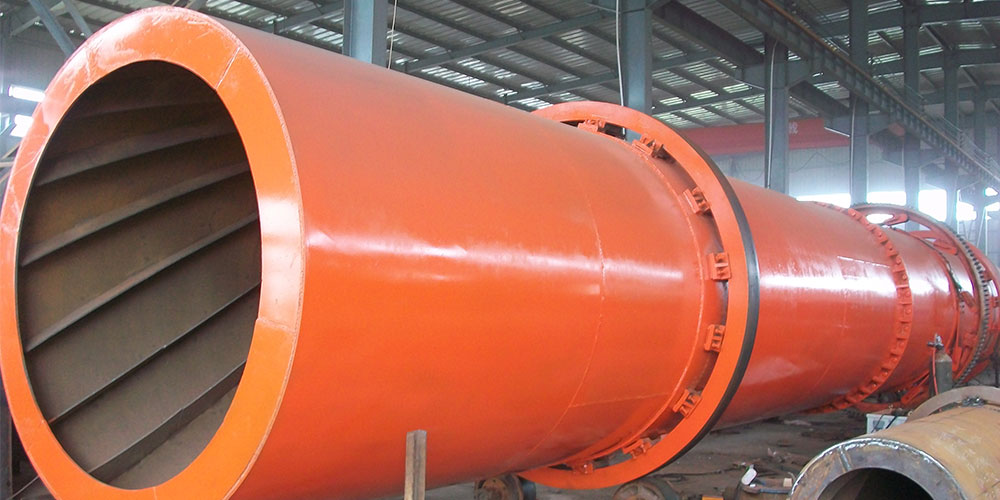

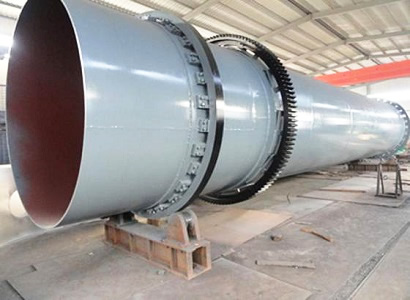

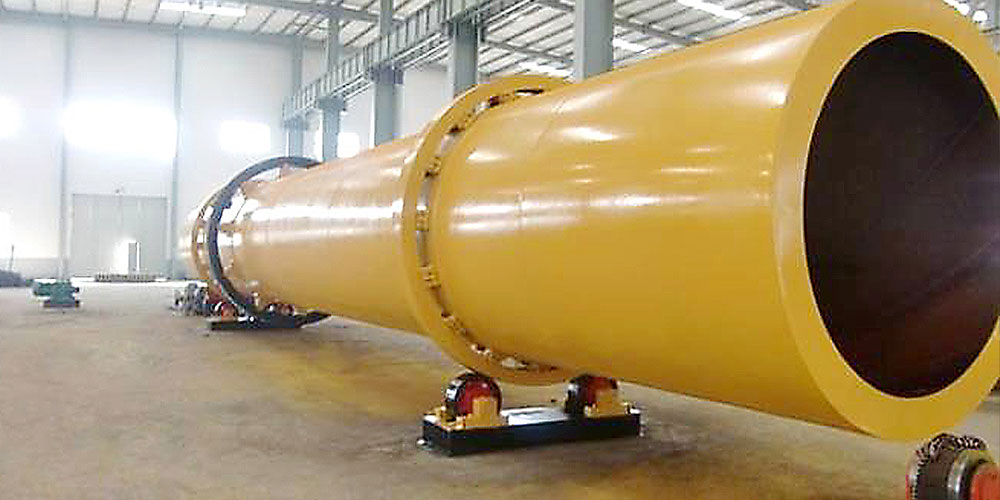

Slag dryer also named slag drying machine. Slag dryer is developed from rotary drum dryer, which has been the ideal drying machine for the big moisture and high density materials such as slag, limestone, clay, sand, etc.
| Model (m) | Shell | Capacity (t/h) | Motor | Power (kW) | Reducer | |||
| Inner Diameter (mm) | Length (mm) | Slope (°) | Rev.Speed (rpm) | Motor Model | ||||
| Ø1.2X12 | 1200 | 12000 | 1.8 | 5 | 2-5 | YI60LM-6 | 11 | ZQ500 |
| Ø1.5X15 | 1500 | 15000 | 1.8 | 4.28 | 4-5 | YI60L-6 | 18.5 | ZQ650 |
| Ø1.8X18 | 1800 | 18000 | 1.8 | 5 | 6-8 | Y200LI-6 | 22 | ZQ650 |
| Ø2.0X20 | 2000 | 20000 | 2 | 3.38 | 7-10 | Y200L2-6 | 30 | ZQ650 |
| Ø2.2X22 | 2200 | 22000 | 1.8 | 2.8 | 9-14 | Y250M-6 | 45 | ZQ650 |
| Ø2.4X24 | 2400 | 24000 | 2.5 | 2.82 | 14-16 | Y280S-6 | 55 | ZQ750 |
| Ø2.8X28 | 2800 | 28000 | 2.5 | 2.55 | 20-22 | Y315S-6 | 90 | ZL115 |
| Ø3.0X30 | 3000 | 30000 | 2.5 | 2.69 | 22-24 | Y315LI-6 | 132 | ZL130 |
| Ø3.2X32 | 3200 | 32000 | 2.5 | 2.6 | 24-26 | Y315M-4 | 200 | ZSY450 |
| Ø3.6X36 | 3600 | 36000 | 2.5 | 2.51 | 30-40 | Y315L2-4 | 315 | ZL130 |
| Ø4.0X40 | 4000 | 40000 | 2.5 | 2.09 | 40-45 | YKK4003-4 | 400 | ZSY630 |
| Ø4.2X42 | 4200 | 42000 | 2.5 | 2.09 | 45-46 | YKK4005-4 | 400 | ZSY630 |
| Ø4.5X45 | 4500 | 45000 | 2.5 | 1.92 | 46-50 | YKK4502-4 | 500 | MH3S230 |
| Ø4.8X48 | 4800 | 48000 | 2.5 | 1.92 | 50-55 | YKK4504-4 | 630 | MH3S250 |
| Ø5.0X 50 | 5000 | 50000 | 2.5 | 1.92 | 55-60 | YKK4505-4 | 710 | MH3S260 |
Slag drying production line mainly consists of the rotating cylinder, high-speed breakup equipment, lifting plate, self-cleaning device, gear transmission device, hot air furnace, reducer machine, supporting device, sealing device, air duct system, dust cyclone separator, etc.
