Model: Ø1.0×10m - Ø3.6×36m
Capacity: 1-40 (t/h)
Power: 11-400 (kW)
Application: fly ash, sand, coal, fertilizer, sludge, etc.
1. Reasonable structure;
2. High heat and drying efficiency;
3. Low energy consumption;
4. Fast drying, large processing capacity;
5. Environment friendly, stably working situation, etc.

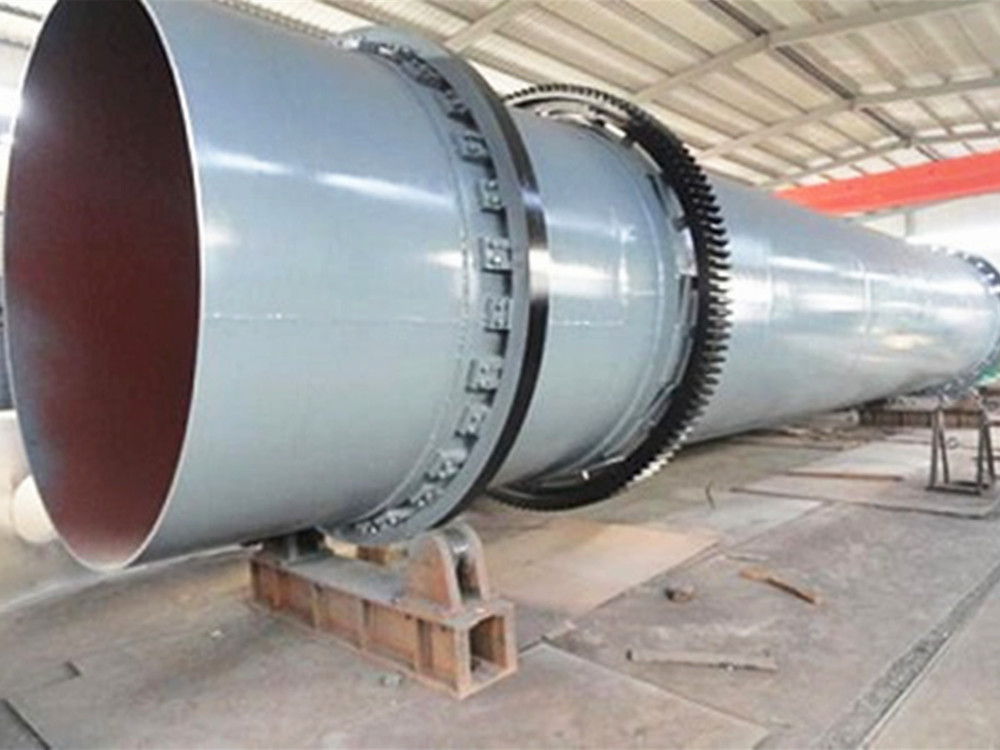

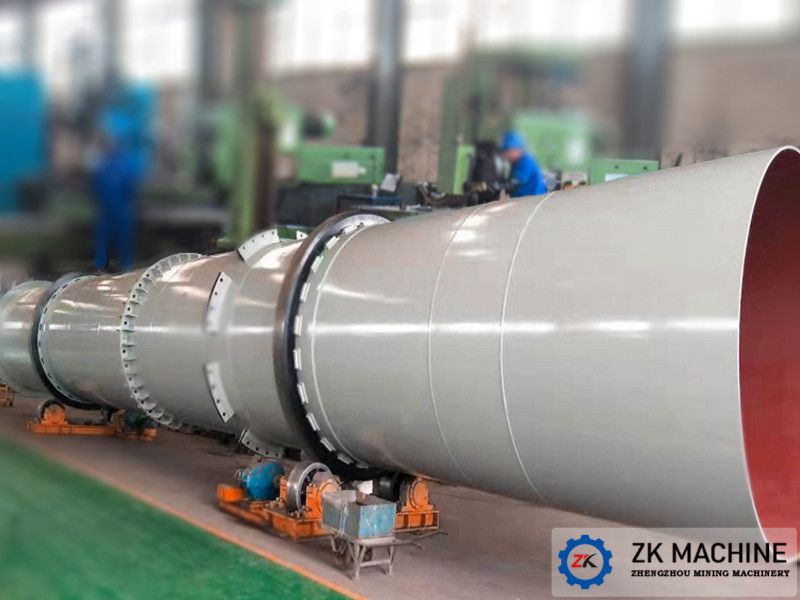

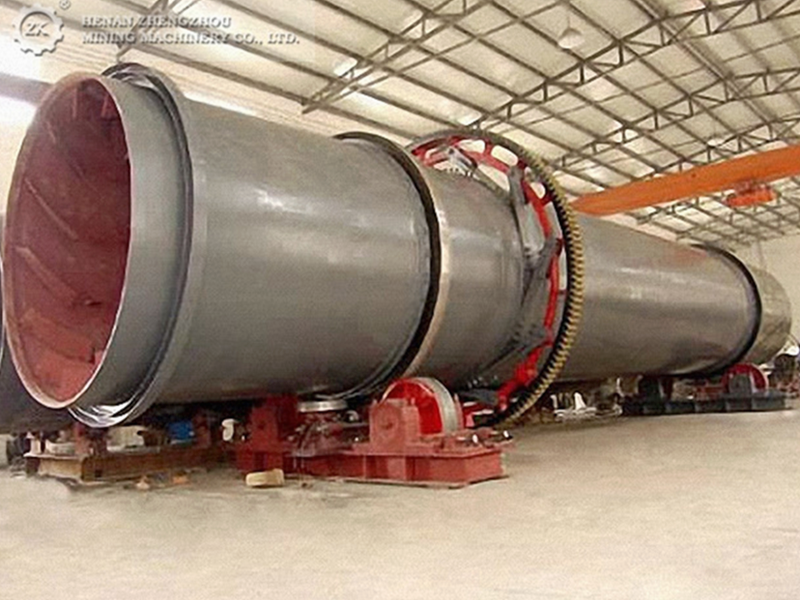

Fly ash rotary dryer machine is a set of equipment to process mass materials and granular materials, materials of high moisture, viscous and pasty materials by mixed with other materials. This dryer can use coal, charcoal, wood, gas and others as fuel. Generally, it can dry the material from 30-40% humidity to 1-5% humidity.
Fly ash rotary dryer Due to reliable performance, high capacity, wide adaptability range, small flow resistance, convenient operation, low consumption, high handling capacity, it is widely used in construction, metallurgy, chemical, coal, pharmaceutical and mining industry.
Service of ZK Corp:
Our factory is professional produce rotary dryer and kiln. we will offer the best price for customer. Hope you can visit our factory and test machine. When you order the machine, we will send our engineer install the machine and train the worker how to run the machine until the full line run well.
| Model (m) | Shell | Capacity (t/h) | Motor | Power (kW) | Reducer | |||
| Inner Diameter (mm) | Length (mm) | Slope (°) | Rev.Speed (rpm) | Motor Model | ||||
| Ø1.2X12 | 1200 | 12000 | 1.8 | 5 | 2-5 | YI60LM-6 | 11 | ZQ500 |
| Ø1.5X15 | 1500 | 15000 | 1.8 | 4.28 | 4-5 | YI60L-6 | 18.5 | ZQ650 |
| Ø1.8X18 | 1800 | 18000 | 1.8 | 5 | 6-8 | Y200LI-6 | 22 | ZQ650 |
| Ø2.0X20 | 2000 | 20000 | 2 | 3.38 | 7-10 | Y200L2-6 | 30 | ZQ650 |
| Ø2.2X22 | 2200 | 22000 | 1.8 | 2.8 | 9-14 | Y250M-6 | 45 | ZQ650 |
| Ø2.4X24 | 2400 | 24000 | 2.5 | 2.82 | 14-16 | Y280S-6 | 55 | ZQ750 |
| Ø2.8X28 | 2800 | 28000 | 2.5 | 2.55 | 20-22 | Y315S-6 | 90 | ZL115 |
| Ø3.0X30 | 3000 | 30000 | 2.5 | 2.69 | 22-24 | Y315LI-6 | 132 | ZL130 |
| Ø3.2X32 | 3200 | 32000 | 2.5 | 2.6 | 24-26 | Y315M-4 | 200 | ZSY450 |
| Ø3.6X36 | 3600 | 36000 | 2.5 | 2.51 | 30-40 | Y315L2-4 | 315 | ZL130 |
| Ø4.0X40 | 4000 | 40000 | 2.5 | 2.09 | 40-45 | YKK4003-4 | 400 | ZSY630 |
| Ø4.2X42 | 4200 | 42000 | 2.5 | 2.09 | 45-46 | YKK4005-4 | 400 | ZSY630 |
| Ø4.5X45 | 4500 | 45000 | 2.5 | 1.92 | 46-50 | YKK4502-4 | 500 | MH3S230 |
| Ø4.8X48 | 4800 | 48000 | 2.5 | 1.92 | 50-55 | YKK4504-4 | 630 | MH3S250 |
| Ø5.0X 50 | 5000 | 50000 | 2.5 | 1.92 | 55-60 | YKK4505-4 | 710 | MH3S260 |

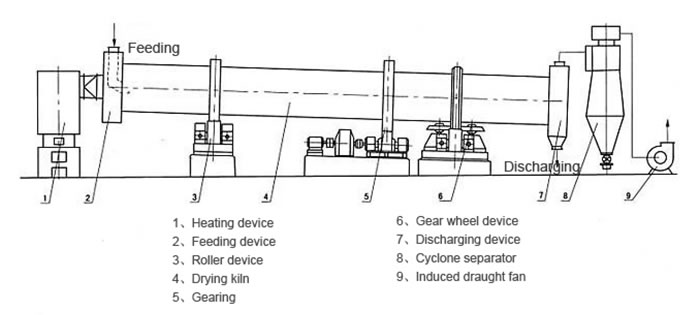

Fly Ash Dryer mainly consists of a horizontally inclined rotating cylinder, air duct tube, hor air furnace, highpressure draught fan, electric control box, etc.

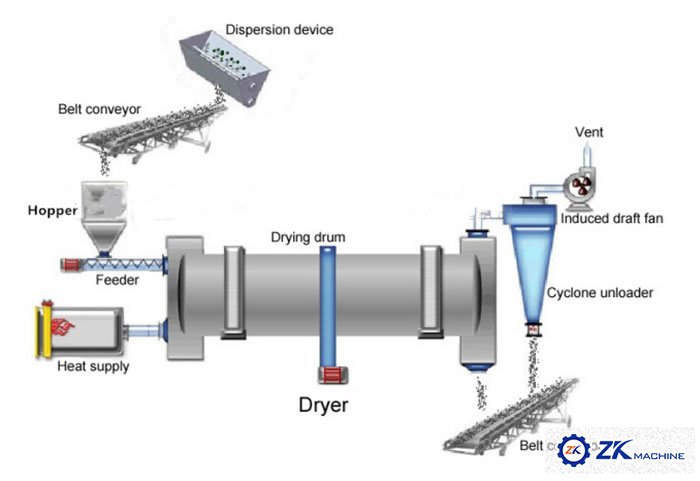

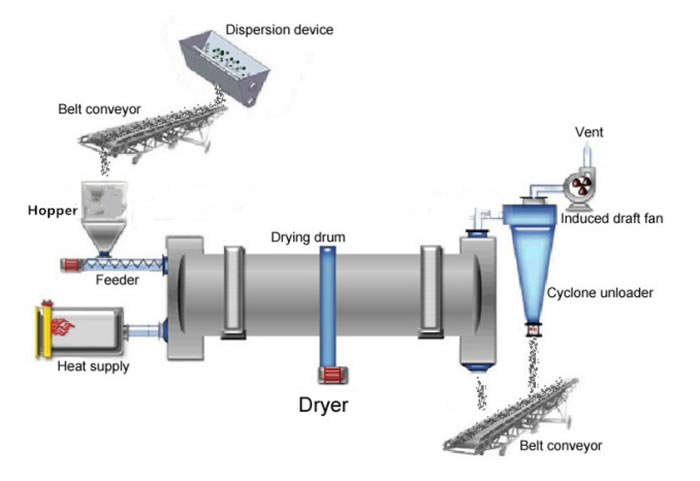

Wet fly ash are fed at the feed inlet hole, and discharged at the dischaging hole. It is direct-type heated rotary dryers, hot gases move through the cylinder in direct contact with the wet fly ash, either with or against the direction of the fly ash' moving direction. The cylinder is equipped with lifting plates which lift the fly ash, and shower it up and down through the hot flue gas.
