COAL, GAS MULTIFUEL BURNER







Technical Data



Type: Multi-channel



Fuel: mix gas and coal powder



Usage: Calcniation System



Application: Cement,Active Lime, Chemical Plant



ADVANTAGE

1. Flame stable, no fluctuation, no flame sweeping kiln lining and prolong kiln lining life;



2. Reasonable structure design, well mixed gas and coal powder, primary air and secondary air, complete combustion, can improve the kiln thermal strength while reducing the proportion of primary air to improve the productivity of the kiln and reduce heat consumption;



3. The flame round up cover forms bowl effect and initial flame without strong eddy. It avoids temperature peaks and distributes the flame temperature rationally. This can effectively protect the kiln body and guard plate.



4. Due to fully mixing between air and coal powder, the combustion is more efficiency. It can reduce the content of CO and NOX in exhaust gas and be beneficial to safety and environmental friendly operation.



5. The nozzle is made of special materials which can resistance high temperature and easy to replace;



INTRODUCTION

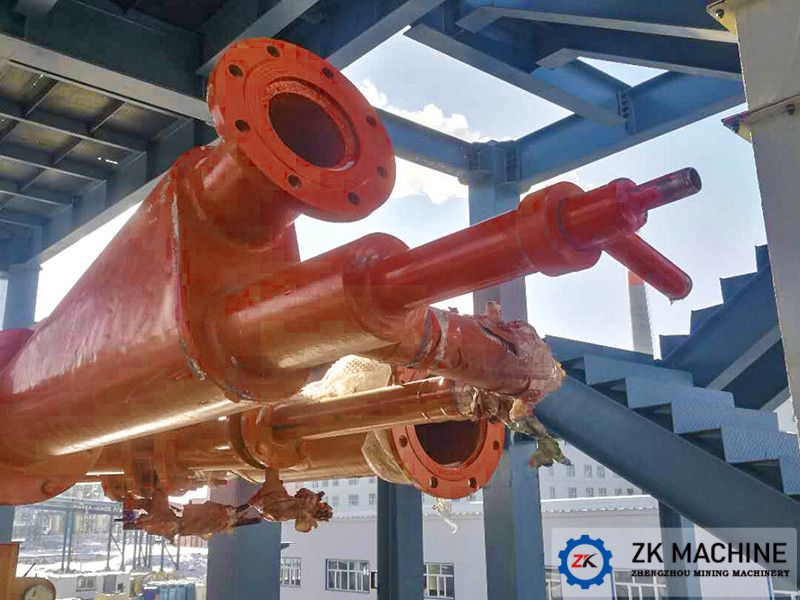

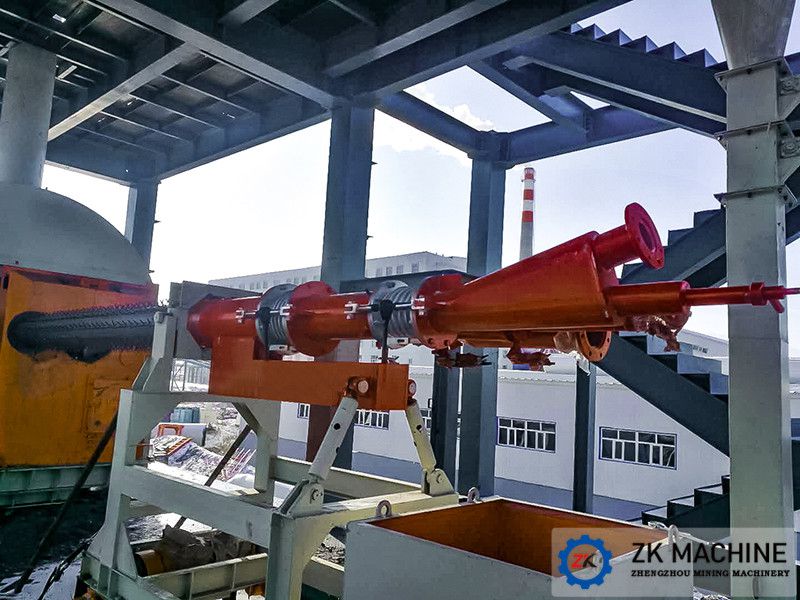

Multifuel burner is a new combustion device burning gas and coal powder in rotary kiln. It has a unique structure and reasonable parameters to ensure gas, coal powder and air, primary air and secondary air mixed sufficiently.

SPECIFICATIONS

For different type of kiln, fuel characteristics and process conditions, the multifuel burner is designed and fabricated according to customers' dmand.

Model ( L x W x H)(mm) Gas valve model Air Valve Model Gas pressure (Pa) Material Weight (t) Supporting kiln type
3150x1450x600 DN300 DN400 1200-1600 1Cr18Ni9Ti 1.5 φ1.9
3750x1450x600 DN300 DN500 1200-1600 1Cr18Ni9Ti 1.9 φ2.2
4130x1520x640 DN400 DN600 1200-1600 1Cr18Ni9Ti 2.4 φ2.5
4130x1520x640 DN400 DN600 1200-1600 1Cr18Ni9Ti 2.4 φ2.8
4300x1800x800 DN400 DN700 1200-1600 1Cr18Ni9Ti 3.5 φ3.0
4500x1980x820 DN400 DN700 1200-1600 1Cr18Ni9Ti 4 φ3.2
4800x2078x968 DN500 DN800 1200-1600 1Cr18Ni9Ti 5.2 φ3.5
4970x2240x1078 DN600 DN900 1200-1600 1Cr18Ni9Ti 6.7 φ4.0



PROCESS

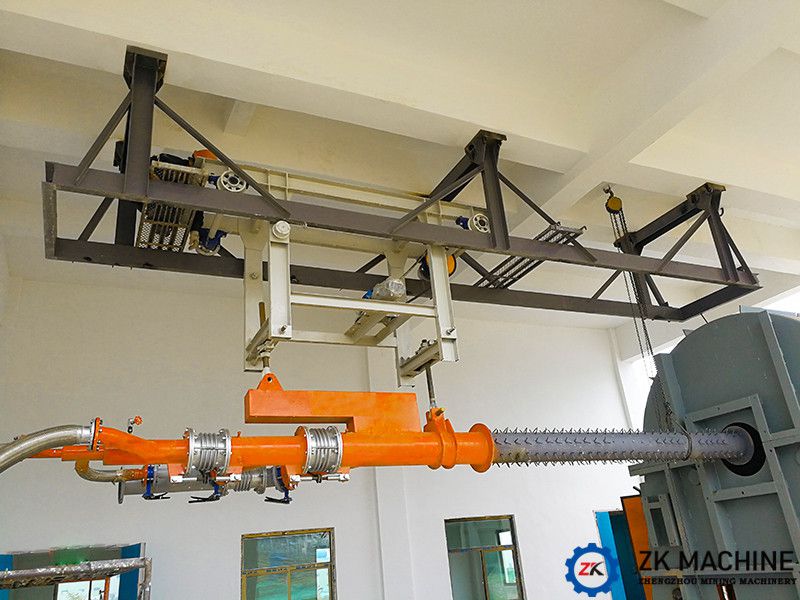

Multifuel burner is mainly composed of piping, nozzle, Metal Ripple Hose compensator, butterfly valves, pressure measurement instruments and protective layer. Its main structural features are:

1. Pipeline

There are five layers from outside to inside. They are axial flow duct, cyclone duct, gas channel, coal air channel and the central channel.



2. Nozzle

Processed by special material, its outlet are can be modified to adjust the ejection speed.



It is one of the key components which can maintain the flame shape and service life time.



3. Metal Ripple Hose Compensator

The Metal Ripple Hose Compensator is the main components of pipe connecting, sealing and flame shape adjusting.



4. Butterfly Valves

There are butterfly valves at the inlets of axial flow air, cyclone air and central air. Each air volume and proportion can be adjusted by change the channel outlet area to modify the ejection speed.



5. Pressure Measurement Instruments

They are used for indirect display air speed of each channel in burners.



6.Protective Layer

It is the refractory casting layer which is cast by user;
