Model: Φ1.6x32--Φ4.7x72(m)
Capacity: 48-1000(t/d)
Applied material: Kaolin, Dolomite, Limestone, Bauxite, Zinc Oxide, Mangesium Oxide etc
Application: Kaolin Calcination
1. The ultra-fine kaolin technology of Kaolin rotary kiln represents the development direction of ultra-fine kaolin calcination technology. This calcination technology has the advantages of low energy consumption, high yield, and stable performance.
2. The Kaolin rotary kiln has the features of ultra-fine grading size, high precision, large processing capacity, low energy consumption per unit of product, high efficiency, which has been utilized to a great extent.
3. High crushing ratio and processing capacity, low energy consumption per unit of product, high efficiency, widely used.
Kaolin rotary kiln of Henan ZK Corp produced has 11 models according to the specifications and dimensions of the cyclinder, ranging from Ø1.6×32m-Ø4×80m. The diameter of the cyclinder is above 2.2m (including 2.2m) with auxiliary transmission, and the support is changed from three groups to four groups when the diameter of cyclinder is above 3.0m (including 3.0m). The kiln speed is 0.58-2.85r/min, the slope is 3.5-4.0%, and the supporting main motor power is 18.5KW-355KW, which can meet the calcination demand of 2t/h-20t/h kaolin mineral products.
| Model (m) | Basic parameters | Reducer | Electric motor | Pedestal Qty. (Group) | Machine weight (t) | |||
|---|---|---|---|---|---|---|---|---|
| Rotating speed(r/min) | Slope（%） | Capacity (t/h) | Model | Model | Power（KW） | |||
| Ø1.6×32m | 0.58-2.85 | 4 | 2 | ZQ75-50 | YCT250-4A | 18.5 | 3 | 46.8 |
| Ø1.6/1.9×36m | 0.53-1.59 | 4 | 2.5-3 | ZQ110-7 | YCTZ50-4B | 22 | 3 | 57 |
| Ø1.9×39m | 0.53-1.59 | 4 | 3-3.4 | ZQ125-7 | YCT315-4A | 37 | 3 | 71.79 |
| Ø2.2×45m | 0.214-1.64 | 3.5 | 4-5 | Main:ZS125-5 | YCT315-4B | 45 | 3 | 142.6 |
| Auxiliary:ZQ40-40 | Y112M-4 | 4 | ||||||
| Ø2.5×50m | 0.62-1.5 | 3.5 | 5-6 | Main:ZS165-5 | YCT355-4A | 55 | 3 | 180 |
| Auxiliary:ZS50-1 | Y160M-6 | 7.5 | ||||||
| Ø2.5×55m | 0.62-1.5 | 3.5 | 5-6 | Main:ZS165-5 | YCT355-4A | 55 | 3 | 185 |
| Auxiliary:ZS50-1 | Y160M-6 | 7.5 | ||||||
| Ø2.8×55m | 0.62-1.5 | 3.5 | 6-7 | Main:ZS165-5 | YCT355-4B | 75 | 3 | 215.6 |
| Auxiliary:ZS50-1 | Y160L-6 | 11 | ||||||
| Ø3.0×60m | 0.5-1.5 | 3.5 | 7-9 | Main:ZS165-3 | ZSN-280-11B | 125 | 4 | 310.9 |
| Auxiliary:ZS50-1 | Y160L-6 | 11 | ||||||
| Ø3.2×64m | 0.4-1.5 | 3.5 | 8-10 | Main:ZS130-16 | ZSN-280-11B | 190 | 4 | 337.8 |
| Auxiliary:Zl50-1 | Y180L-4 | 22 | ||||||
| Ø3.5×70m | 0.4-1.5 | 3.5 | 12-14 | Main:ZSY500-40 | ZSN-315-082 | 280 | 4 | 394.6 |
| Auxiliary:Zl50-14 | Y180L-4 | 22 | ||||||
| Ø4.0×80m | 0.4-1.5 | 3.5 | 16-20 | Main:ZLY630-35.5 | ZSN-315-12 | 355 | 4 | 564.8 |
| Auxiliary:ZSY280-35.5 | Y200L-4 | 30 | ||||||

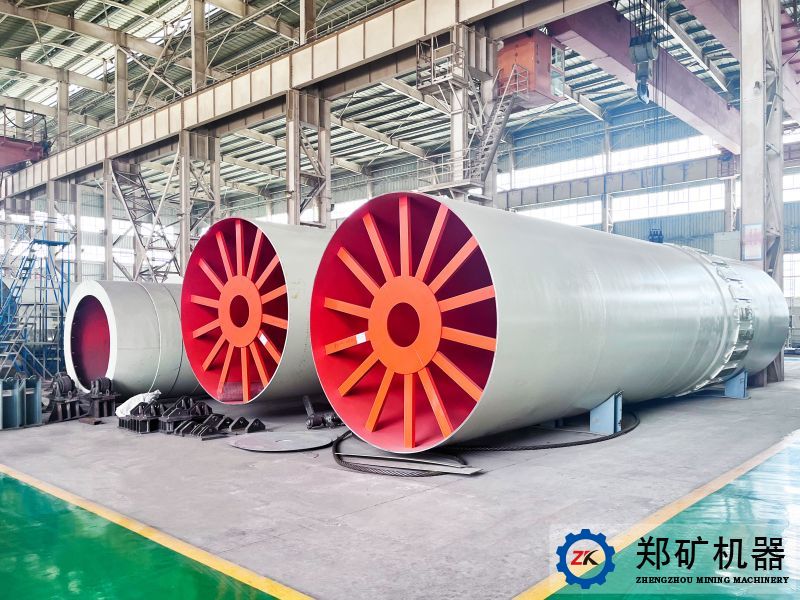

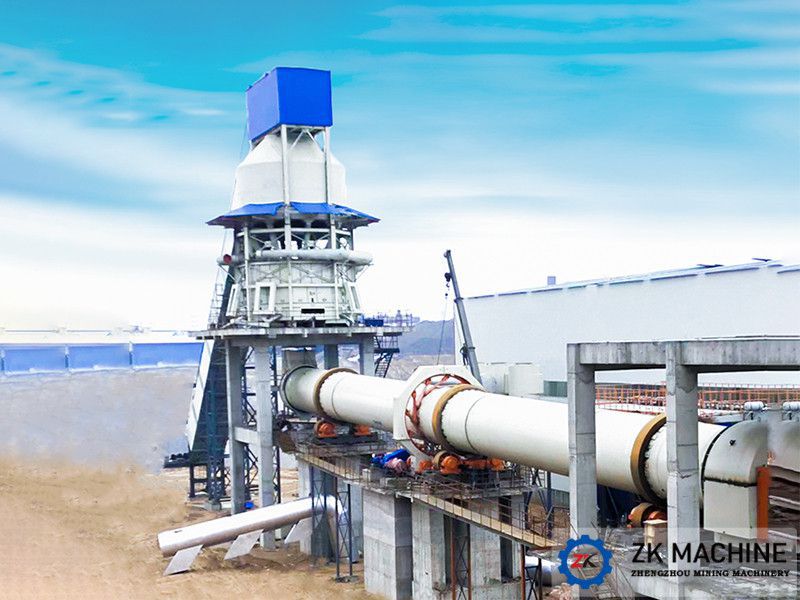

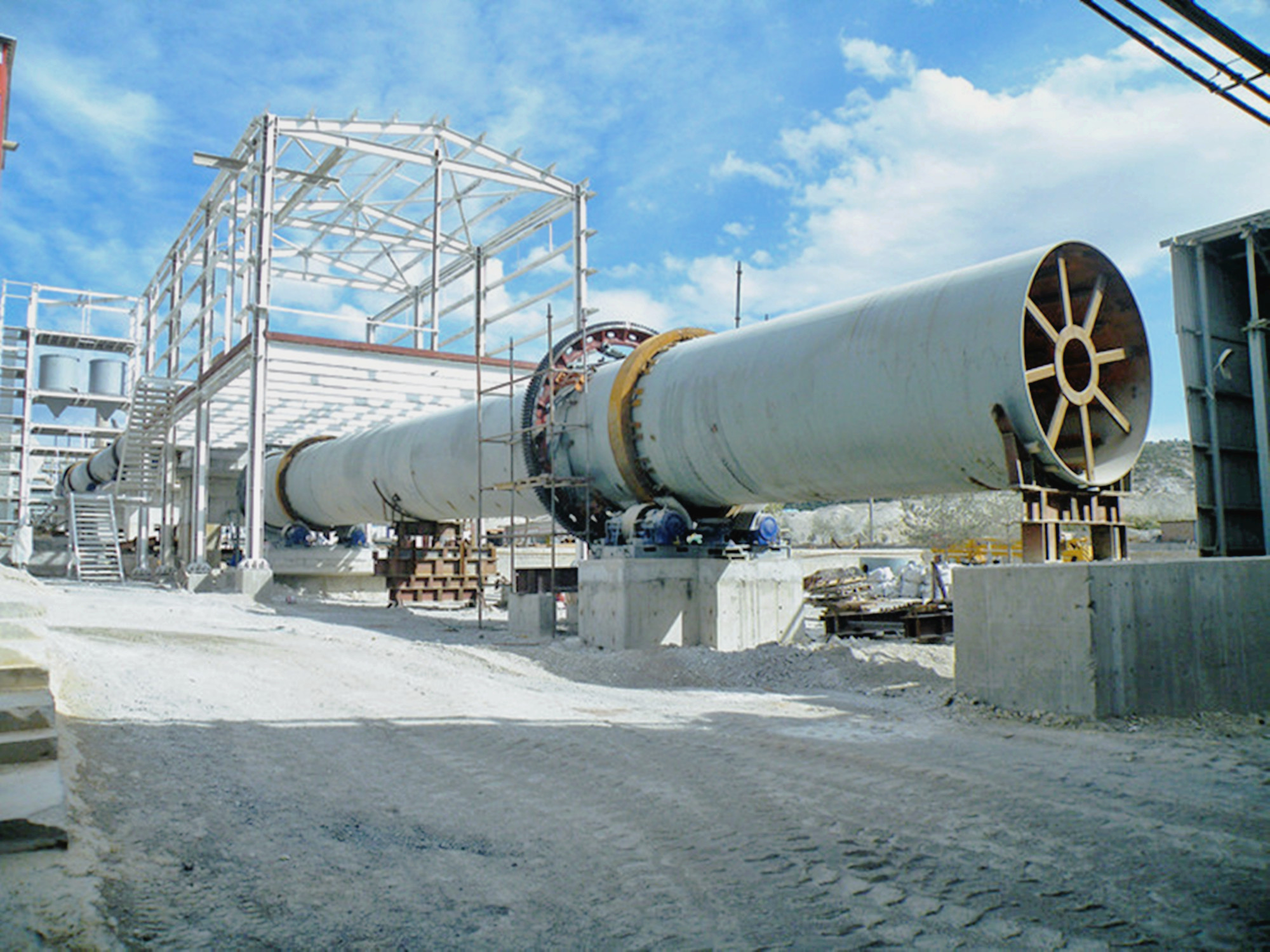

Kaolin Rotary Kiln is mainly compose of driving device, supporting roller, catching roller, cylinder, kiln inlet, kiln outlet and sealing device.
Its main features are:
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Certain gap is reserved between tyre and cylinder. After thermal expand of cylinder, the tyre can tightly stick on cylinder for strength it.
3. Gear is split type combination structure which is assembled with cylinder by spring boards. The features are easy for installation, steady transmission.
4. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.
5. Low speed unloading rotation device is designed for easy installation and commissioning. It also can guarantee unloading rotation operation during maintenance of main driving system or other emergency situation. This design can prevent cylinder from bending and deforming during the temperature is cooling down.
6. Mechanical or hydraulic catching roller is optional according to different type of rotary kiln. Both them have high accuracy and reliability, and also make sure evenly attrition of outer circle of supporting roller and tyre at the direction of complete width.
7. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.
