DOUBLE ROLLER GRANULATOR







Technical Data

Model:  DG3530-DG6055



Dia: 350- 600 (mm)



Length: 300-550 (mm)



Capacity: 1-6 (t/h)

ADVANTAGE

1. The granulator has the features of even outputting particle size

2. High rate of finished products, high production capacity

3. Compact structure, reasonable layout

4. Small area needed and high automatic control.



INTRODUCTION

Double roller granulator is a machine for producing powder or small particle material with the special shape by rolling cyclinder extruding action. The granulator has the features of even outputting particle size, high rate of finished products, high production capacity, compact structure, reasonable layout, small area needed and high automatic control.

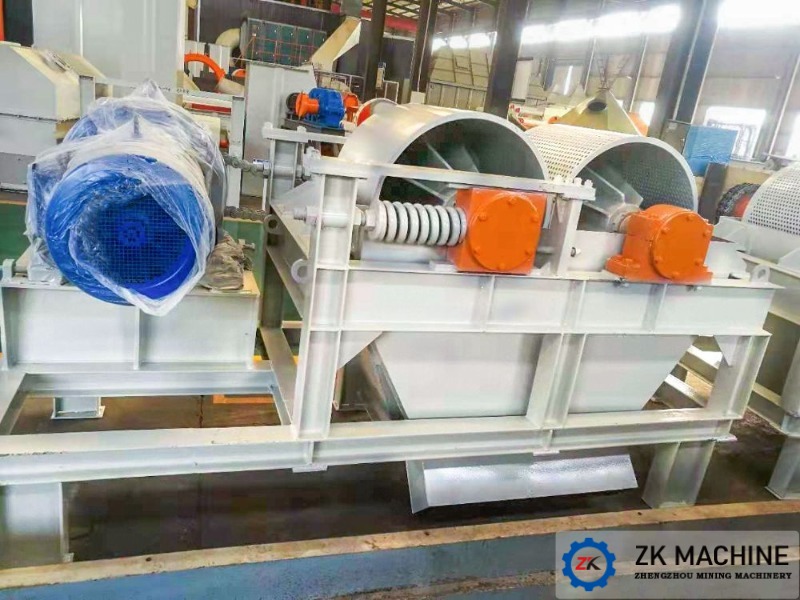

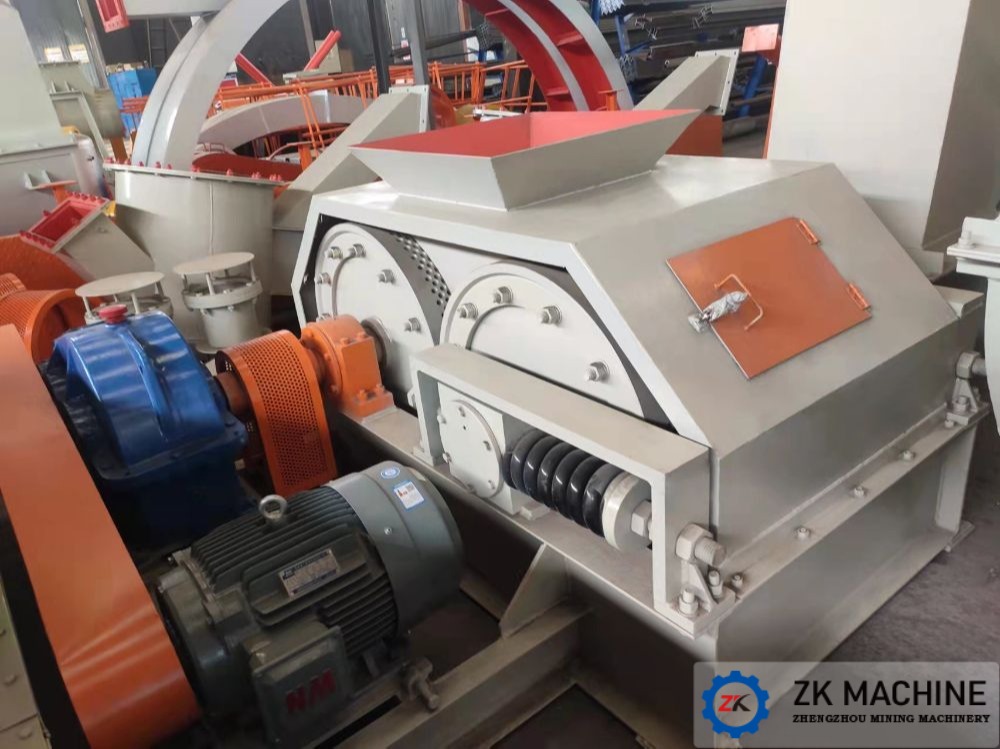

The double roller granulator is composed by fixed rolling device, movable rolling device, compact and adjusting device, frame, driving device and etc. The working principle is motor drive fixed roller by gear reducer, at the same time the fixed roller drive touch move roller by fricition drive on roller face, materials enter into granulator by feeding chute, pressed by double roller, and compression moulding when through fixed roller model sag hole, the molding materials are discharged from outlet after cut by scraper.

SPECIFICATIONS

Model

Roller

Motor Power(kW)

Capacity(t/h)

Diameter

(mm)

Length

(mm)

Rotating   Speed (r/min)

DG3530

φ350

300

58

5.5

1

DG4035

φ400

350

58

7.5

1-2

DG4540

φ450

400

58

11

2-3

DG5045

φ500

450

58

15

3-4

DG6055

φ600

550

65

18.5

5-6





PROCESS

The double roller granulator is composed by fixed rolling device, movable rolling device, compact and adjusting device, frame, driving device and etc. The working principle is motor drive fixed roller by gear reducer, at the same time the fixed roller drive touch move rooler by fricition drive on roller face, materials enter into granulator by feeding chute, pressed by double roller, and compression moulding when through fixed roller model sag hole, the molding materials are discharged from outlet after cut by scraper.
