OUR ADVANTAGE

1. Advanced vibration mechanism with low energy consumption because of working on low critical near resonance state;

2. Adopt Silicon controlled rectifier half-wave rectifier control method, when operating, automatic control can be realized by adjust the development angle of silicon controlled.

3. Due to the instantaneous change or opening and closing for material flow, the feeding volume with high accuracy.

4. When operating, material will been throw up continuous, then jumping forward with parabolic trajectory, so that have less abrasion to screen cell.

5. Widely application, alloy screen cell feeder can used for conveying wear and corrosive materials, sealing structure feeder can used for high pollution and easy to dust material.

6. Feeder with features like small overall size, light weight, simple structure, no need lubrication and easy to maintenance.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

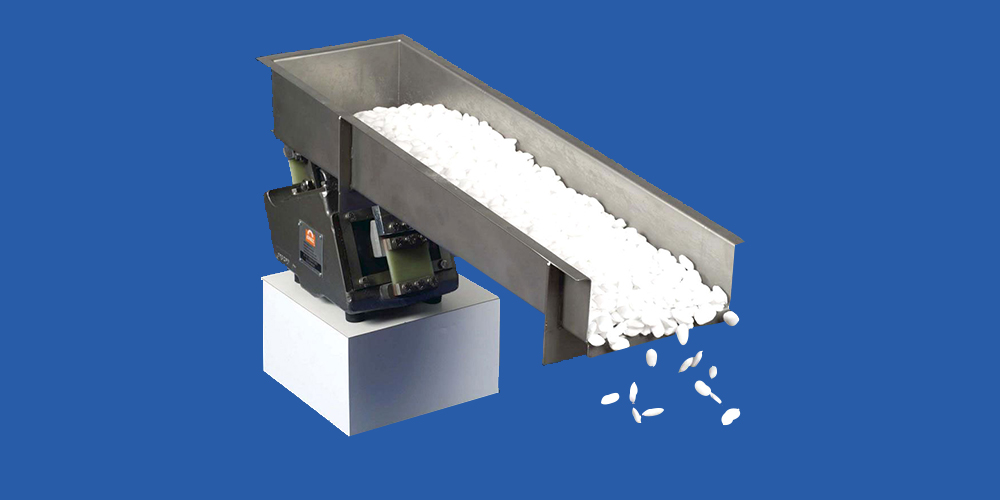

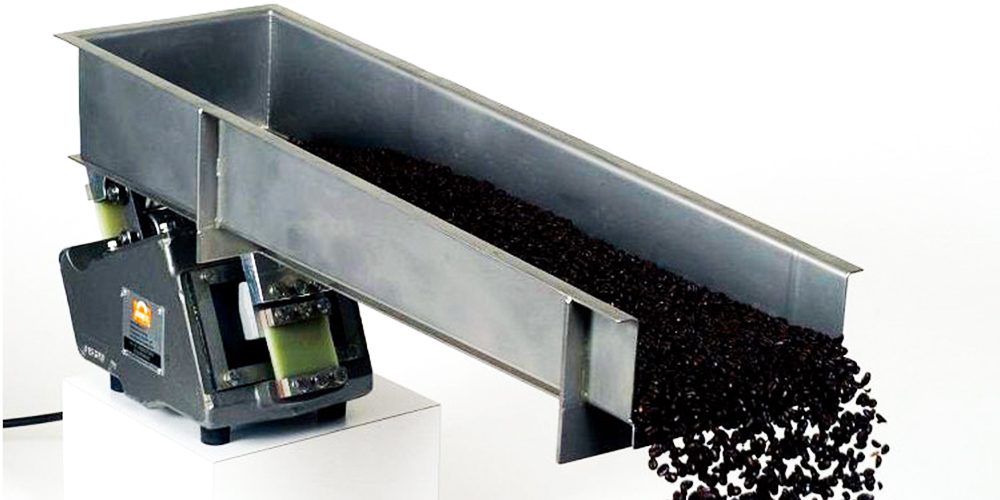

GZ series Electromagnetic Vibrating Feeder is mainly used for evenly, continuous and quantitative feeding for lump type, particle type and powder type materials, which is from storage silo and other storage equipment to receiving device with automatic feeding volume adjustment control. The series of feeder have the features like simple structure, easy operation, no need lubrication, low energy consumption and homogenous feeding volume, which can be applied to Mine, Metallurgy, Construction, Light industry, Chemical, Electricity, Machine and Grain industry.

Application:
The feeder can be applied to various type(particle type, powder type) materials’ feeding on Electricity, Chemical, Metallurgy, Construction, Light industry, Grain and mine industry.

Model	Capacity(t/h)		Max feed size(mm)	Motor power(kW)	Weight(kg)
Model	0°	-10°	Max feed size(mm)	Motor power(kW)	Weight(kg)
GZ1	5	7	50	0.06	73
GZ2	10	14	50	0.15	146
GZ3	25	35	75	0.2	217
GZ4	50	70	100	0.45	412
GZ5	100	140	150	0.65	656
GZ6	150	210	200	1.5	1252
GZ7	250	350	250	3	1920
GZ8	400	560	300	4	3040
GZ9	600	840	350	5.5	3750

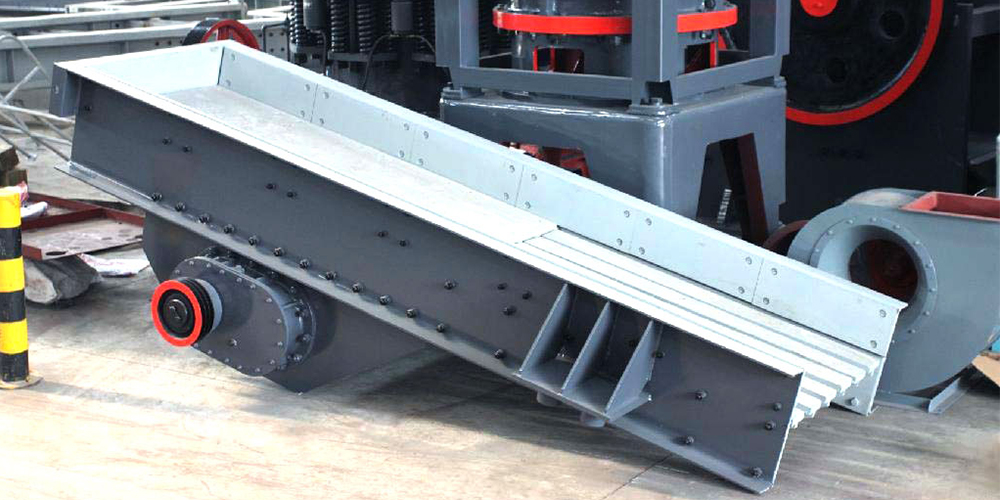

GZT vibrating feeding composed of material trough, vibrating exciter, spring supporting the structure features are
1. Material trough
It is material conveying and feeding part, and integrated framework, riveted by lock rivet. The lining of trough: feeding section is blind plate (incline angle is 0～5°) and outlet section is sticks (incline angle is 15～20°).

2. Vibrating exciter
Vibrating exciter is key part of vibrating feeder, use new type vibration motor as exciter, stable performance reliable, easy adjustment.

3. Spring support
It is seated mounted, use steel spring as damper spring, operation reliable and long service long.
