OUR ADVANTAGE

1. Vibrating source is motor, small noise, strong vibrating force. Low energy consumption.

2. Stable vibrating force and easy adjustment, can change and control material feeding any time.

3. Gap between stick on outlet are adjustable. It can separate soil and sand during feeding process, the pre-screen capability can improve the coarse crushing capacity.

4. Material trough use frame type connect with rivet, and side plate is bend by a entire steel plate, compact structure, good rigidity, fatigue resistance.

5. Both backplate and stick are made by ware-resistant material, strong structure, high strength, impact resistance.

6. Big processing capacity, reliable running, easy maintenance.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

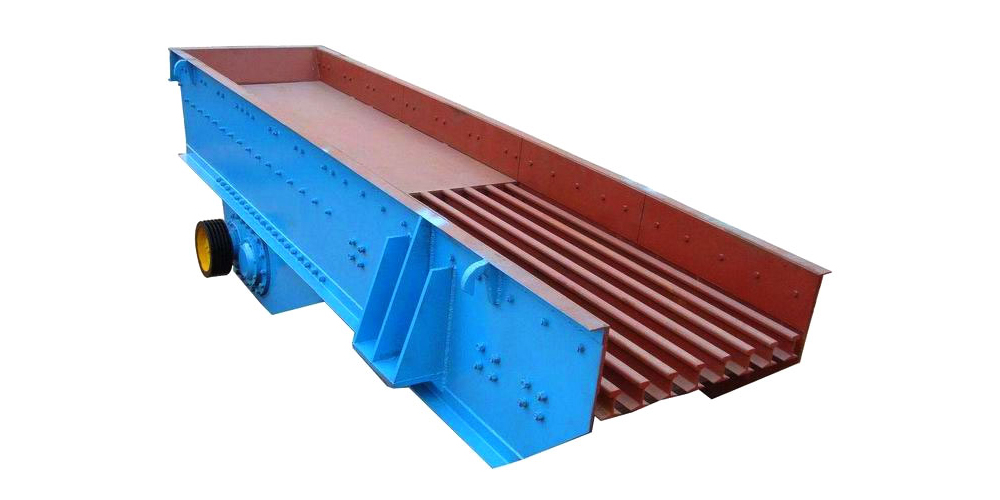

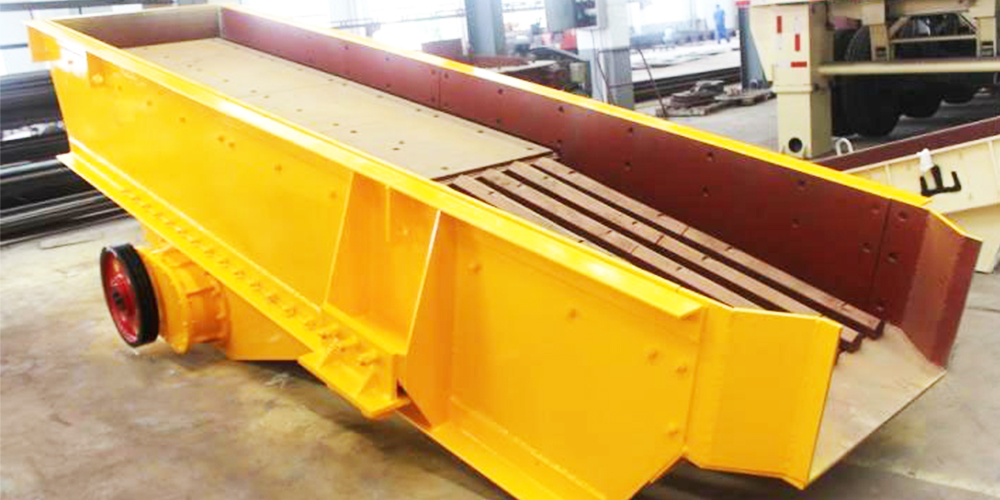

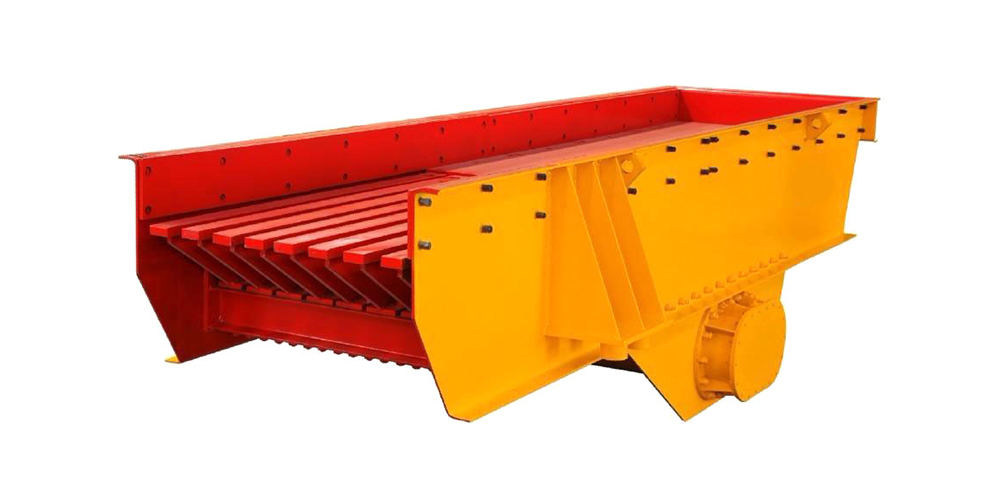

GZT vibrating feeder use a pair of motor with complete same parameter as vibrating source. It can continuously and uniformly feed lump, granulate material to receiving equipment and screen material during feeding process. It has feature such as big vibrating force, high strength, impact resistance, long service.

Application:
It is widely used for feeding big size material for crushing in mine, cement, lime, ore dressing industries.

Model	Max Feeding Size（mm）	Capacity（t/h）	Motor Power（kW）	Angle（°）	Weight（kg）
GZT-0724	450	30～80	2×1.5	10	2936
GZT-0932	560	80～150	2×2.4	10	3359
GZT-0940	560	80～180	2×3.2	10	3608
GZT-1148	600	150～300	2×5.5	10	4808
GZT-1256	800	180～400	2×7.5	10	5994
GZT-1560	1000	400～600	2×13	10	9896

GZT vibrating feeding composed of material trough, vibrating exciter, spring supporting the structure features are
1. Material trough
It is material conveying and feeding part, and integrated framework, riveted by lock rivet. The lining of trough: feeding section is blind plate (incline angle is 0～5°) and outlet section is sticks (incline angle is 15～20°).

2. Vibrating exciter
Vibrating exciter is key part of vibrating feeder, use new type vibration motor as exciter, stable performance reliable, easy adjustment.

3. Spring support
It is seated mounted, use steel spring as damper spring, operation reliable and long service long.
