1. Strong Drying Ability

The entire surface of the slag particles are the effective drying area since the material is highly dispersed in the hot gas stream.

2. Large capacity, high thermal efficiency

The thermal efficiency of up to 75% after dried the free water.

3. New process drying methods

Materials and heat flow enter into the slag drying machine from the same side, and the outlet of granulating slag dryer has low temperature and high heat efficiency.

4. Tailored Solution

Tailored Service to meet the needs of different users of the slag dried material, such as particle size and moisture requirements.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

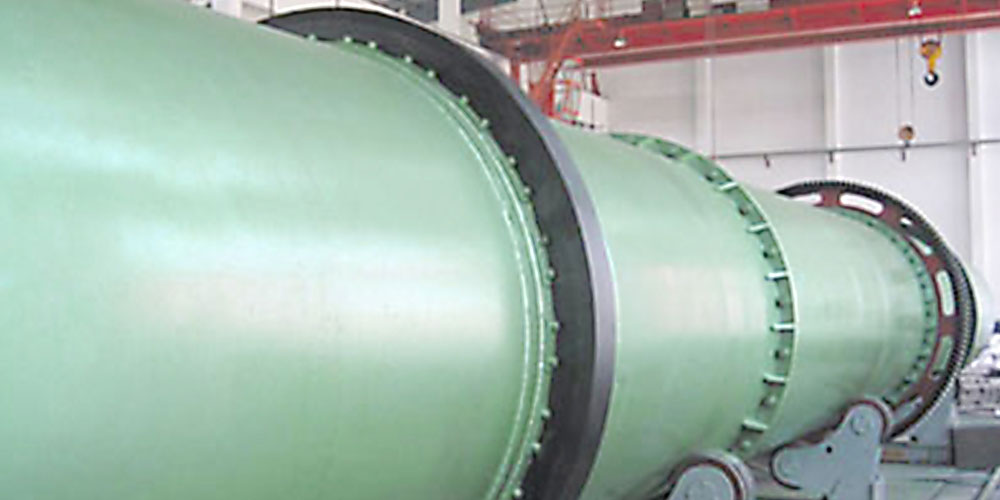

Slag dryer also named slag drying machine. Slag dryer is developed from rotary drum dryer, which has been the ideal drying machine for the big moisture and high density materials such as slag, limestone, clay, sand, etc.

Slag Dryer Application
Slag Dryer Machine is widely used in building materials, metallurgy, mineral processing, chemical, cement and other industries, mainly for the slag, limestone, clay, sand, quartz sand, granulating slag and other wet materials with high intensity. After being dried by the slag drier, the dried slag can be used into the cement industry and other industries.

Slag Dryer Working Process
Slag is relatively sticky. During the drying process, the wet slag will be transported into the feed hopper by belt conveyor. Feed hopper is directly connected to the drying cylinder, and the wet slag will goes into the drying drum by the feed hopper, begin to contact with the hot gas stream inside the drying drum, thereby starting the whole slag drying process.

MODEL	CAPACITY（t/h）	SLOPE（%）	GEARBOX	MOTOR	POWER(kW)
Ø1.0×10m	1-2	5	ZQ400	YCT200-4B	7.5
Ø1.2×12m	2-3	5	ZQ500	YCT225-4A	11
Ø1.5×15m	3-5	5	ZQ500	YCT225-4B	15
Ø1.8×18m	4-6	4	ZQ750	YCT250-4B	22
Ø2.0×20m	7-9	3.5	ZQ750	YCT280-4A	30
Ø2.2×22m	8-10	3.5	ZQ850	YCT315-4A	37
Ø2.4×24m	12-15	3.5	ZQ850	YCT315-4B	45
Ø2.8×28m	16-22	3.5	ZS145	YCT355-4A	55
Ø3.0×30m	20-25	3.5	ZS165	YCT355-4B	75
Ø3.2×32m	28-32	3.5	ZL130	YCT355-4C	90
Ø3.6×36m	38-40	3.5	ZL130	YVF₂-315L2-6	132

Slag drying production line mainly consists of the rotating cylinder, high-speed breakup equipment, lifting plate, self-cleaning device, gear transmission device, hot air furnace, reducer machine, supporting device, sealing device, air duct system, dust cyclone separator, etc.
