Sand Rotary dryer is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer, etc. This rotary drying machine comes with thermocouples on the feeding and discharging device to control the temperature. Thermometers are also adopted so as to better control the working temperature (generally 350-380°) of the rotary drier.
MODEL | CAPACITY（t/h） | SLOPE（%） | GEARBOX | MOTOR | POWER(kW) |
Ø1.0×10m | 1-2 | 5 | ZQ400 | YCT200-4B | 7.5 |
Ø1.2×12m | 2-3 | 5 | ZQ500 | YCT225-4A | 11 |
Ø1.5×15m | 3-5 | 5 | ZQ500 | YCT225-4B | 15 |
Ø1.8×18m | 4-6 | 4 | ZQ750 | YCT250-4B | 22 |
Ø2.0×20m | 7-9 | 3.5 | ZQ750 | YCT280-4A | 30 |
Ø2.2×22m | 8-10 | 3.5 | ZQ850 | YCT315-4A | 37 |
Ø2.4×24m | 12-15 | 3.5 | ZQ850 | YCT315-4B | 45 |
Ø2.8×28m | 16-22 | 3.5 | ZS145 | YCT355-4A | 55 |
Ø3.0×30m | 20-25 | 3.5 | ZS165 | YCT355-4B | 75 |
Ø3.2×32m | 28-32 | 3.5 | ZL130 | YCT355-4C | 90 |
Ø3.6×36m | 38-40 | 3.5 | ZL130 | YVF2-315L2-6 | 132 |

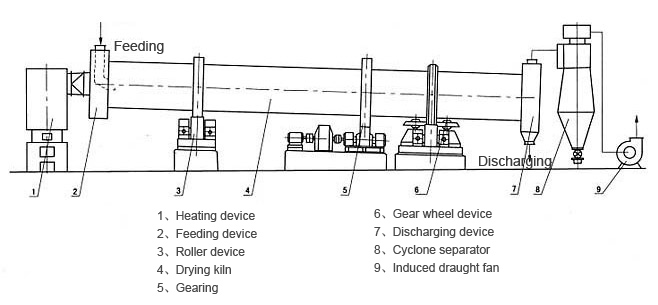

The sand dryer mainly consists of rotor, shed plate, transmission device, support device, seal ring, and other spare parts. The rotary dryer has the advantages of reasonable structure, excellent manufacture, high output, low energy consumption, convenient operation and so on.
