OUR ADVANTAGE

1. Because the scraper conveyor is the use of the material in the friction to drive the material move, therefore, the smaller resistance during operation, low energy consumption, energy saving about 50% less in compared with the screw conveyor.

2. Conveyor chain adopts high strength wear resistant alloy sleeve roller chain plate structure, and after the special technology processing, it has high strength, low friction coefficient, long working life and other characteristics;

3. Wide scope transportation, it should be transport various powder, granular, lump material with high capacity and long distance below 150 ℃.

4. The whole transport process conducted in confined Spaces, sealed safe and reliable, especially suitable for conveying volatile, toxic, corrosive, and special medium, etc.

5. The type scraper conveyor is completed, there are FU200, FU270, FU350, FU410, various types etc. It can customize according to customer’s demand for special.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

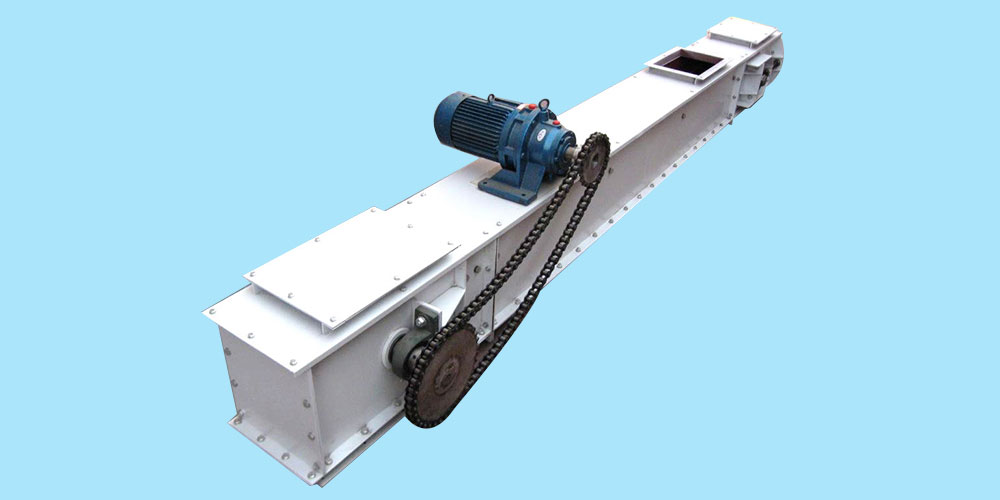

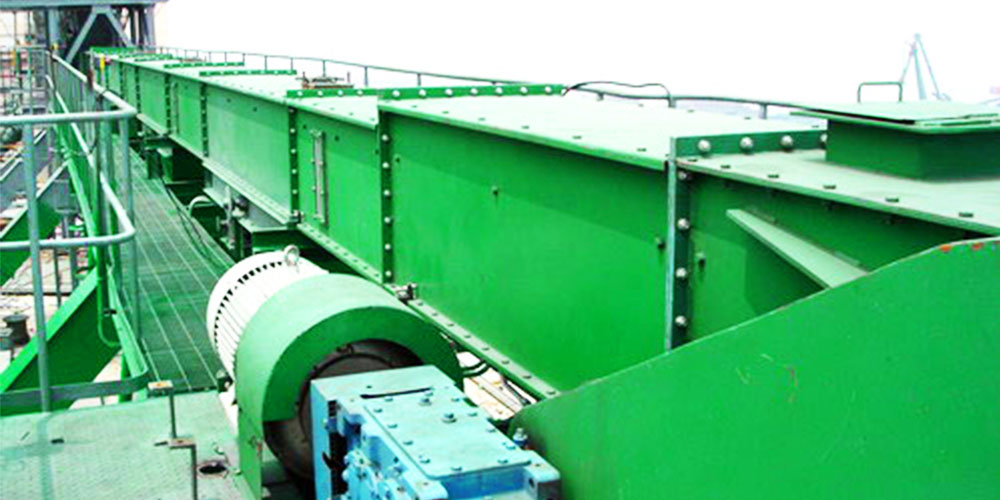

FU type scraper conveyor (chain conveyor) is an conveying equipment which is traction components on the roller chain plate and continuous. This type of device with compact structure, good sealing, rational layout, application convenient maintenance, etc. It is mainly used for grinding powder, particle, small lump with strong abrasive in horizontal or inclination, also widely used in chemical industry, metallurgy, mining, building materials, electric power, light industry, traffic, road construction, food processing industry, port, etc.

Application: Chemical industry, metallurgy, mining, building materials, electric power, light industry, traffic, road construction, food processing industry, port, etc.

Model	FU200	FU270	FU350	FU410
Width（mm）	200	270	350	410
Scraper chain pitch（mm）	100	125	160	160
Blade speed（m/s）	0.17～0.53	0.17～0.53	0.17～0.53	0.1～0.53
Material ideal size（mm）	≤5	≤7	≤9	≤11
Max. size（mm）	≤10	≤14	≤18	≤21
Speed（m/s）	Capacity（m³/h）
0.17	16	20	40	65
0.21	22	40	50	80
0.36	40	70	110	160
0.40	58	90	140	190
0.53		110	180	240

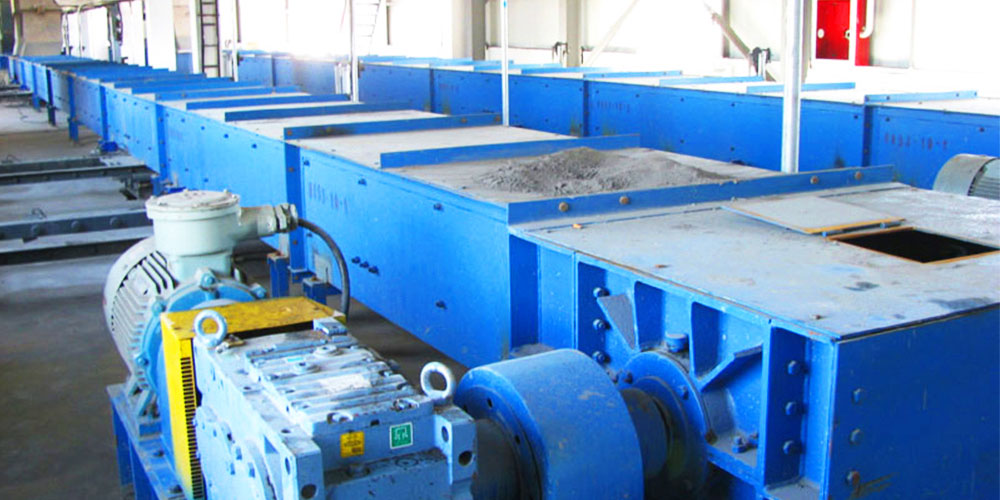

FU type scraper conveyor is mainly composed of transmission device, chain scraper device, head device, intermediate shell, tail device, etc.
1. Transmission device
Transmission device mainly include motor, reducer, coupling, transmission system, frame, and protective cover, etc., This part of the high reliability, compact structure, less wearing parts,
convenient operation and maintenance.

2.Chain scraper device
Chain scraper device is mainly composed of guide rail, guide rail, scraper, chain and so on, is the main working parts buried scraper conveyor, its structure is reasonable or not directly decides the effect of material conveying. According to the characteristics of conveying material respectively designs scraper bar, frame structure, ensure material in conveying part material to pass through around the edges of the scraper in the process of conveying of material has certain viscosity, thus preventing material during delivery by extrusion formation of tight junction layer or material card in the slot machine and scraper, cause the loss of transmission capacity or failure.

3.Casing head device
Casing head device is mainly composed of the head, head shaft, etc; Among them, the casing connection part of the head set with reliable seal, ensure no leakage of dust in the working process, and in its upper part is equipped with the access door, the observe the performance of the sprocket, conveyor chain at the same time, can also be convenient for related maintenance work.

4.Intermediate casing
Intermediate casing is made up by a number of standard section, connected by flange, bolts, between each section and casing has standardized design, can be used according to different user's needs, quick adjustment.

5.Tail device
Tail device mainly includes the tail shaft, slide plate, guide rail, chain tensioning device, the rear shell, etc; Among them, the shell sides, respectively, with guide rail, the tail shaft through the bearing seat fixed on the guide rails on both sides, and at the same time connected to the chain tensioner bearing; When adjusting the chain tensioner, drives the tail shaft bearing is sliding around on the guide rail, so as to realize the tension of the chain or loosen, the chain tensioner adjusting convenience, big tension, accurate positioning.
