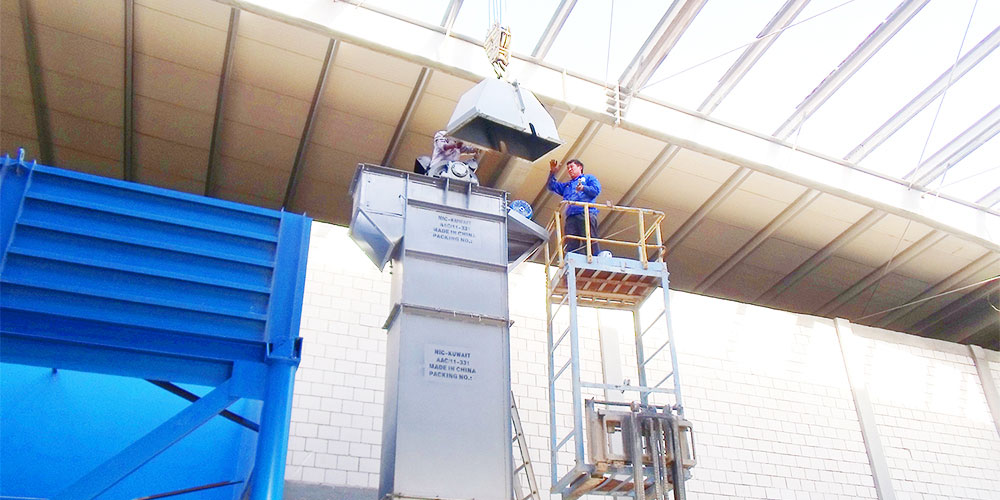

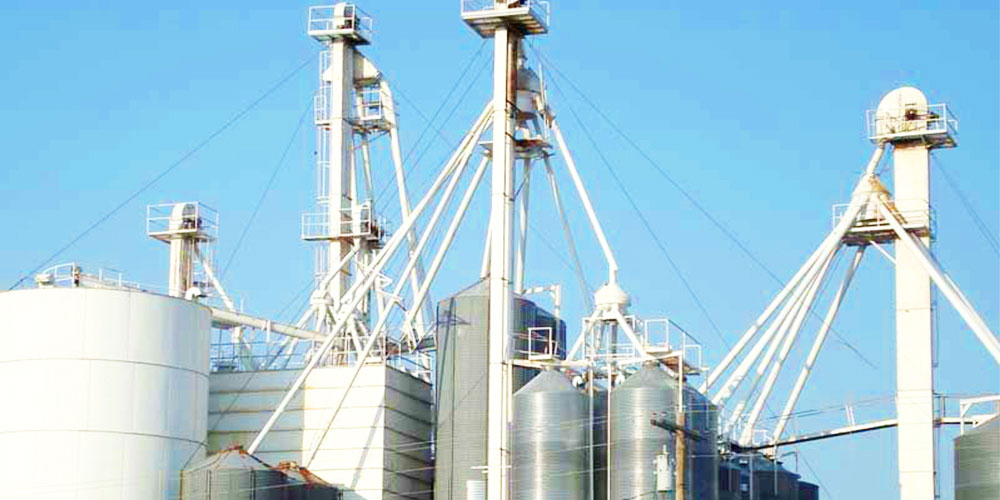

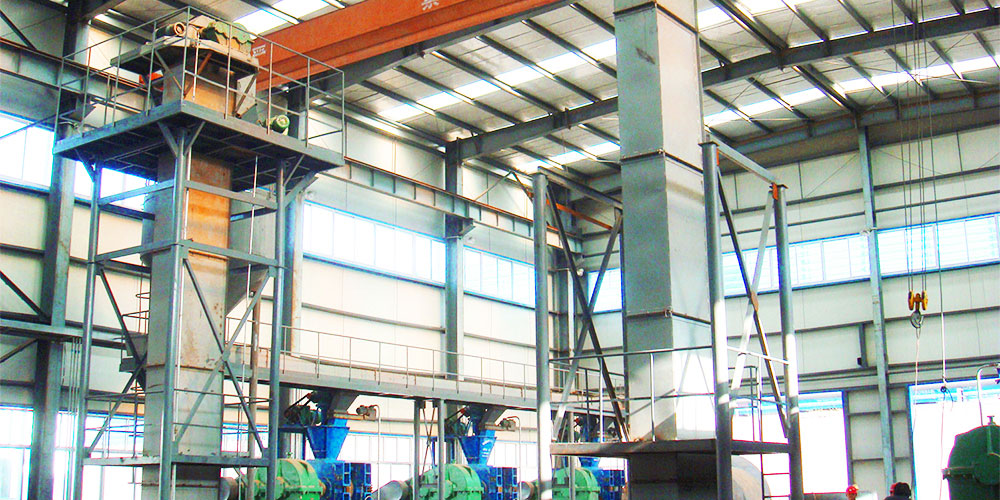

TD type bucket elevator use belt as dragging device, it mainly use for conveying material with bulk densityρ＜1.5t/m³in vertical direction, which can be powdery material, particles, small lump, less abrasive material. Use normal belt, the temperature of conveying material should not exceed 60℃, Use wire belt, conveying material temperature can reach 80℃,use heat resistant belt, material temperature not exceed 150℃, elevating height is 4～30m.Normal model of TD type bucket elevator is TD160、TD250、TD315、TD400 etc. conveying capacity is 3.1～66m³/h. which is widely use in chemical engineering, metallurgy, construction material, food, mining industries etc.
TD type bucket elevator is consist of driving device, top section, bucket, rubber belt, middle cover, middle cover with manhole, bottom section. The features are
1 Using rubber belt as drag device, it has features such as small dead load, flexible, stable operation etc.
2 The middle cover of equipment is welded by bending parts, which make each section of cover have commonality and interchangeability, it ensure cover has good verticality after assembly.
3 Cover and head cover has several access doors, it is easy to check and replace spare parts once fault happens or change wearing parts.
4 Between covers and access door to cover have seal, which ensure no dust escape. Clean and environmental protection.
5 Set reverse stop device, which can preventing accident cause by power off and other problem.
6 Feeding inlet have high position and low position, high position has angle 60° with horizontal, which is used for elevating wet and powdery material. Low position has angle 45° with horizontal, which is used for elevating dry and good scattering material.
