OUTPUT

OUR ADVANTAGE

1. Large scope of elevate: not only elevate common powder, particle and block materials, but also can elevate large abrasion materials;

2. Small power for driving, low energy consumption, save energy effective; compare with roller chain bucket elevator, if elevate same material to same height, energy consume is around 1/3-1/2;

3. Adoption complete sealing design, there is no dust pollution during operation;

4. Shell with indent structure , strong rigidity, high precise, nice appearance.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

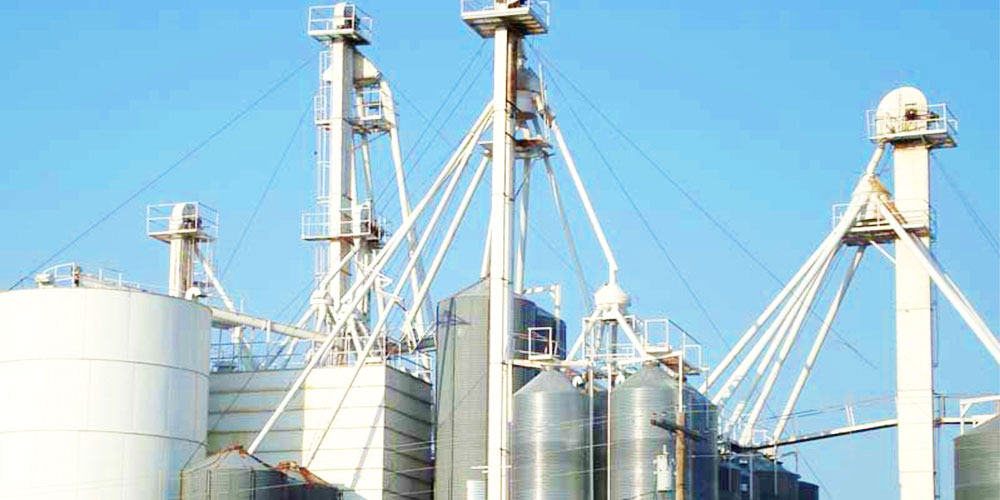

NE plate chain bucket elevator is a product that introduce advanced technology from abroad, it’s a vertical conveyor be common used. It main be used transport powder, particle and block materials, and also for large abrasion material, such as cement, sand, coal, grain, proppant sand and so on. Widely used in construction, power, metallurgy, machinery, chemical, mining industry and so on. The temperature of material is below 200℃usually, the height can be reach to 40 meters. NE type bucket elevator adopt flow-through loading, reducing the bucket wearing from material efficiency. Improve the performance of bucket elevator.

Model	Capacity （m³/h）	Power （Kw）	Speed （m/s）	Bucket			Max. feeding size（mm）	Max. height (m)
Model	Capacity （m³/h）	Power （Kw）	Speed （m/s）	Volume/L	Width/mm	Pitch/mm	Max. feeding size（mm）	Max. height (m)
NE15	5～16	1.5～4	0.5	2.5	250	203	40	≤35
NE30	15～30	1.5～11		7.8	300	305	55	≤45
NE50	30～50	1.5～18.5		15.7	300	305	60	≤45
NE100	70～110	5.5～30		35	400	400	70	≤45

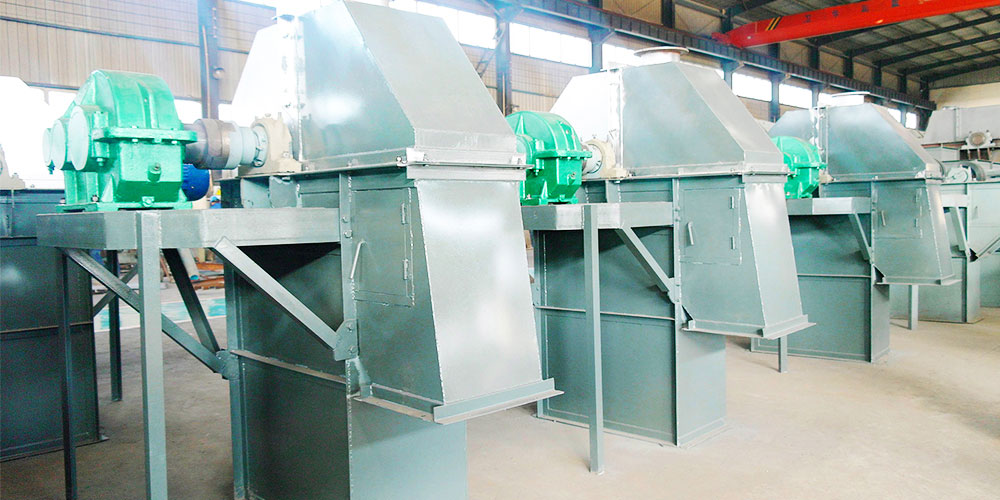

Motor and reducer box are set on the driving plate, fixed on the upper shell of bucket elevator, division the assembling direction according to the driving part position, chain bucket is consist of plate chain and bucket, plate chain on the chain wheel which provide power, bucket is fixed on the plate chain with certain interval. Bucket elevator can be made to different height according to customer’s different demand, to satisfy customer’s requirement. Active chain wheel is connected with pinion , gear reducer and motor, to provide power for chain bucket; driven chain wheel change movement direction of plate chain, make the whole process is closed, to ensure the elevator operation steady; weight box adjust the tightness of plate chain, to avoid deviation phenomenon effective.
