Technical Data

Model: Φ2.5×40-Φ6.0×95

Capacity: 48-1000(t/d)

Main Equipment: DRotary Kiln, Ball Mill, Crusher, Rotary Dryer, Granulator etc

Application: Calcium aluminate, steel, chemical industry etc

OUR ADVANTAGE

1. Calcium aluminate rotary kiln has a simple structure, reliable operation, easy to control the production process and so on.

2. Calcium aluminate rotary kiln can be widely used in chemical, environmental protection, sewage treatment and other fields.

3. New technology Calcium aluminate rotary kiln overcome the high calorific value of coke oven gas, short combustion flame problem, which can make the remaining coke oven gas to be fully utilized.

4. For small and medium-sized iron and steel enterprises, coking enterprises, calcium carbide enterprises, and refractory industries, calcium aluminate rotary kiln have very good energy-saving, environmental protection and high efficiency.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

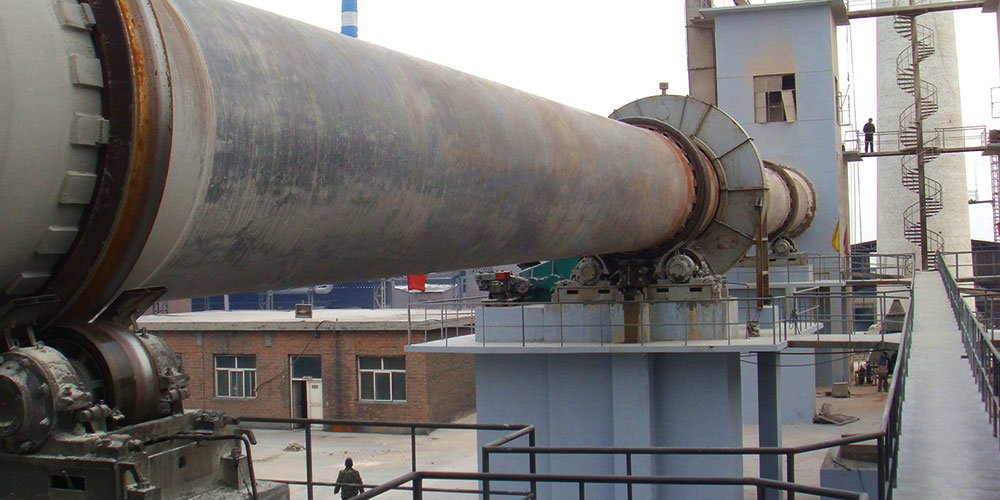

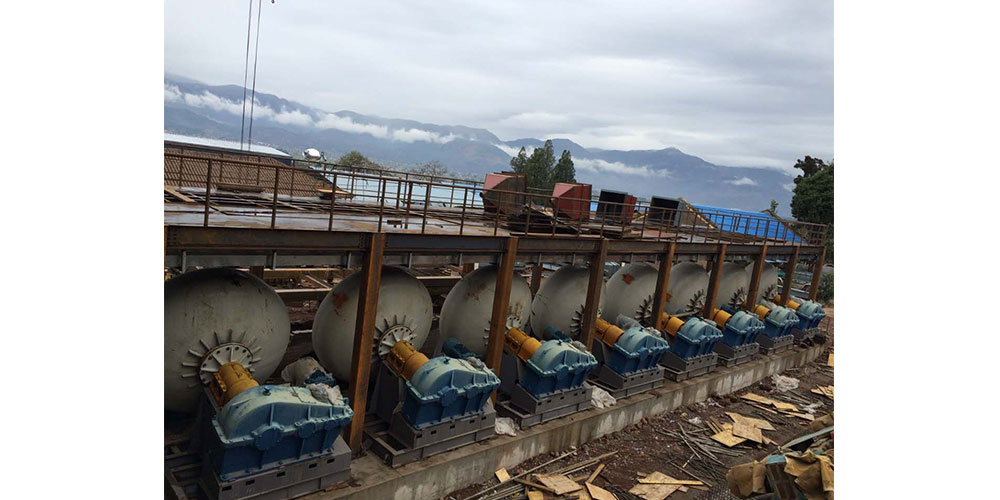

Calcium Aluminate Rotary kiln is the main equipment during the calcium aluminate production lin, which is widely used in calcium aluminate, steel, chemical industry etc. The whole production line includes crusher, vertical roller mill, magnetic separator, ball mill, filter press, dryer, granulator, rotary kiln, cooler, ball mill etc.

Model	Dia (m)	Length (m)	Slope (%)	Capacity (t/d)	Rov (r/min)	Motor (kw)	Weight (t)
Φ2.5×40	2.5	40	3.5	/	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	3	/	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	3.5	/	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	3.5	/	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	3.5	/	0.437-2.18	55	201.58
Φ3.0×45	3	45	3.5	/	0.5-2.47	75	210.94
Φ3.0×48	3	48	3.5	/	0.6-3.48	100	237
Φ3.0×60	3	60	3.5	/	0.3-2	100	310
Φ3.2×50	3.5	50	4	/	0.6-3	125	278
Φ3.3×52	3.3	52	3.5	/	0.266-2.66	125	283
Φ3.5×54	3.5	54	3.5	/	0.55-3.4	220	363
Φ3.6×70	3.6	70	3.5	/	0.25-1.25	125	419
Φ4.0×56	4	56	4	/	0.41-4.07	315	456
Φ4.0×60	4	60	3.5	/	0.396-3.96	315	510
Φ4.2×60	4.2	60	4	/	0.41-4.07	375	633
Φ4.3×60	4.3	60	3.5	/	0.396-3.96	375	583
Φ4.5×66	4.5	66	3.5	/	0.41-4.1	560	710.4
Φ4.7×74	4.7	74	4	/	0.35-4	630	849
Φ4.8×74	4.8	74	4	/	0.396-3.96	630	899
Φ5.0×74	5	74	4	/	0.35-4	710	944
Φ5.6×87	5.6	87	4	/	max4.23	800	1265
Φ6.0×95	6	95	4	/	max5	950x2	1659

Raw ore from the storage tank are directly fed into the calcium aluminate rotary kiln tail by the electronic belt weighing scales, belt conveyors, stable silo, lock air valve, and the kiln tail is only equipped with stable silo to reduce investment. After the ore fed into the calcium aluminate rotary kiln for heating firstly, the ore with the hot air flow in the kiln move reversely. After in the heating zone ore, the ore is heated to the reduction temperature and then into the reduction zone. The flame center temperature of reduction zone is controlled at about 1000 ℃, the reduction zone hot atmosphere temperature is controlled at 700 ℃, then the ore react with the reducing gas for reduction. After entering the cooling zone, the ore meet with incoming gas, the gas is preheated, and the ore is cooled and discharged out of calcium aluminate rotary kiln. After continuous bucket conveyor water cooling, the ore are put into the reservoir to be selected.
