The manufacturing process of ceramic proppant is as following

1. Crushing.

The size of bauxite from mine is around 300~500mm, low moisture, After two-stage crushing which is composed by Jaw crusher and hammer crusher, the size of bauxite will be around 25mm.

2. Dosing.

Bauxite, manganese powder, and other additional material will be transferred to belt conveyor through belt weigher to make sure the suitable proportion .If the moisture of bauxite or other material is more than 6% need to be drying at first .

3. Grinding.

In grinding process ,the main equipment is ball mill and separator to make a close-circuit grinding system .The granulator required the material size will be lower than 300mesh .

4. Granulator.

Raw material powder after grinding stored in hoppers .generally there have 2-3 hoppers, it can be discharged separately, also can be discharged with many hoppers collocation. Raw material powder will be transfer into a small silo, the silo has screw metering device or belt weigher .The material will be conveying to ZK granulator, meanwhile the water will be spraying to granulator by pipeline pump. When granulator rotating, the raw material can be made into various particle size Raw ceramic sand will be transported to rotary sceen by belt conveyor, qualified sand will be calcined in rotary kiln, and the oversize will returns to raw material grinding process. The granulator system is totally automatic, continuously, matching with bag-type dust collector, can purification the exhaust air.

5.Calcining.

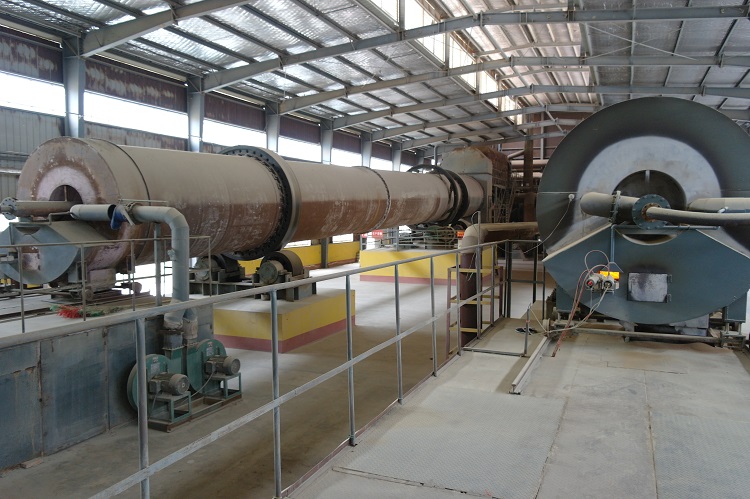

Raw ceramic sand be calcined in proppant rotary kiln , with the revolution and slope of rotary kiln, calcined ceramic sand move toward to the kiln head, meanwhile, pulverized coal spray into the kiln burner from kiln head, raw ceramic sand will be calcined into ceramic sand with high intensity in the rotary kiln.

6. Pulverized coal preparation.

Pulverized coal preparation use ball mill or vertical mill, which can drying the coal with hot wind from kiln hoodsl. Use separator can adjust the fineness of pulverized coal at will; it provides sufficient conditions for full burning of pulverized coal.

7. Fineshed product cooling.

The cooling of ceramic sand genergally use rotary cooler, it is simple and reliable when working, secondary air of cooler absolutely enter to the kiln, multi-channel burner, can save a lot of energy. The temperature of ceramic sand after cooler is very low, can be touched by hand.

8. Screening.

Ceramic sand after the cooler can be directly transported to multistage vibrating screen, it can be divided into many particle grade according to requirements.

Ceramic proppant specification:

I type 0.45-0.9mm (20 mesh-40 mesh) high strength medium density

ⅡType 0.9-1.25mm (16 mesh-20 mesh) high strength medium density

Ⅲ type 1.0-1.70mm (12 mesh-18 mesh) high strength medium density

Ⅳ 0.224-0.65mm (40 mesh-60 mesh) high strength medium density

9. Packing.

Ceramic sand after screening will be transported to different silos , the silos connected with packing machine, finished products will be transferred to storage house to prepare for delivery. All dust points in the process need match with dust collector to purification the exhaust air.
