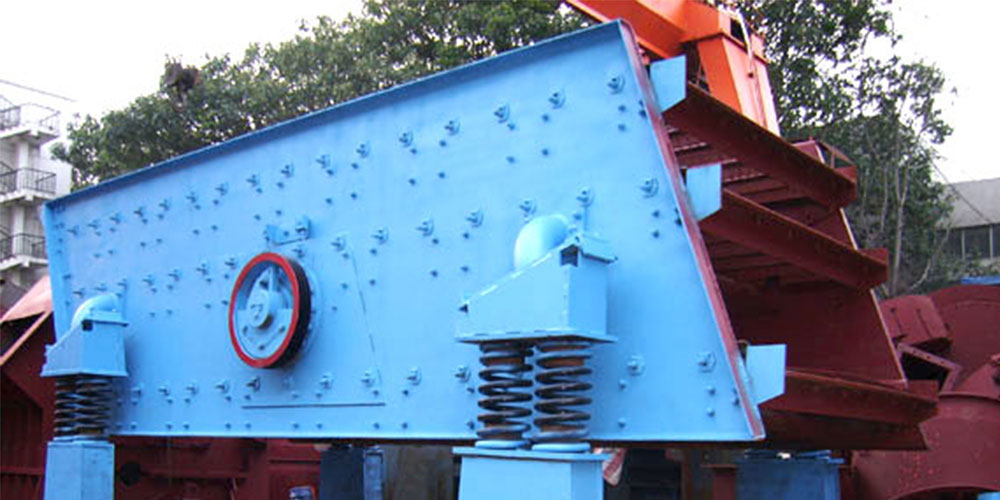

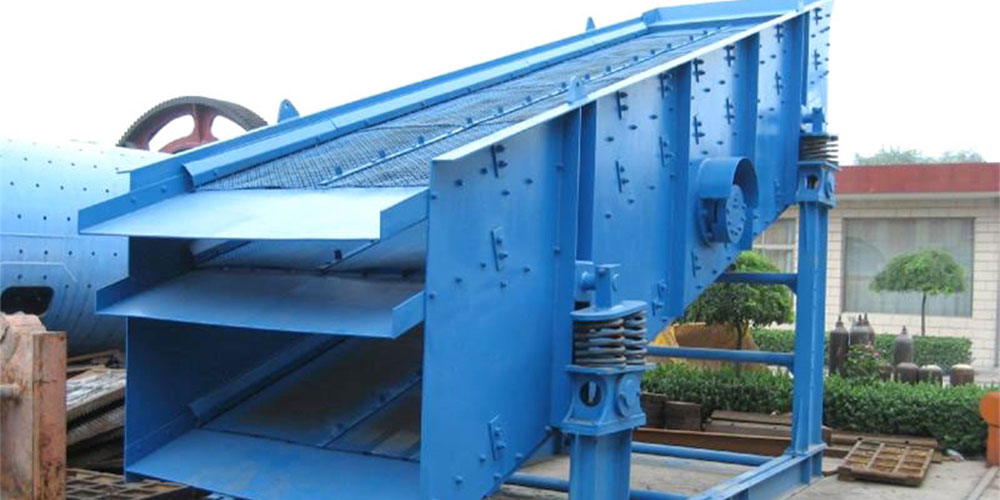

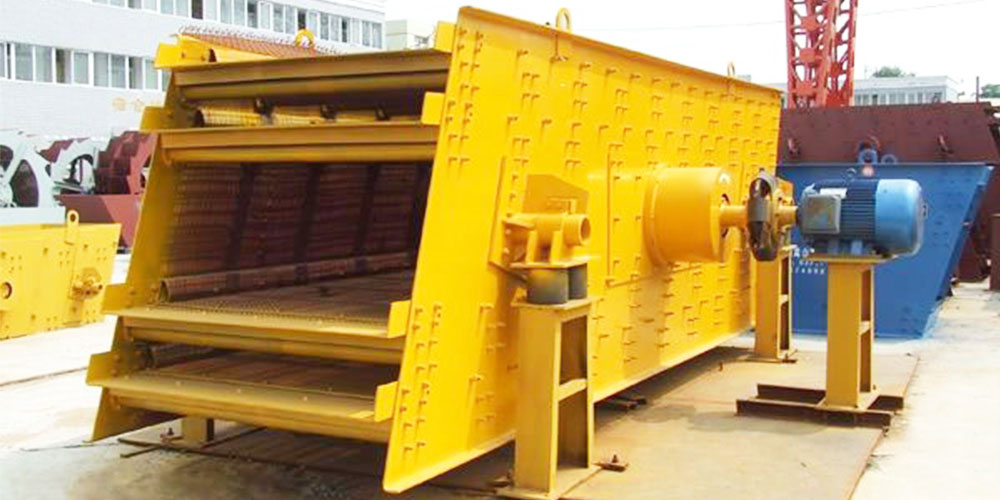

YA Vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.

Application:

It is used for classifying granulate material and small lump material inOre dressing, building material, electricity, chemical engineering.

YA vibrating screen is consist of driving device, screen case, exciter, damper, screen mesh. Feature of structure as below.

1. Driving device

Motor and vibration exciter use belt drive, stable running and less impact for motor

2. Screen case

It use frame structure, side plate is made by cold forming, no welding, high strength. Cross beam connect with high strength bolt. easy maintenance.

3. Damper

Use steel spiral spring as damping device, reliable performance, long service life.

4. Screen mesh

It can use metal wire mesh, rod, cast, welding, punching hole according material property.
