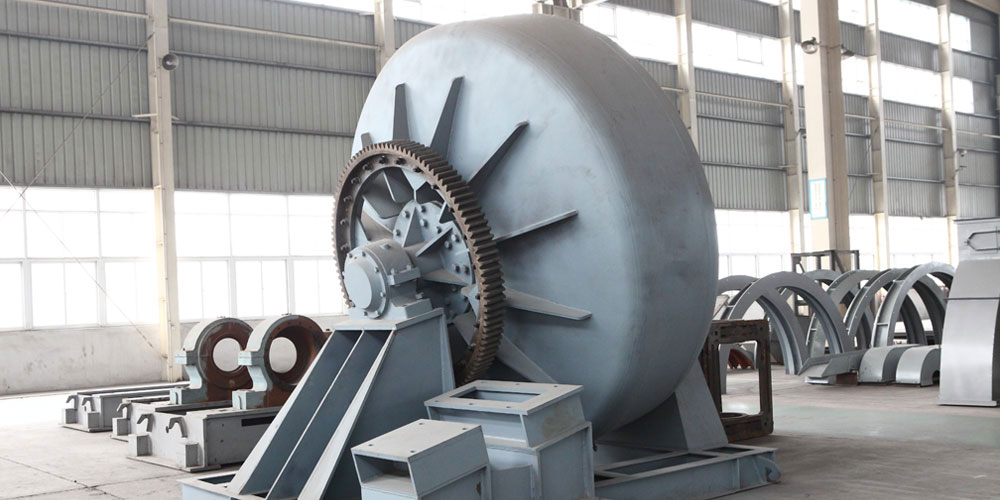

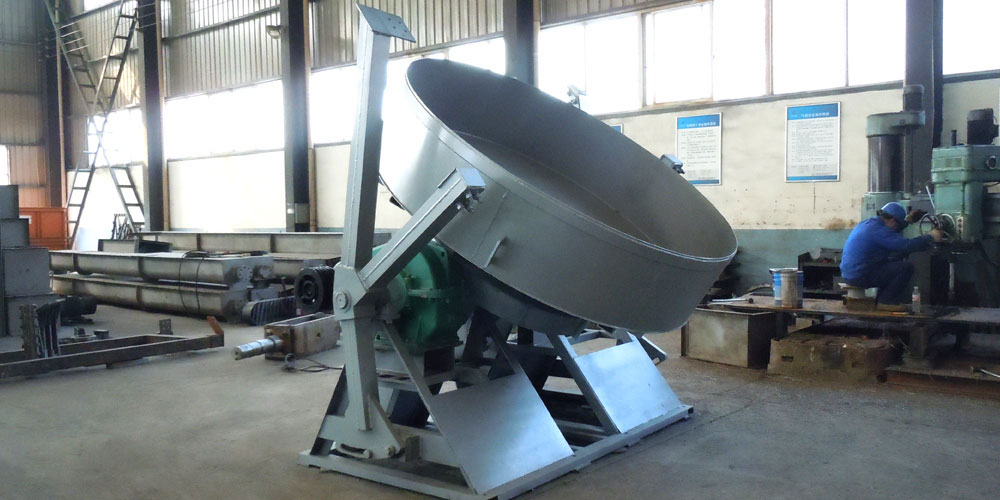

DISK GRANULATOR

OUTPUT

OUR ADVANTAGE

1. Simple structure, easy-to-adjust and excellent in performance.

2. This machine is suitable for conveying of materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.

3. It is widely used in gold Concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.

1

INTRODUCTION
2

SPECIFICATIONS
3

STRUCTURE

Disk Granulator is a cubage feeding equipment. It supplies materials to the next procedure evenly and continuously. Besides, it can bear relatively higher pressure.

As a fine material feeder, it is suitable for non-cohesive materials like coal powder, cement, clinker, limestone, shale, gangue and clay.

Specifcation	Circular				Capacity(t/h)	Motor		Reducer
Specifcation	(mm)	(mm)	slope(o)	speed(rpm)	Capacity(t/h)	Model	Power(kw)	Reducer
YCQ2200D	2200	380	40-60	16	2-3	Y132M2-6	5.5	ZQ400
YCQ2500D	2500	420	40-55	15	3.5-4	Y132M-4	7.5	SW5
YCQ2800D	2800	460	40-55	13.5	5-6.5	Y160M-4	11	SW5
YCQ3200D	3200	500	40-55	12	6.5-8	Y160M-4	11	SW5
YCQ3600D	3600	550	40-55	10.5	8-10	Y160L-4	15	SW6
