Crusher is crushing machinery in more than 50% of the content of the total high capacity and larger than three millimeters of particles. The crusher is widely used in many sectors of mining, smelting, building material, highway, railway, water conservancy and chemical industry.
Our company mainly produces three kinds of crusher as follows:

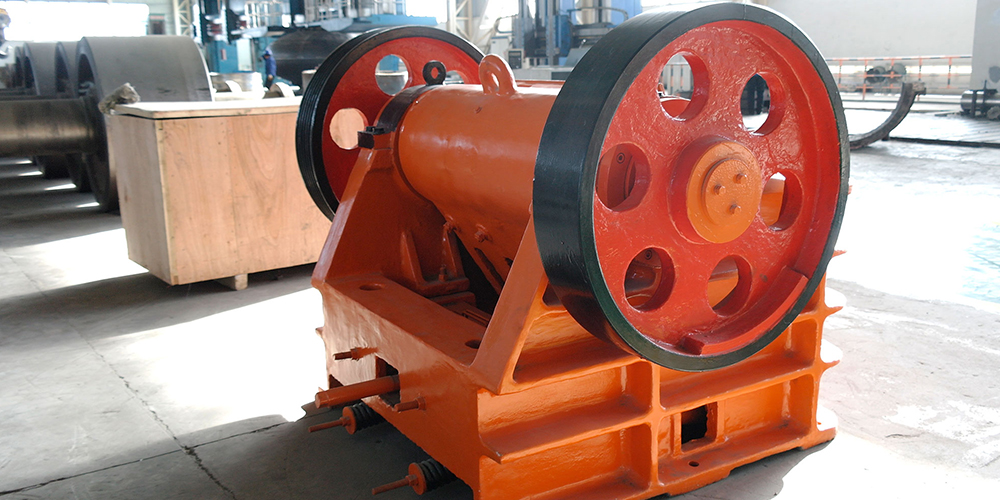

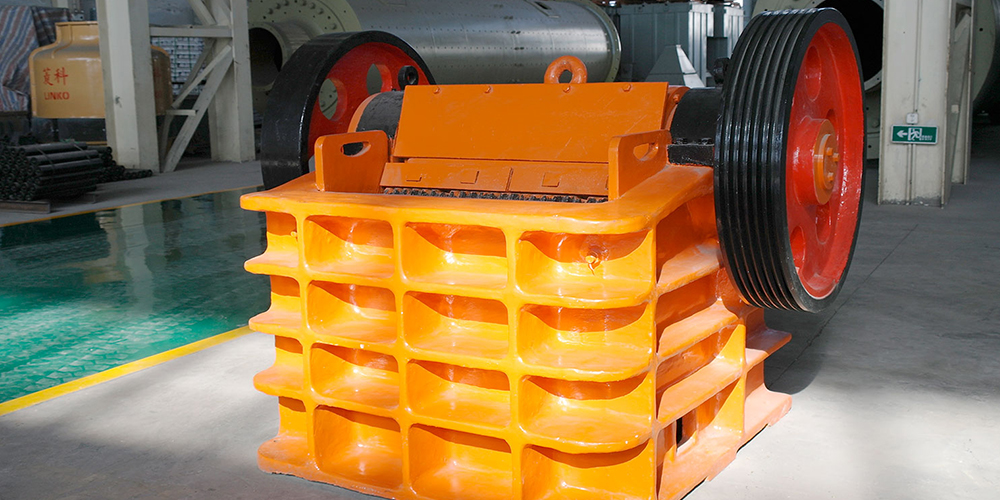

1.PE、PEX Series Jaw Crusher
PE、PEX Series Jaw Crusher is Large-scale tilting complex style, widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and many other industries, dealing with large particle size, compressive strength of not more than the various ore 320Mpa and the rough rocks or broken pieces of work. PE series for the rough-breaking, PEX series used to the small and thin break.
PE、PEX Series Jaw Crusher is a motor-driven through the motor pulley from the triangle and the groove-wheel-drive eccentric shaft, so that by moving the jaw is scheduled to moke a reciprocating motion trajectory, which will enter the fixed jaw plate, the activities of the jaw plate and while the composition of the broken shield material to be broken cavity, and through the lower part of the nesting material from the mouth will be finished.
Features and advantages: the structure of jaw crusher is simple,convenient and reliable maintenance, less operating costs.
2.PCH Series Ring Hammer Crusher
PCH Series Ring Hammer Crusher owns the impact rotor with a special ring hammer. When the material enters into the crusher, it can be crushed by the ring hammer which is revolved the kinetic energy and rushed at the impact plate receiving the second crushing process, then falls on the screen sieve and be cut, extruded, and grinded by the ring hammer. At lase the material up to the standard can be discharged by the machine. Uncrushable material enters into the metal collector and should be eliminated regularly.
PCH Series Ring Hammer Crusher is used to crush cool, especially brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.
3.PF Series Impact Crusher
PF Series Impact Crusher is mainly used in secondary crushing, and can crush material o f crushing compression strength no more than 320 Maps. It is suitable to produce high rank highway, hydroelectric and building material and such industry as stone.
(1)Even crushing function of multi-cavities which is suitable to crush hard material.
(2)Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks
(3)Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
(4)Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.
(5)New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.
1、Frame
It mainly is consist of side panels, front box assembly, rear box, and etc;
2、Eccentric Shaft Rotating Part
It mainly is consist of movable jaw, eccentric shaft, bearings, bearing pedestal, belt pulleys and etc., and it is the major part for dynamic transmission;
3、Crushing Cavity Working Part
It mainly is consist of fixed jaw plate, movable jaw plate, side liners, guard board and etc., and it is the working parts for breaking materials;
4、Safety Device
It is consist of bracket, bracket base, spring, spring rod and etc., and it is the parts that play a security role during crusher works in an abnormal condition.
5、Discharging Gate Adjusting Device
It is mainly consist of adjusting fixed ramp, adjusting sliding ramp, top wire bolt, slide locking lever, and etc., it is used to adjust the size of the discharging gate and to control the discharging particle size.
