Model: GBQ50-6 - GBQ80-12
Capacity: 60 - 107 (m3/h)
Weight: 3894 - 6556 (kg)
Application: Mining, quarry, coal, stone, cement feeding, etc.
1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;
2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.
3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation;
4. The chain has heavy load, high strength and high impact resistance because of heat treatment; chain plate joint sleeve use alloy steel carburizing with high abrasion resistance;

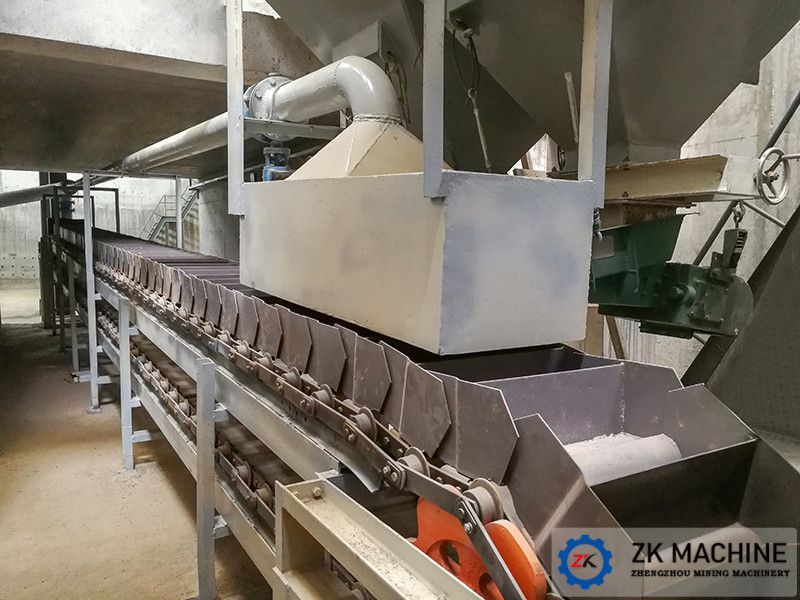

Apron feeder is one of the machines for continuously transporting materials. It is widely used to transport large-volume materials to various crushing equipment uniformly and continuously in a short distance. Apron feeder can perfectly solve the transportation problem of loose and block materials as well as large feeding quantity problem in large and medium production lines. It is especially suitable for transporting large, high temperature and sharp materials, and it can reliably work in harsh and humid outdoor environments. Now the apron feeder has been widely used in cement, building materials, metallurgy, mining and other industrial sectors for its superior performance advantages.
How to choose the machine suitable for you:
1. What’s your throughput? - Such as 5 t/h, 10 t/h, 20 t/h, etc.
2. How long you need conveying distance? - Such as 5m, 20m, 50m, 100m, etc.
3. What’s material you need conveying? - Such as coal, cement, stone, ore, etc.
4. What’s the angle of inclination? - Such as 5°, 10°, 15°, 25°, etc.
Tell us those data, we can help you choose the suitable machine for you.
|
Model |
Chain plate |
Speed (m/s) |
Feed size (m3/h) |
Capacity (m3/h) |
Power (kw) |
External dimensions(L*W*H) |
Weight (kg) |
|
|
Width (mm) |
Length (mm) |
|||||||
|
GBQ50-6 |
500 |
6000 |
0.16 |
≤160 |
60 |
7.5 |
7476×2745×980 |
3894 |
|
GBQ50-9.5 |
9500 |
10976×2720×980 |
5048 |
|||||
|
GBQ50-12 |
12800 |
0.1 |
41 |
14276×2796×980 |
6183 |
|||
|
GBQ50-14 |
14000 |
0.16 |
60 |
11 |
15476×2826×980 |
7315 |
||
|
GBQ80-6 |
800 |
6000 |
107 |
7.5 |
7476×3045×980 |
4274 |
||
|
GBQ80-10 |
10000 |
11476×3045×980 |
5832 |
|||||
|
GBQ80-12 |
12000 |
11 |
13476×3126×980 |
6556 |
||||
Apron feeder is content head roller, apron and chain device, tail roller tension device, material protection device, frame and driving device
