NE PLATE CHAIN ELEVATOR







Technical Data

Model: NE15 - NE400



Capacity: 10 - 450 (m³/h)



Max. feeding size: 40 - 130 (mm)



Max. height: ≤ 45 (m)

ADVANTAGE

1. Large scope of elevate: not only elevate common powder, particle and block materials, but also can elevate large abrasion materials;

2. Small power for driving, low energy consumption, save energy effective; compare with roller chain bucket elevator, if elevate same material to same height, energy consume is around 1/3-1/2;

3. Adoption complete sealing design, there is no dust pollution during operation;

4. Shell with indent structure , strong rigidity, high precise, nice appearance.

INTRODUCTION

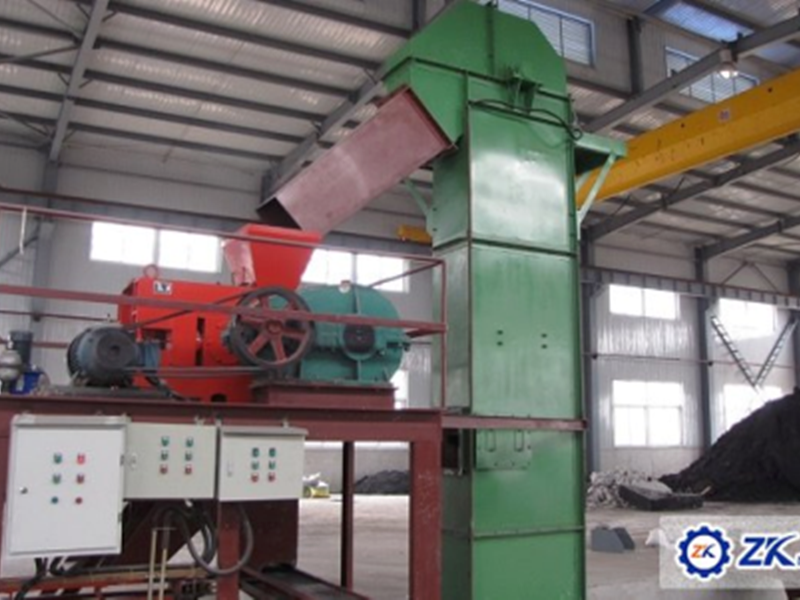

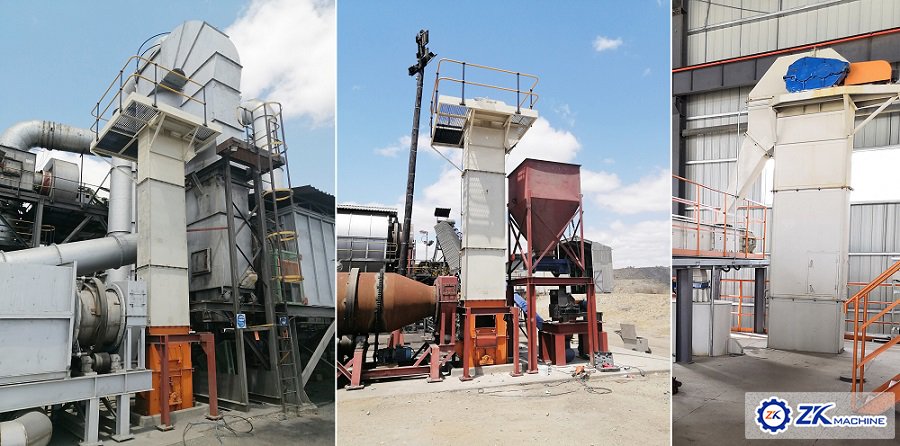

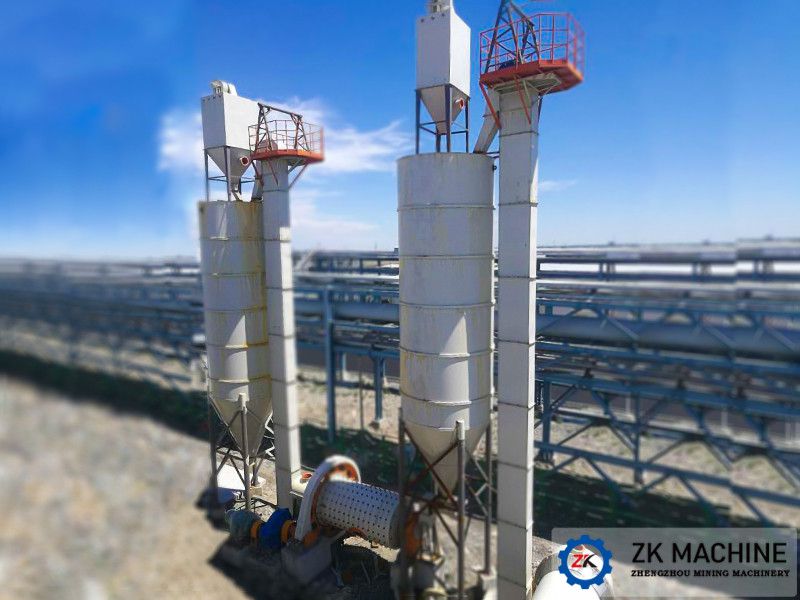

NE series bucket elevator is a chain type vertical conveyor be common used in many industries. It main be used transport powder, particle and block materials, and also for large abrasion material, such as cement, sand, coal, limestone, proppant sand, etc. Widely used in construction, power, metallurgy, machinery, chemical, mining industry and so on.

NE bucket elevator adopt flow-through loading, reducing the bucket wearing from material efficiency. Improve the performance of bucket elevator. The temperature of material is below 200℃ usually, and the conveying height can be reach to 45 meters.

SPECIFICATIONS

Model

Max Elevation Capacity (m³/h)

Power (kW)

Elevation Height (density0.6~2.0t/m³)

NE15

16

1.5-4.0

6.28-30.78

NE30

31

1.5-11

4.13-47.63

NE50

60

1.5-18.5

4.13-49.13

NE100

110

5.5-30

6.65-49.15

NE150

165

5.5-45

6.10-52.60

NE200

220

15-75

5.73-47.23

NE300

320

15-90

4.23-54.73

NE400

441

15-132

12.6-54.7




PROCESS

Motor and reducer box are set on the driving plate, fixed on the upper shell of bucket elevator, division the assembling direction according to the driving part position, chain bucket is consist of plate chain and bucket, plate chain on the chain wheel which provide power, bucket is fixed on the plate chain with certain interval. Bucket elevator can be made to different height according to customer’s different demand, to satisfy customer’s requirement. Active chain wheel is connected with pinion , gear reducer and motor, to provide power for chain bucket; driven chain wheel change movement direction of plate chain, make the whole process is closed, to ensure the elevator operation steady; weight box adjust the tightness of plate chain, to avoid deviation phenomenon effective.
