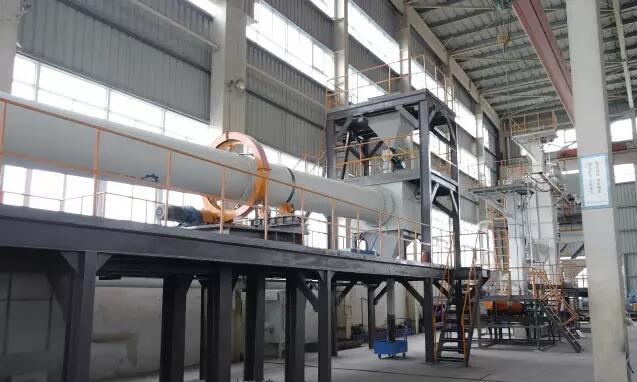

The start of Chinese large capacity ceramic sand rotary kiln

Ceramic sand rotary kiln belongs to building material equipment, which can be divided into cement rotary kilns, metallurgy chemical kilns and lime rotary kilns according to different materials. In the operation of ceramic sand rotary kiln, it should pay attention to the operation specification, in order to ensure the normal operation of ceramic sand rotary kiln, and avoid accidents

Notify the fan room to operation and oil pump room to the oil after all ready for work, meanwhile start the blower to the ignition. Ignite with the waste cloth soaking the oil, so that the oil nozzle burning. By adjusting the throttle and the damper, the ignition temperature increases rapidly, after 5 to 10 minutes, the ignition temperature can rise to 1150 -- 200 degrees centigrade.

At this moment, the finished section can start the belt conveyor, jaw crusher, vibrating screen, bucket elevator, mechanical vibration conveyor and single-roll multi-hammer crusher successively. After the operation is normal, notify the finished pellet section that the raw pellets are conveyed. As the raw pellets are gradually filled with the sintering trolley, start the ceramic sand rotary kiln and adjust the traveling speed of the trolley, the ignition temperature and the suction box valve, which calcined in a stable manner.

If the trolleys of ceramic sand rotary kiln are all empty, cover with raw material ball (or fired ceramic) in the bottom of the ignitron before the ignition, and pave the canvas in the furnace grate of the trolleys on the top of in 2 to 6 suction box on to prevent air leakage. In addition to suction box, all 2 to 6 suction box valve should be closed. After the running of ceramic sand rotary kiln fabric, with the trolley walking, from the tail will be rolled up the corresponding canvas, the suction box valves have also been opened until the trolley covered full with the raw meal pellet to the last one on the 6th suction box.
