Ceramsite sand rotary kiln is one of new type energy-efficient rotary kiln, which is different to the traditional rotary kiln. Henan Zheng Mining Machinery Co., Ltd. technology research and development center launched the structure ceramsite sand rotary kiln based on the structure of magnesium rotary kiln, cement rotary kiln, and lime rotary kiln and so on.

Structure of ceramsite sand rotary kiln

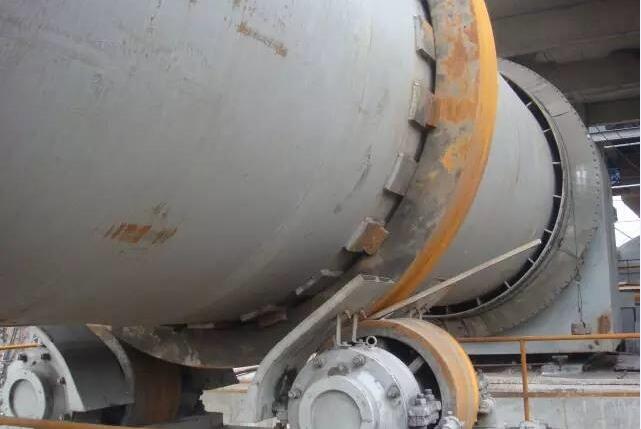

Ceramsite sand rotary kilns are consists of shell, drive device, support and thrust roller device, kiln inlet sealing, kiln head hood and combustion device and other components. Ceramsite sand rotary kiln shell is heated rotating parts, and made of high-quality calm steel coil welding. Ceramsite sand rotary kiln shell is supported on the supporting device of the 2--7 sliding or rolling bearing by the wheel belt and is provided with a mechanical or hydraulic blocking wheel in one or several of the supporting devices to control the axial movement of the ceramsite sand rotary kiln shell. The drive device rotates the shell at the required rotational speed by a ring gear provided in the middle part of ceramsite sand rotary kiln shell. Because of the needs of the installation and maintenance, the larger ceramsite sand rotary kiln is equipped with the auxiliary drive device which rotates shell at a very low rotational speed.

In order to prevent the entry of cold air and the overflow of flue gas dust from shell, there are equipped with reliable kiln inlet and kiln head sealing device respectively in feeding end (the inlet) and discharging end (the head) of the ceramsite sand rotary kiln shell.

The ceramsite sand rotary kiln shell is provided with the device of temperature measuring and sampling hole, and pressure measuring element is arranged on the kiln head hood. The larger size of ceramsite sand rotary kiln can also set an infrared thermometer to monitor the temperature of the shell.

Ceramsite sand rotary kiln designed and produced by Henan Zheng Mining Machinery Co., Ltd., is in line with international environmental quality standards. Welcome to buy ceramsite sand rotary kiln specialized in the production of ZK.
