Project Overview:

Project Location: Hubei Yihua, China

Construction unit: Hubei Yihua Insurance Powder Factory

Product Name: Waste residue incineration

Production Capacity: 16t / h

Services: rotary kiln, two combustion chamber design, manufacture, installation and commissioning.

Project Description:

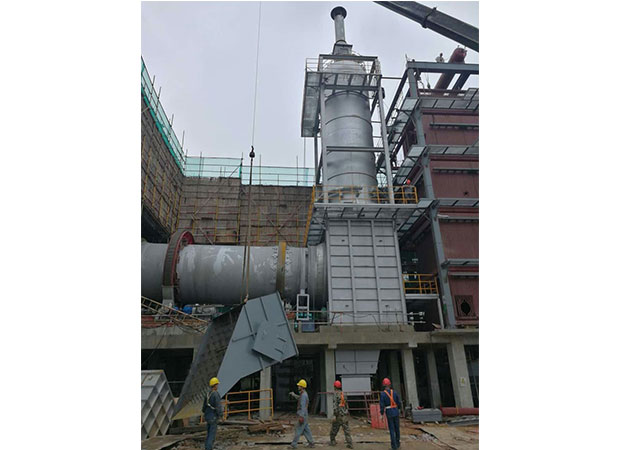

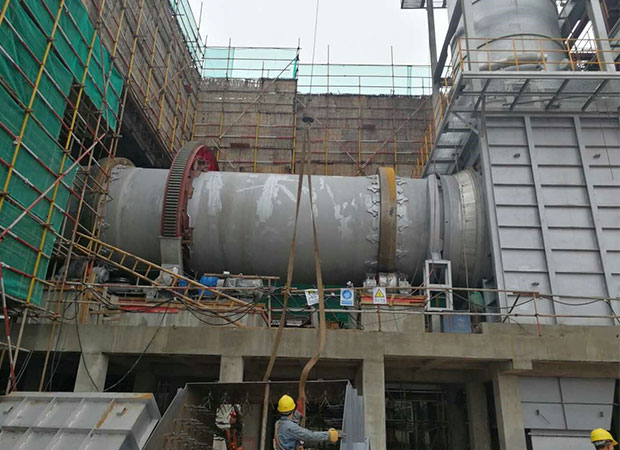

In this project, the rotary kiln is used to incinerate the waste residue. Since the waste residue generates dioxins during incineration, it is necessary to set up a secondary combustion chamber at the kiln end of the rotary kiln to eliminate dioxins in the flue gas.

Equipment Parameter:

1.Rotary kiln

Power: 380V / 50Hz / 3φ, motor energy level IE2, insulation class F, protection class IP54, explosion-proof grade dII BT.

Kiln specifications: Φ2200X18000 (mm)

Equipment slope: 3: 100

Kiln main material: Q345R

Kiln head and kiln tail seal form: fish scales plus labyrinth

Support form: two support

Transmission: single-ended two-stage drive, pinion supported by a double bearing

Operating temperature of rotary kiln: 600 ℃ ~ 700 ℃

Lining requirements: 200mm mullite brick +100 insulation layer

2.Two combustion chamber

Two burning chamber material: Q345

Two combustion chamber operating temperature: 1100 ℃

Main Equipment:

No.Equipment NameModel    Qty

1Rotary KilnΦ2.2×18m1 Set

2Two combustion chamberadaptation1 Set
