Project Description:

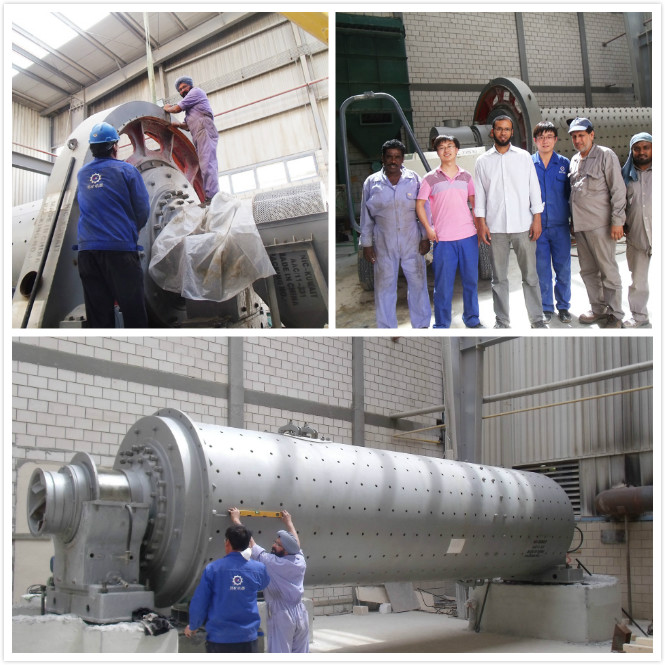

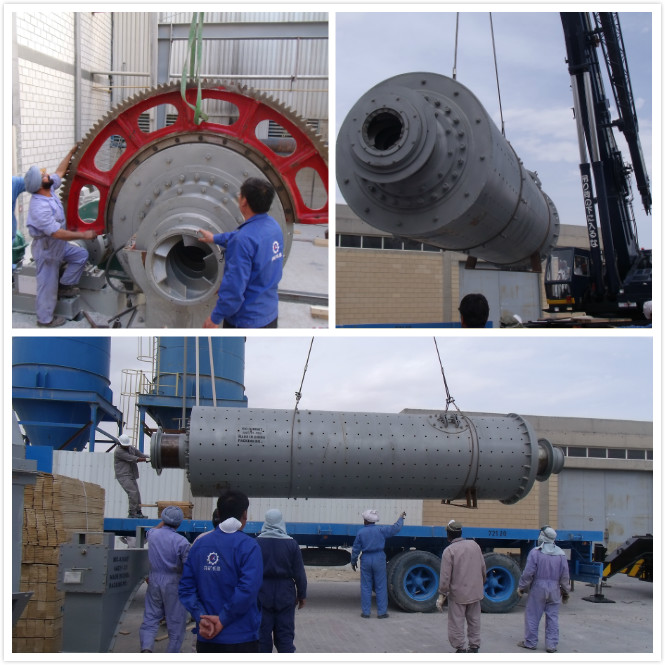

ZK Corp builds a silica sand grinding station with capacity of 80 tons per day in Kuwait. The project adopt the open circuit production technology to produce the raw material for bricks. The main grinding equipment is ball mill. It has the feature of low investment, short construction period, easy operation and control, high reliable and durable, and high running rate. The final ground sand has the features of good shape and proper size distribution. In the grinding process, ball mill technology has occupied the leading position in the industry. When machine selection, we have considered the high temperature environment effective on the mechanical and electrical equipment.
Main Equipment:
Ball Mill, Belt Conveyor, Screw Conveyor, Bucket Elevator, Dust Collector etc;
Technical Parameter:
Ball Mill Model | Φ1830x7000 |
Production Capacity | 6-8t/h |
Feeding Size | ≤25mm |
Output Size | 0.074-0.4mm |
Electromagnetic Vibration Feeder | GZ3 |
Capacity | 25 t/h |
Feeding Size | 75 mm |
Double-amplitude | 1.75 mm |
Belt Conveyor Model | B500x19.5m 20° |
Capacity | 87 t/h |
Speed | 1 m/s |
Power | 7.5 kW |
Bag Filter Model | ZM200 |
Filtration Area | 200 M² |
Air Volume | 12000-14400M³/h |
Bag Quantity | 200 |
Screw Conveyor Model | GX 300x3m |
Diameter | 300mm |
Length | 3000mm |
Power | 2.2 kW |
Bucket Elevator | TH315X8.5m |
Capacity | 28M³/h |
Bucket Volume | 6L |
Bucket Width | 315mm |
