Project Overview:

Yunan Chihong Zn & Ge Co., Ltd was established on July 18, 2000, and became an A-share listed company on the Chinese stock market on April 20, 2004 (a-share code is 600497); it is the largest non-ferrous metal company in China One of the smelting enterprises; the first enterprise in Yunnan Province to be listed as the first batch of national circular economy pilot units. The company has more than 7,600 employees and has an annual production capacity of 600,000 tons of ore, 160,000 tons of zinc products, 50,000 tons of lead products, 10 tons of germanium products, 260,000 tons of sulfuric acid, and 120 tons of silver. The company has full-process experimental equipment. The customer uses smelting slag to recover secondary zinc oxide. The project needs to make the raw materials into particles after mixing. The entire system needs to be verified in the laboratory after adding the process. A professional laboratory granulator is required.

Project Description:

The customer's raw materials are small particles of smelting slag and ground coke powder. After adding water, the particles are formed and then calcined in the kiln. The granulator requires installation devices, simple operation, adjustable speed, adjustable angle, beautiful appearance, and height suitable.

Project Parameters:

The customer uses a φ500m ball disc for granulation. The granulator can be used for frequency conversion and speed regulation through the speed control knob on the operation panel. The operation panel is equipped with an emergency stop button. When an unexpected situation occurs in the environment of the equipment, an emergency shutdown is required. The stop device can quickly reduce the equipment speed to zero. Ensure the safety of operators.

Equipment Used:

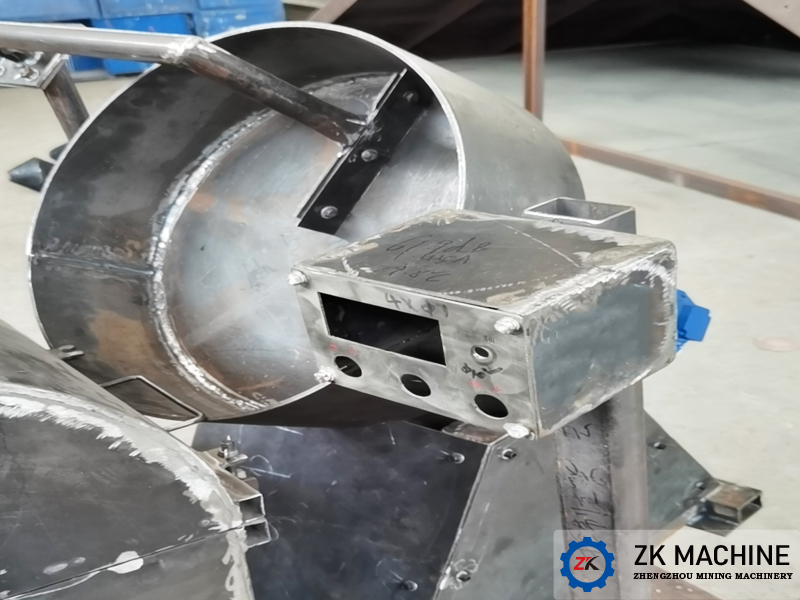

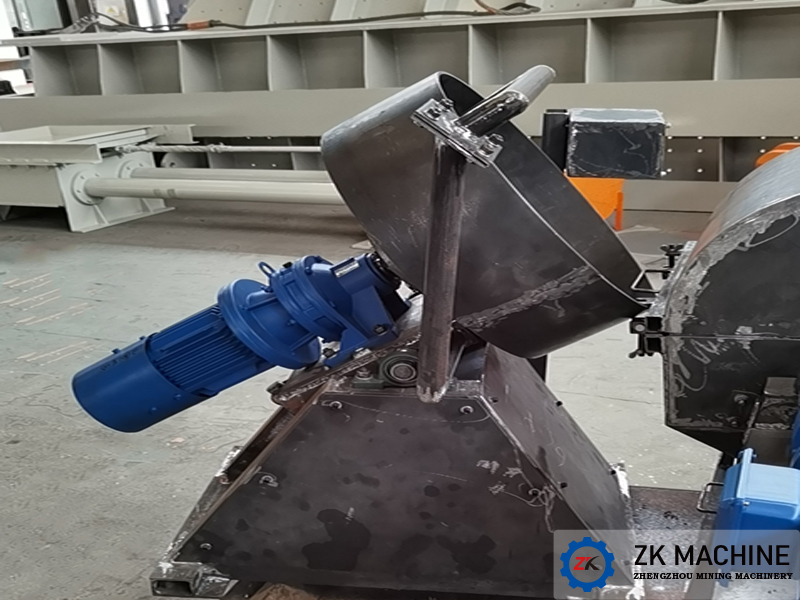

Φ500mm Experimental Disc Granulator

Equipment Diagram:
