Project Description:

The owner of this Zircon sand grinding project is the supplier of Zircon sand in Iran. Raw materials: 45Micron Zircon sand, use two ways to grind, dry continuous grinding and wet batch grinding. Final products: 45Micron Zircon sand.

Project Technical Parameter:

Contract signature date : 2022-9-30

Raw materials: Zircon sand

Capacity: 400kg/h

Motor power: 132KW

Machinery usage: Φ1.83×5.9m dry continuous ball mill, Φ2.4×3.65m wet batch ball mill.

Project Design Principles:

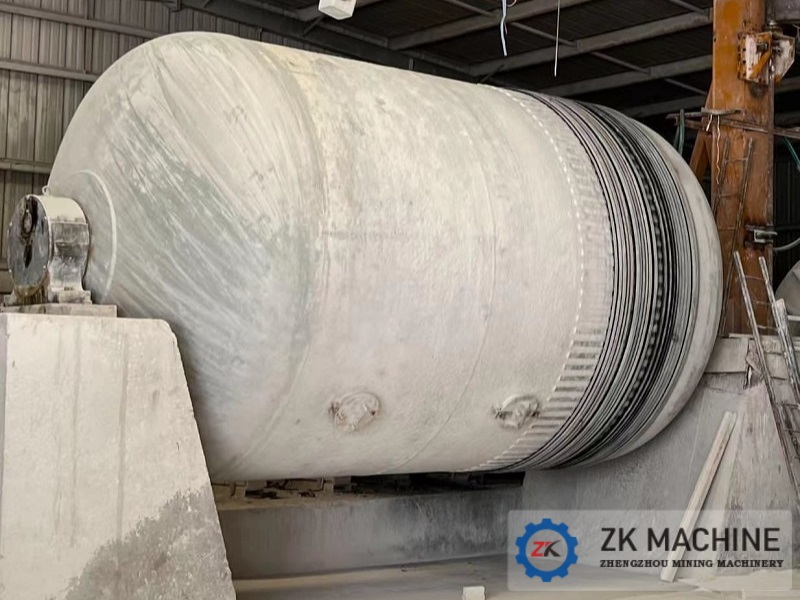

1.Wet batch ball mill: belt driving way, with Two heads type: Circular arc(No leaking). The liner chooses: Alumina ceramic liner and Alumina grinding ball. Wet type batch mill: machine should manufacture according the foundation drawing from Client.

2. Dry continuous ball mill, raw material not connect with metal steel so feeding equipment and discharge equipment choose materials SS304. The liner chooses: Alumina ceramic liner and Alumina grinding ball.

3. Material must not connect MS, zircon sand connect parts are all covered SS304 or lining
