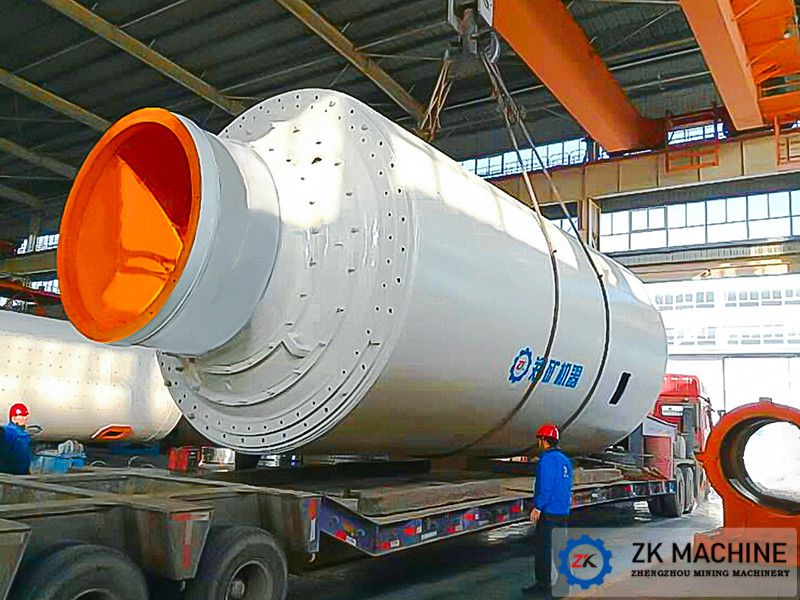

Air swept coal mill is an ideal coal processing equipment that can both grind and dry, with characteristics of high efficiency, energy saving, environmental protection, 85% and above of its grinding coal can pass through the 200 mesh screen, and the water content can be under 2%.

Air swept coal mill mainly consists of feeding device, main bearing, rotating part, discharging device, drive part and lubricating system.

Application of Coal Ball Mill:

Air-swept coal mill is the key equipment to grinding coal for the rotary kiln and industrial furnace. It can widely used in electricity, building materials, metallurgy, chemical industry, etc.

How it works

Raw coal is fed into Air swept coal mill via the feeding device. The hot air goes into the cylinder through air inlet pipe. As the cylinder rotates, the coal does heat interchange with the hot air and is crushed and pulverized. Meanwhile, coal powder is carried out of Air swept coal mill via discharging device by the hot air. The larger coal powder will be brought to Air swept coal mill with the hot air and be pulverized again.

Key advantages

1. Low energy consumption

2. Long service life of new material liners and easy maintenance.

3. High continuous production capacity with stable operation and performance.

Design features

1. The reasonable proportion of ball and revolving cylinder increases the capacity, which is 15%-25% higher than the average.

2. The application of hydraulic oil station for main shaft bush lubricating has extended the service life of the bush. The use of quill shaft can decrease the volume of lubrication oil.

3. Main bearing base adopts water-cooled cycling device to reduce the working temperature of bearing.

Supply scope

Diameter   1200mm-2900mm

Length     2400mm-4700mm

Capacity    1.4-16 tons per hour

Output size  0.074-0.8mm

Henan ZK Corp has rich experience on coal grinding plant project, design air swept coal mill according to the customer's requirements. If any questions about coal grinding mills, please turn to our professional teams for help.
