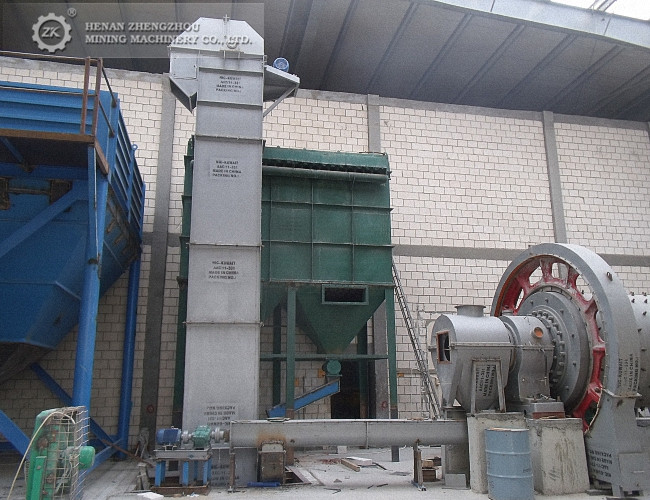

Bucket elevator is one type of lifting device commonly used in vertical conveyor equipment. The bucket elevator conveyorhas the characteristics of small footprint, high conveying efficiency and economical benefits.

In industrial production, a suitable bucket elevator is usually selected from factors such as material (particle size, loose density t/cubic, temperature, humidity, viscosity, etc.), conveying volume, lifting height,etc.

1.Hopper Form of Bucket Elevator:

a, shallow hopper (Q): the front wall has a large slope and a small depth, which is suitable for materials with poor moisture and poor dispersion.

b. Deep hopper (S): The front wall has a small slope and a large depth, which is suitable for dry and diffuse materials.

2.Hoist Traction Component Types Of Bucket Elevator:

a. Tape: it is has characteristics of low cost, low quality, high speed, stable operation and low noise, but the strength of the tape is low. The fixed position of the hopper on the tape is weak, so the lifting height is short.

b. Chain hoist: Contrary to the tape, it allows a large lifting height, but the chain drive generates dynamic loads.

3.Loading Characteristics of Bucket Elevator:

a, draw type: mainly used to transport powdery, small particles, small pieces of non-abrasive and semi-abrasive bulk materials, without of resistance, the speed is 0.8 ~ 2m / s.

b. Inflow type: It is mainly used to transport large block and abrasive materials. The hopper is arranged very densely. The speed of the hopper is low, generally not more than 1m/s, and it is mostly used for gravity unloading.

4.Discharge characteristics of Bucket elevator:

a, centrifugal discharge: it is suitable for powdery, small particles, small pieces of material with good dispersion, mainly used for belt hoists, the speed is fast, generally is 1~5m / s,

b. Gravity unloading: suitable for large block and abrasive materials, and suitable for continuous hopper arrangement, the bucket speed is slow, and the speed is generally 0.4~0.6m/s.

c. Mixed discharge: the speed is generally 0.6~0.8m/s.

5. Installation method: vertical, inclined

Through these 5 simple features, we can make a simple selection of the bucket elevator. While according to the conditions of the working conditions, the climate is different. We also need to select the bucket elevator according to the specific parameter data.
