TD Type belt elevator is one of ZK main production, and it is usually used for conveying powdery, granular and other bulk materials in electric power industry, metallurgy industry, building materials industry, light industry, food industry, mining industry and other industries. ZK is as a professional mining elevator manufacturer, can provide low-price mining elevator.

The specific installation method of TD-type belt elevator between lifting belt and the hopper is as follows:

1.    Install the hopper, lifting belt, spring washer, and nut, and so on together on the ground, and tighten the nut.

2.    Hoist lifting belt from the assembly section to the drive drum, down after the drum, the tail will be connected to the connector.

3.    Open the shell on the head, and then tight handle once again, under the circumstances of without damaging to the nut, should be to increase the tightening torque.

4.    TD-type belt elevator should be connected in the head and then install the hopper, but not continuous installing, because the turning gear will be more and more difficult. Install the bucket alternately, to make the number of up and down hopper bucket close to the same as far as possible. Tighten the hopper nut.

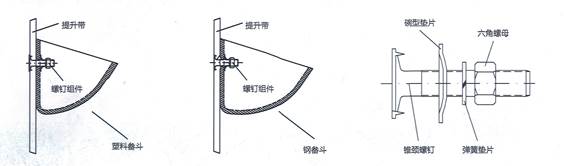

Installation diagram of lifting belt and hopper

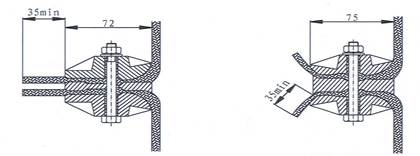

5.     Connection type of tape

6.    After the joints are connected, it is better to break the longitudinal wire rope of the tape joint from the adhesive tape, break the wire rope of the second section and twist it together to form a whole.

7.    In order to prevent the work of tail roller up and down movement is too large, elevator in the tail of the elastic device, hoist run, tensioning device plays a role in controlling the tail shaft channeling. After the elevator is installed, the entire hopper and the traction parts are acting on the head wheel. The spring tensioning device is adjusted to the nut which causes the spring to press the screw through the spring seat.
