Ceramic sand is a kind of products of ceramic particle, which has a high fracturing intensity, mainly used for oilfield as downhole proppant, the usage is to increase the output of oil and gas. So ceramic sand is a kind of green and environmental protection products.

Ceramic sand made of high quality bauxite and other additive material, granulating and calcining to increase the strength and density. It’s a substitute of natural quartz sand, glass sand, metallic sand and other low intensity proppant. Ceramic sand is the best proppant to increasing oil and natural gas output. In brief, the process of manufacturing ceramic sand is crushing   →  dosing   → grinding   →   granulating  →    calcining   →   cooling  →   screening  → packing.

Following is the description ceramic sand process:

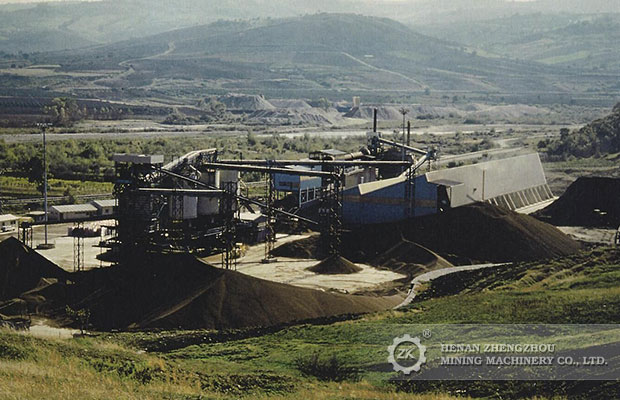

1.Crushing

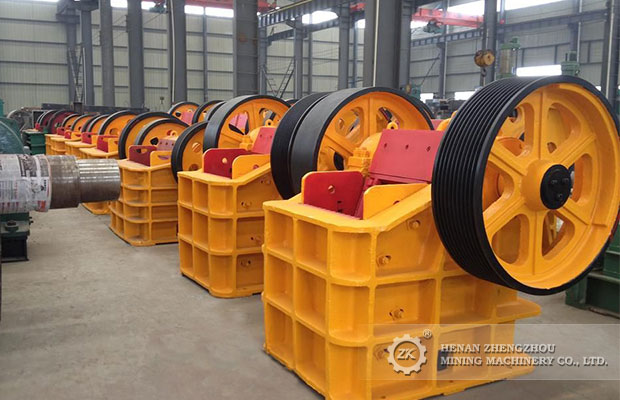

The size of bauxite from mine is around 300~500mm, low moisture, After two-stage crushing which is composed by Jaw crusher and hammer crusher, the size of bauxite will be around 25mm.

2. Dosing
Bauxite, manganese powder, and other additional material will be transferred to belt conveyor through belt weigher to make sure the suitable proportion .f the moisture of bauxite or other material is more than 6% need to be drying at first .

3. Grinding
In grinding process, the main equipment is ball mill and separator to make a close-circuit grinding system. The granulator required the material size will be lower than 300mesh.

4. Granulating
Raw material powder after grinding stored in hoppers generally there have 2-3 hoppers, it can be discharged separately, also can be discharged with many hoppers collocation.

Raw material powder will be transfer into a small silo, the silo has screw metering device or belt weigher. The material will be conveying to granulator, meanwhile the water will be spraying to granulator by pipeline pump. When granulator rotating, the raw material can be made into various particle size. Raw ceramic sand will be transported to rotary screen by belt conveyor, qualified sand will be calcined in rotary kiln, and the oversize will returns to raw material grinding process.
The granulator system is totally automatic, continuously, matching with bag-type dust collector, can purification the exhaust air.

5.Calcining

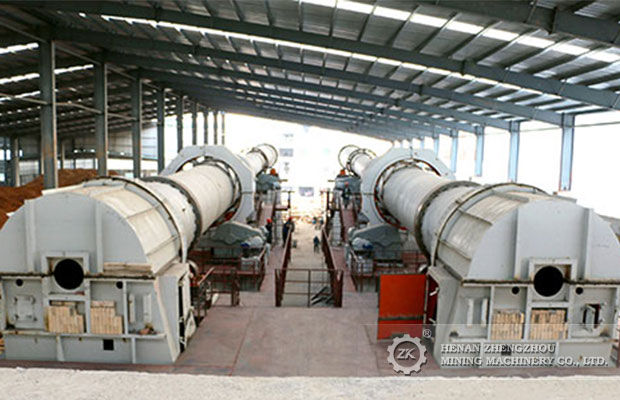

Raw ceramic sand be calcined in rotary kiln , with the revolution and slope of rotary kiln, calcined ceramic sand move toward to the kiln head, meanwhile, pulverized coal spray into the kiln burner from kiln head, raw ceramic sand will be calcined into ceramic sand with high intensity in the rotary kiln.

6. Pulverized coal preparation
Pulverized coal preparation use ball mill or vertical mill, which can drying the coal with hot wind from kiln hoods. Use separator can adjust the fineness of pulverized coal at will; it provides sufficient conditions for full burning of pulverized coal.

7.Fineshed product cooling
The cooling of ceramic sand generally use rotary cooler, it is simple and reliable when working, secondary air of cooler absolutely enter to the kiln, multi-channel burner, can save a lot of energy. The temperature of ceramic sand after cooler is very low, can be touched by hand.

8. Screening
Ceramic sand after the cooler can be directly transported to multistage vibrating screen, it can be divided into many particle grade according to requirements.
Ceramic sand specification
ModelⅠ0.45-0.9mm(20 mesh-40 mesh) high intensity and middle density
ModelⅡ 0.9-1.25mm (16 mesh-20 mesh) high intensity and middle density
Model Ⅲ1.0－1.70mm (12 mesh-18mesh) high intensity and middle density
Model Ⅳ 0.224－0.65mm (40mesh-60mesh) high intensity and middle density

9. Packing
Ceramic sand after screening will be transported to different silos, the silos connected with packing machine, finished products will be transferred to storage house to prepare for delivery.

All dust points in the process need match with dust collector to purification the exhaust air.

ZK can provide complete technology solutions and whole set production equipment for ceramic sand production line of capacity 10000-30000 tons per year. Our professional engineer can make the design according to project situation to save energy consumption by 35%. If you have a demand, please contact us.
