1. Project Overview
Program address: Moldova
Product name: GZ3 Electromagnetic vibration feeder
Capacity: 16-24m³/h
2. Project Description
The customer inquired about the feeder, and after communicating with the customer, it was found that the feed particle size of the customer's raw materials is 20-40mm, and the bulk density is about 400-500kg/m ³, Production requirement of 10m ³/ H. The front-end equipment is the silo, and the back-end equipment is the scraper and bucket elevator. The material is coke blocks, and the feeding amount can be adjusted within a certain range. Due to the variable demand for output from subsequent equipment, the feeding amount can be adjusted. Considering all factors, our technical personnel will choose the GZ3 electromagnetic vibration feeder. This equipment is used to continuously transport materials to the receiving device and can manually adjust the feeding amount. Adopting a thyristor half wave rectification circuit, the feeding amount can be conveniently adjusted by adjusting the thyristor open angle during use, and centralized control of the production process can be achieved.
3. Equipment parameter
SN. |
Item |
Value |
|
1 |
Model |
GZ3 |
|
2 |
Qty |
2 sets |
|
3 |
Equipment dimensions |
574×1325×520mm |
|
4 |
Processing material |
coke |
|
5 |
Bulk density |
0.4-0.5t/m³ |
|
6 |
Feeding size |
≤40mm |
|
7 |
Capacity |
16-24 m³/h |
|
8 |
Power |
0.2kw |
|
9 |
Current |
Working current |
4.58A |
Indicates current |
3.8A |
||
10 |
Voltage |
220V/50Hz |

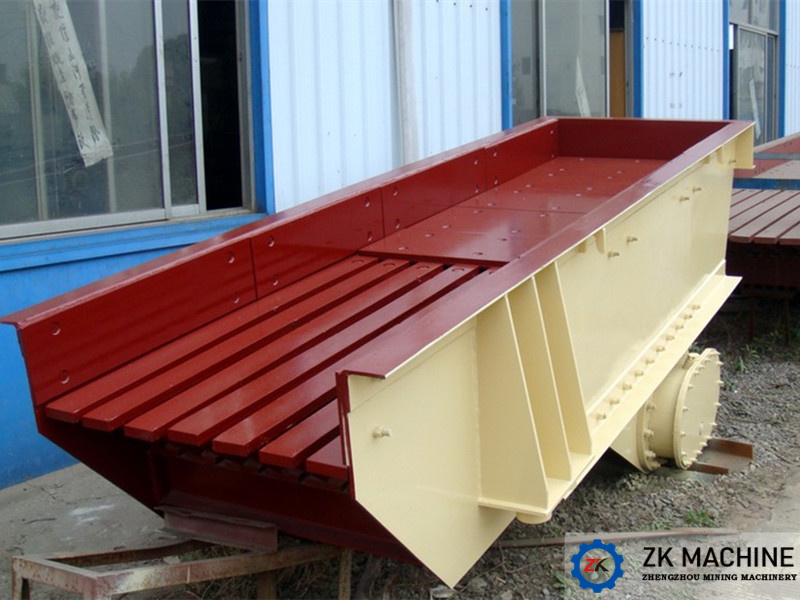

4. Pictures
