Technical Data

Capacity：0.2~8 m³/min

Material: iron, gold, copper, iron ore, etc.

Main Equipment: Flotation machine, Magnetic Separator, High Efficient Thickener, Disc Vacumm Filter, Agitation Tank

Application: Ore Processing plant

OUR ADVANTAGE

1. Rich Project Cases: We have rich project cases on different production process of ore dressing plant, Gold Ore Flotation Process, Gold Mine CIP Process Technology, Gold Ore Heap Leaching Process, Iron Ore Beneficiation Process, Fluorite Mineral Processing Technology, Lead-zinc Ore Dressing Process.

2. High Efficiency

In crushing, it adopts traditional two-stage and a closed circuit system for ideal fineness. Besides, jaw crushers have large crushing capacity.

3. Energy Saving

In grinding and classification, with characteristics of large processing capacity and small floor area, superfine lamination autogenous mill can save energy by more than 85%.

4. Environmental Protection

It adopts the third generation tailings dry stacking technology, which can save energy by 60-80%. Furthermore, it can also protect the environment and build a base for green mine.

1

INTRODUCTION
2

SPECIFICATIONS
3

PROCCESS

Henan Zhengzhou Mining Machinery Co., Ltd. offers complete solutions for Ore Dressing Plant, such as gold ore flotation process, gold mine CIP process, heap leaching, gold ore beneficiation process, flourite mineral processing, lead-zinc ore dressing process. We are one of the leading project suppliers for Ore Dressing Plant and we work closely with our customers to fulfill their specific needs for a customized packaged solution. Specialized in the fabrication of these machines for decade and this enables us to be in a leading position in the field of Ore Dressing Machine.

Raw Material

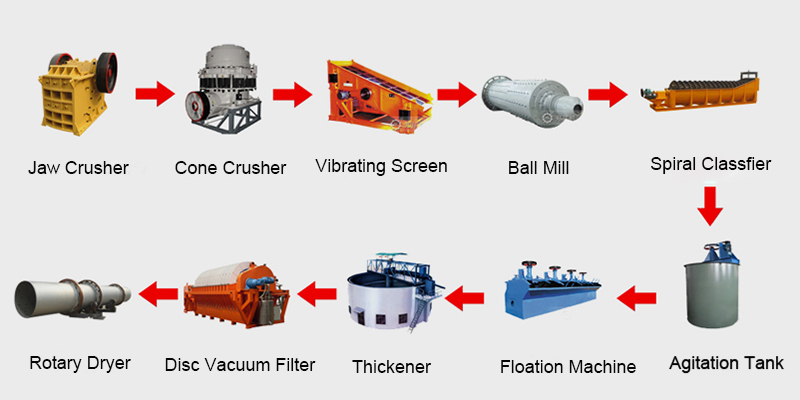

Main Equipment for Ore Dressing Plant

500 TPD Ore Processing Line Equipment List for Your Reference

Equipment	Size	QTY (set)	Power (kW)	Remarks
Chute feeder	980×1240	1	7.5
Jaw crusher	PE400×600	1	30	Cast steel rack
Jaw crusher	PEX250×1000	2	37	Cast steel rack
Swaying feeder	600×600	1	2.2
Rotary ball mill	GM2.1×4.0	1	245
Spiral classifier	FLG-2000	1	18.5
Magnetic separator	CTB900×1800	1	4	2500gs
Magnetic separator	CTB750×1800	2	3	1400~180gs

1000 TPD Ore Processing Line Equipment List for Your Reference

Equipment	Size	QTY (set)	Power (kW)	Remarks
Chute feeder	980×1240	1	7.5
Jaw crusher	PE600×900	1	75	Cast steel rack
Fine jaw crusher	PEX250×1200	2	37	Cast steel rack
Vibrating feeder	DZ-5	2	0.75×2/set
Ball mill	GM2.7×3.6	1	475
Spiral classifier	FLG-3000	1	30
Magnetic separator	CTB-1024	1	5.5	2500gs
Magnetic separator	CTB-1021	2	4/set	1400~1800gs

Production Process

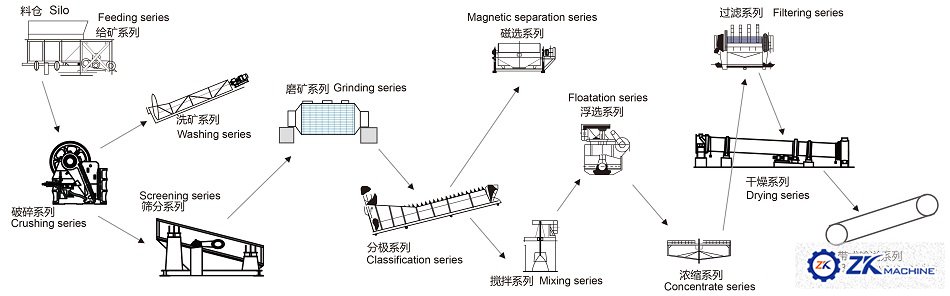

The following is the basic production process of ore dressing plant. For more detailed information about the process, please click here. Click→ Advanced Production Process of Mineral Processing Plant

1. Raw material ores exploited from mountain are in a big size,so it need to be crushed. In the crushing process,the raw materials will be feed into crusher by feeder and then crushed by primary crusher. After that, it should be crushed by secondary crusher. The materials will be fed into screen after crushing process. By screening,the suitable size material (≤25mm) will go to the next step. Oversize(＞25mm) material will go back to secondary crusher to crush again. This forms a closed crush circuit.

2. In this process, material will be grinded into suitable sizes (about 200 mesh) for beneficiation. After grinding, material will be conveyed to classifier. In classifier, suitable size material will go to next step. Coarse material will go back to ball mill for grind again. This process is a closed grind circuit.

3. In this process, materials will be separated by flotation, magnetic separator or gravity concentrating machine. We will get the materials that we need. After beneficiation, there are some residual water in ore concentration. So we have to carry on concentrate dehydration to meet the requirements of transportation and smelting.
